Brand: CommScope
|
SKU:
373-COMOS2-LTAIRL-48

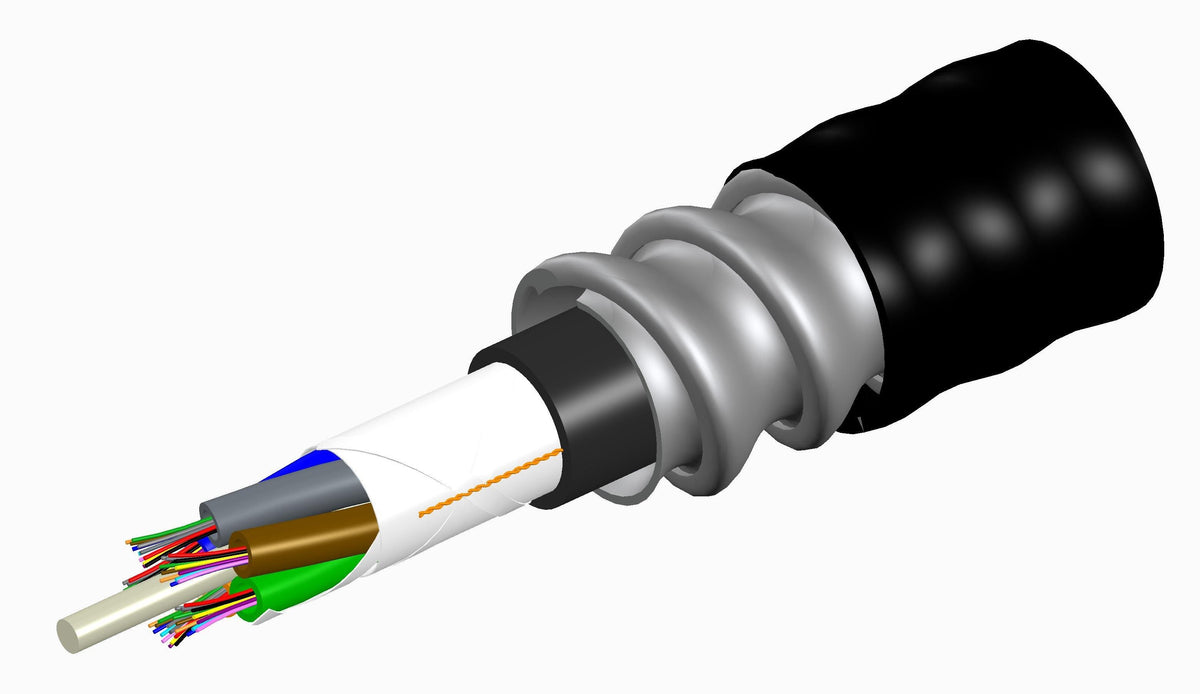

CommScope 760132670 | Fiber indoor/outdoor cable, TeraSPEED Riser Rated, Singlemode G.652.D and G.657.A1, Gel-Free
Regular price
$4.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760132670 | Fiber indoor/outdoor cable, TeraSPEED Riser R...
Regular price
$4.06
Unit price
Brand: CommScope
|
SKU:
373-COMOS2-LTAIRL-48
Regular price
$4.06
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760132670 | Fiber indoor/outdoor cable, TeraSPEED Riser Rated, Singlemode G.652.D and G.657.A1, Gel-Free
Specifications
Specifications
CommScope - 760132670 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760132670 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760132670 | R-048-LZ-8W-F12BK/25D |
| Item Description | Fiber indoor/outdoor cable, TeraSPEED Riser Rated, Singlemode G.652.D and G.657.A1, Gel-Free, 48 fiber, Stranded Loose Tube with Aluminum Interlocking Armor containing a Riser Rated Outer Jacket, Black jacket color, Feet cable marking |
| Armor Type | Interlocking aluminum |
| Cable Type | Stranded loose tube |
| Construction Type | Armored |
| Subunit Type | Gel-free |
| Filler, quantity | 1 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 48 |
CommScope - 760132670 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | R-LZ |
CommScope - 760132670 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Armor | 18.4 mm | 0.724 in |
| Diameter Over Jacket | 20.5 mm | 0.807 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 409 mm | 16.102 in |
| Minimum Bend Radius, unloaded | 286 mm | 11.26 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.12 lbf |
| Compression | 85 N/mm | 485.363 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 35 N-m | 309.776 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 125 m | 410.105 ft |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED |
| | OS2 | OS2 | Environmental Specifications |
| -10 °C to +60 °C (+14 °F to +140 °F) | Operating Temperature |
| -40 °C to +70 °C (-40 °F to +158 °F) | Storage Temperature |
| -40 °C to +75 °C (-40 °F to +167 °F) | Cable Qualification Standards |
| ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409 | Environmental Space |
