Brand: CommScope
|
SKU:
373COMOM1LTALSZH66

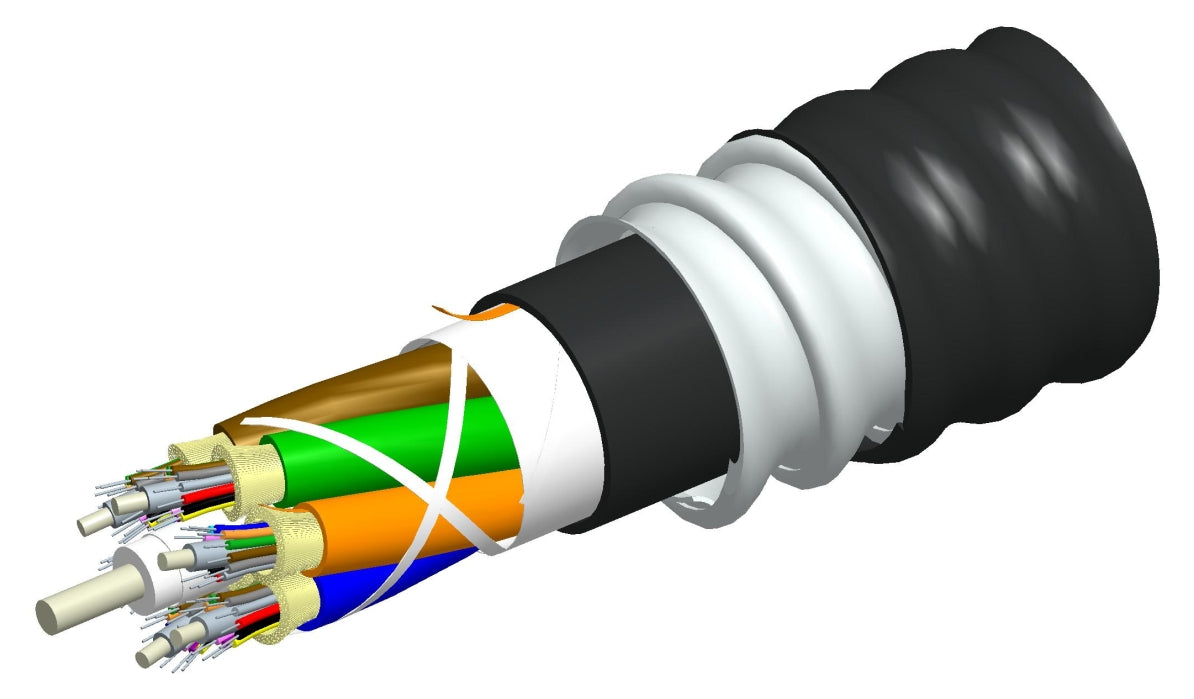

CommScope 760134783 | Fiber indoor/outdoor cable, TeraSPEED Riser/LSZH rated Distribution, interlocking aluminum armored, Multimode/Singlemode
Regular price
$4.30
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760134783 | Fiber indoor/outdoor cable, TeraSPEED Riser/L...
Regular price
$4.30
Unit price
Brand: CommScope
|
SKU:
373COMOM1LTALSZH66
Regular price
$4.30
Unit price
Description
Description
CommScope 760134783 | Fiber indoor/outdoor cable, TeraSPEED Riser/LSZH rated Distribution, interlocking aluminum armored, Multimode/Singlemode
Specifications
Specifications
CommScope - 760134783 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760134783 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760134783 | Z-012-DZ-CM-FSUBK/8W006/6F006/B2 |
| Item Description | Fiber indoor/outdoor cable, TeraSPEED Riser/LSZH rated Distribution, interlocking aluminum armored, Multimode/Singlemode, 12 fiber single-unit, Feet jacket marking, Black jacket color, B2ca flame rating |
| Armor Type | Interlocking aluminum |
| Cable Type | Distribution |
| Construction Type | Armored |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Composite Fiber Count | 6 + 6 |
| Total Fiber Count | 12 |
CommScope - 760134783 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | Z-DZ |
CommScope - 760134783 - Physical Specifications
| Dimensions | - |
|---|---|
| Diameter Over Armor | 12.07 mm | 0.475 in |
| Diameter Over Jacket | 14.1 mm | 0.555 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 211 mm | 8.307 in |
| Minimum Bend Radius, unloaded | 141 mm | 5.551 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.12 lbf |
| Compression | 85 N/mm | 485.363 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 35 N-m | 309.776 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 229 m | 751.312 ft |
| Optical Specifications | - |
| Fiber Type | Composite MM/SM | G.652.D and G.657.A1, TeraSPEED |
| Environmental Specifications | - |
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-20 (water penetration for internal cable) | Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1a |
| EN50575 CPR Cable EuroClass Droplets Rating | d0 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
