Brand: CommScope
|
SKU:
372-COMOS2-LTA-72-M

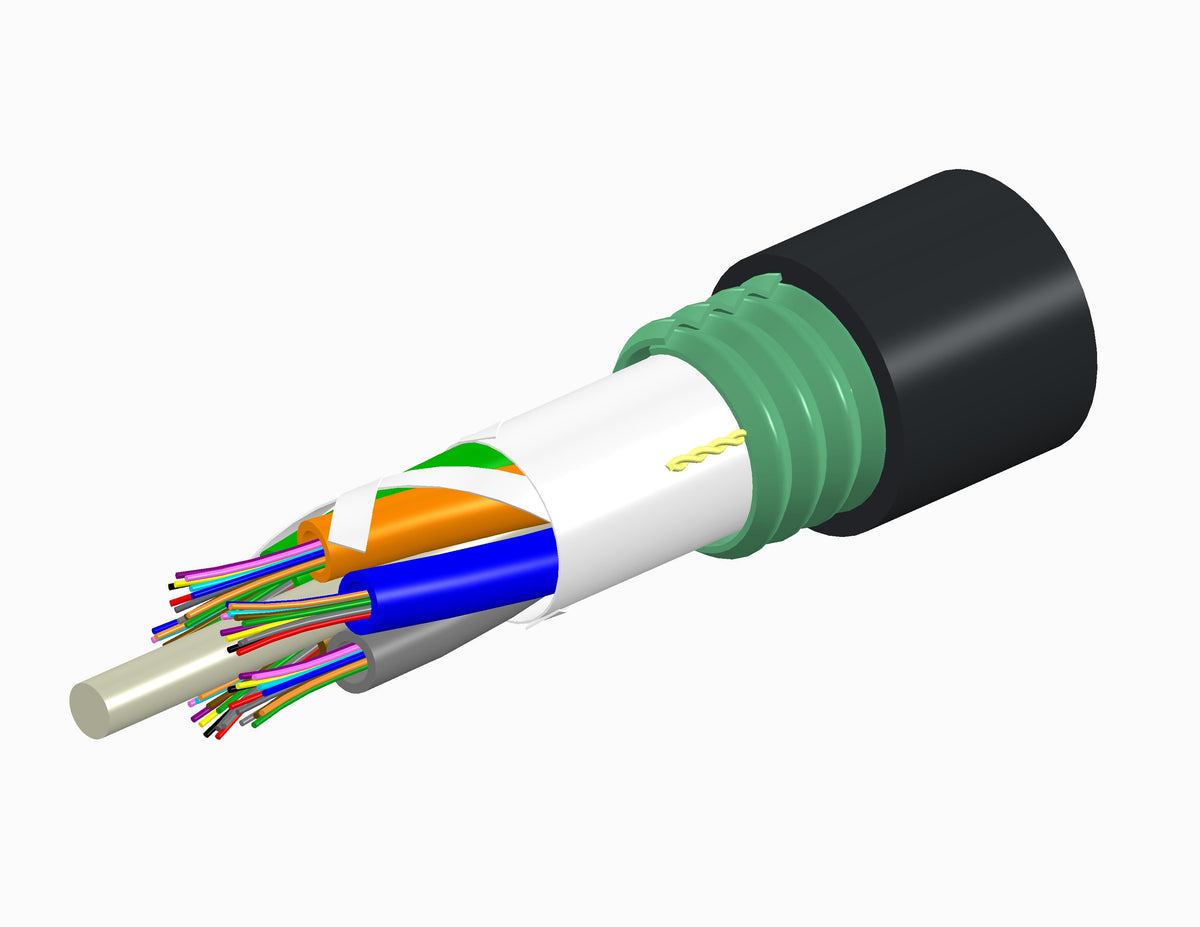

CommScope 760135236 | Fiber OSP cable, TeraSPEED Single Jacket/Single Armor, 72 fiber, Gel-Free, Stranded Loose Tube
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760135236 | Fiber OSP cable, TeraSPEED Single Jacket/Sing...
Regular price
$3.00
Unit price
Brand: CommScope
|
SKU:
372-COMOS2-LTA-72-M
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760135236 | Fiber OSP cable, TeraSPEED Single Jacket/Single Armor, 72 fiber, Gel-Free, Stranded Loose Tube
Specifications
Specifications
CommScope - 760135236 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760135236 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760135236 | D-072-LA-8W-M12NS |
| Item Description | Fiber OSP cable, TeraSPEED Single Jacket/Single Armor, 72 fiber, Gel-Free, Stranded Loose Tube, Singlemode G.652.D and G.657.A1, Meters jacket marking, Black jacket color |
| Armor Type | Corrugated steel |
| Cable Type | Stranded loose tube |
| Construction Type | Armored |
| Subunit Type | Gel-free |
| Jacket Color | Black |
| Jacket Marking | Meters |
| Subunit, quantity | 6 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 72 |
CommScope - 760135236 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber OSP cable |
| Product Series | D-LA |
CommScope - 760135236 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 11.8 mm | 0.465 in |
| Material Specifications | - |
| Jacket Material | PE |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 177 mm | 6.969 in |
| Minimum Bend Radius, unloaded | 118 mm | 4.646 in |
| Tensile Load, long term, maximum | 800 N | 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N | 606.984 lbf |
| Compression | 44 N/mm | 251.246 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 4.41 N-m | 39.032 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 678 m | 2224.41 ft |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED |
| Environmental Specifications | - |
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-87-640 | EN 187105 |
| Environmental Space | Aerial, lashed | Buried |
