Brand: CommScope
|
SKU:
371-COMOM5-TBA-12

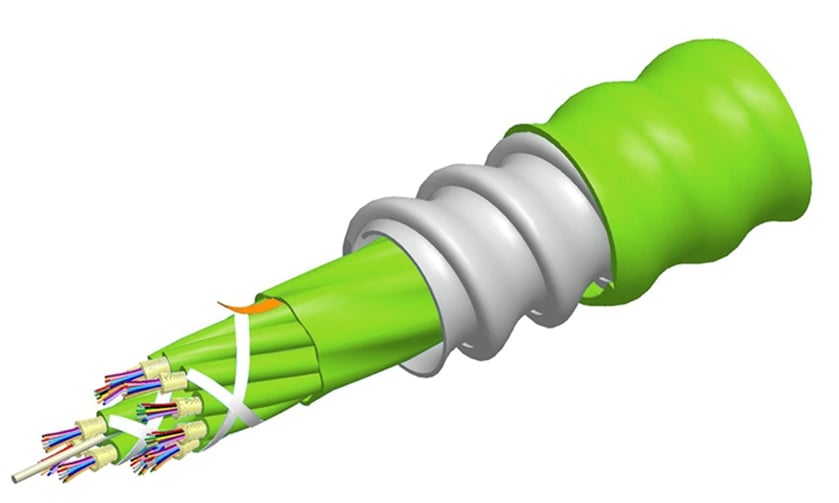

CommScope 760229872 | Fiber indoor cable, LazrSPEED Riser Distribution Interlocking Aluminum Armored with Riser Jacket 12-Fiber Single-Unit, Gel-free
Regular price
$7.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760229872 | Fiber indoor cable, LazrSPEED Riser Distribut...
Regular price
$7.17
Unit price
Brand: CommScope
|
SKU:
371-COMOM5-TBA-12
Regular price
$7.17
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760229872 | Fiber indoor cable, LazrSPEED Riser Distribution Interlocking Aluminum Armored with Riser Jacket 12-Fiber Single-Unit, Gel-free
Specifications
Specifications
CommScope - 760229872 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760229872 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760229872 | R-012-DZ-5G-FSULM |
| Item Description | Fiber indoor cable, LazrSPEED Riser Distribution Interlocking Aluminum Armored with Riser Jacket 12-Fiber Single-Unit, Gel-free, Multimode OM5, Feet jacket marking, Lime green jacket color |
| Armor Type | Interlocking aluminum |
| Cable Type | Distribution |
| Construction Type | Armored |
| Subunit Type | Gel-free |
| Jacket Color | Lime green |
| Jacket Marking | Feet |
| Total Fiber Count | 12 |
CommScope - 760229872 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor cable |
| Product Series | R-DZ |
CommScope - 760229872 - Physical Specifications
| Dimensions | - |
|---|---|
| Diameter Over Armor | 10.8 mm | 0.425 in |
| Diameter Over Jacket | 12.8 mm | 0.504 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 192 mm | 7.559 in |
| Minimum Bend Radius, unloaded | 128 mm | 5.039 in |
| Tensile Load, long term, maximum | 200 N | 44.962 lbf |
| Tensile Load, short term, maximum | 667 N | 149.948 lbf |
| Compression | 85 N/mm | 485.363 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 35 N-m | 309.776 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 140 m | 459.318 ft |
| Optical Specifications | - |
| Fiber Type | OM5, LazrSPEED |
| wideband | OM5, LazrSPEED | wideband |
| Environmental Specifications | - |
| Installation temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 | Telcordia GR-409 |
| Environmental Space | Riser |
| Flame Test Listing | NEC OFCR (ETL) and c(ETL) |
| Flame Test Method | UL 1666 |
