CommScope 760235078 | Micro Duct Cable Closure Kit for 26-Way Micro...
Regular price
$105.99
Unit price
Brand: CommScope
|
SKU:
10115852
Regular price
$105.99
Unit price
Description
Description

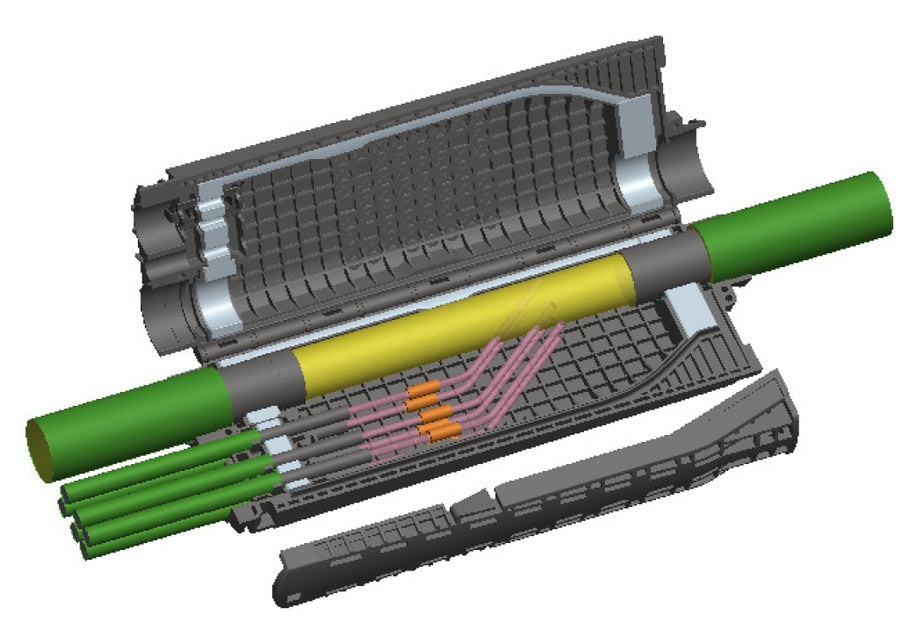

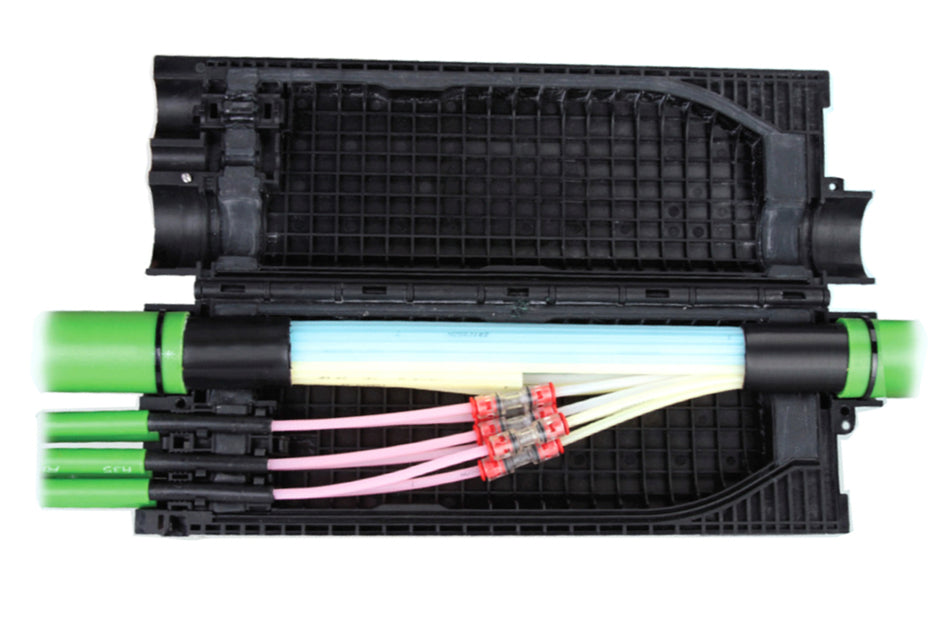

CommScope 760235078 | Micro Duct Cable Closure Kit for 26-Way Micro Duct
CommScope - 760235078 - Features
- Waterproof closure for micro duct Cable connections in outside plant networks
- Fast and easy installation and re-entry process with the gel-sealing system
- No special tools or sealing replacement material required for installation and re-entry
Specifications
Specifications
CommScope - 760235078 - Dimension Drawing
| Click on image to enlarge. |
|---|
CommScope - 760235078 - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Micro duct Cable closure |
| Product Series | MDCC |
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Round |
| Cable Ports, quantity | 5 |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Hinged with wedge |
| Closure Style | In-line |
| Color | Black |
| Mounting | Wall |
| Network Area Type | Distribution |
| Height | 50 mm | 1.969 in |
| Width | 135 mm | 5.315 in |
| Length | 320 mm | 12.598 in |
| Main Cable Diameter, maximum | 35 mm | 1.378 in |
| Material Type | Rugged polymer |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 0.8 kg | 1.764 lb |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
