Brand: CommScope
|
SKU:
10403138-RPA

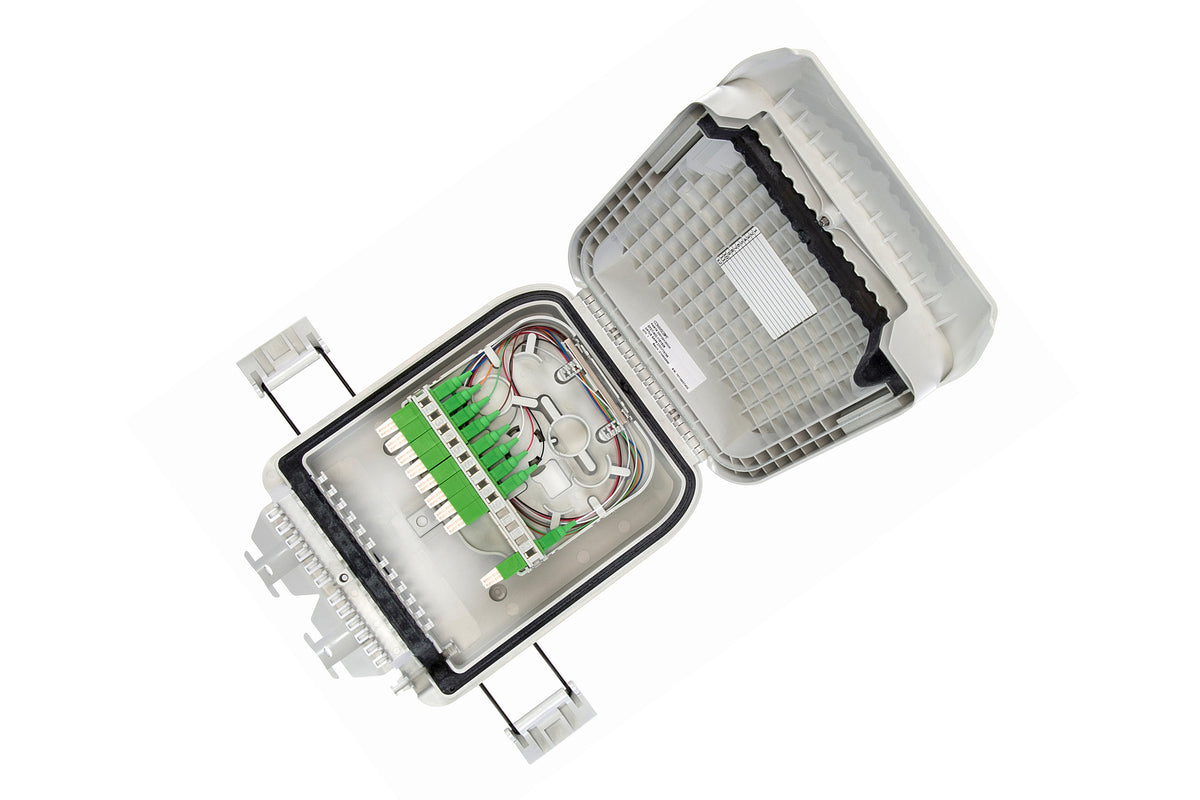

CommScope 760235625 | RapidFiber EFDT NID Wall Mounting Fiber Box, outdoor, 12 SC/APC, 8-way splitter
Regular price
$292.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760235625 | RapidFiber EFDT NID Wall Mounting Fiber Box, ...
Regular price
$292.45
Unit price
Brand: CommScope
|
SKU:
10403138-RPA
Regular price
$292.45
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760235625 | RapidFiber EFDT NID Wall Mounting Fiber Box, outdoor, 12 SC/APC, 8-way splitter
Specifications
Specifications
CommScope - 760235625 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Wall Boxes & Accessories
- Wall Boxes
CommScope - 760235625 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Fiber wall box |
| Product Brand | RapidFiber |
| Product Series | EFDT |
CommScope - 760235625 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | RapidFiber EFDT NID Wall Mounting Fiber Box, outdoor, 12 SC/APC, 8-way splitter |
| Model Number | 760235625 | EFDT-NID-1181S28 |
| Functionality | Patching | Splitting |
| Access | Front |
| Distribution Type | 1 x 8 splitter |
| Enclosure Color | Gray |
| Front Cover Type | Hinged with lock |
| Interface | SC/APC |
| Mounting | Wall |
| Port, quantity | 12 |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
CommScope - 760235625 - Additional Information
| Dimensions | - |
|---|---|
| Height | 264.16 mm | 10.4 in |
| Width | 179.07 mm | 7.05 in |
| Depth | 71.12 mm | 2.8 in |
| Material Specifications | - |
| Enclosure Material Type | LSZH thermoplastic |
| Optical Specifications | - |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, Splitter, maximum | 11 dB |
| Return Loss, Connector, minimum | 55 dB |
| Environmental Specifications | - |
| Environmental Space | Outdoor |
| Qualification Standards | IEC 60529, IP55 | IEC 61753-1, category G |
