Brand: CommScope
|
SKU:
977473

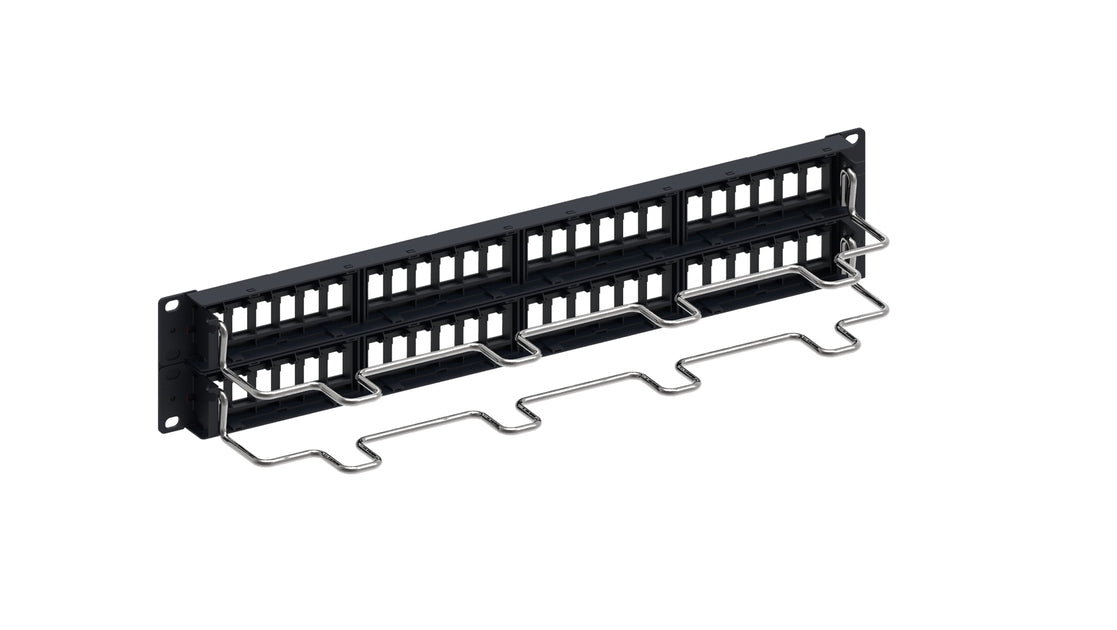

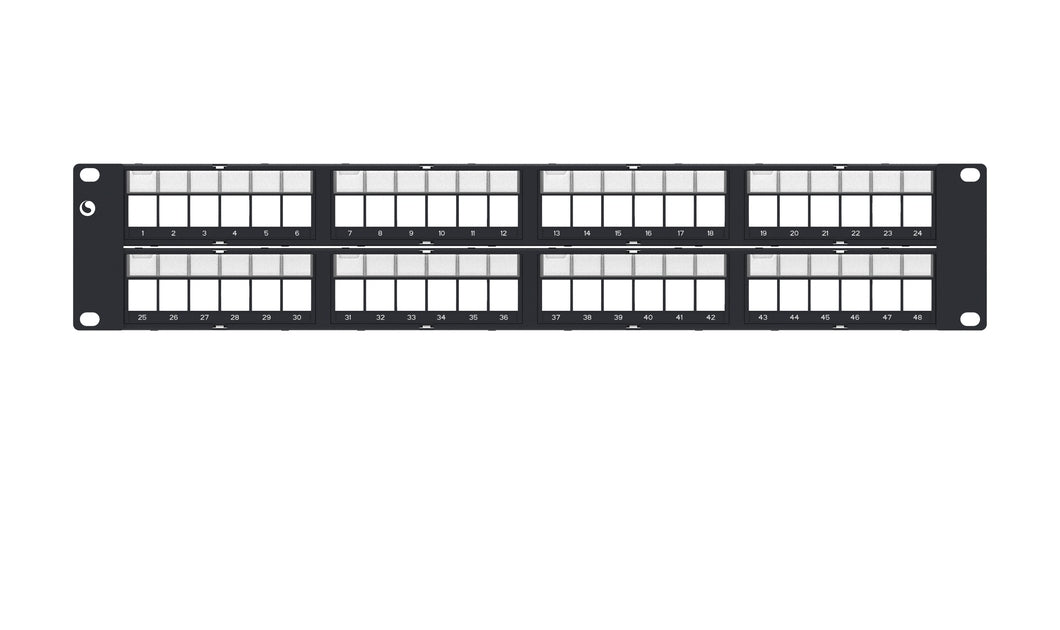

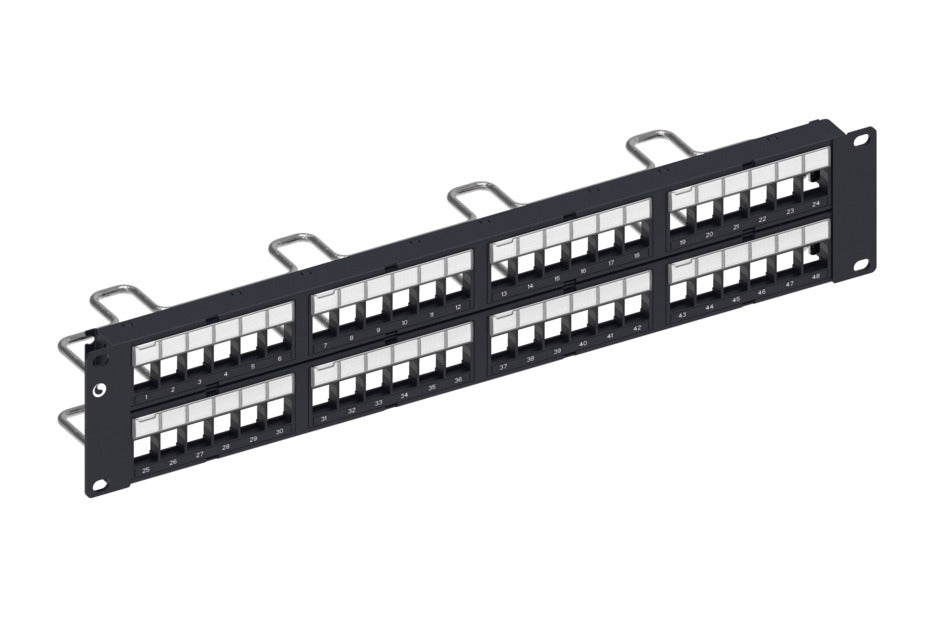

CommScope 760237041 | Unshielded Discrete Distribution Module Panel, SL, 2U, 48 Port, Black
Regular price
$137.94
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760237041 | Unshielded Discrete Distribution Module Panel...
Regular price
$137.94
Unit price
Brand: CommScope
|
SKU:
977473
Regular price
$137.94
Unit price
Description
Description
CommScope 760237041 | Unshielded Discrete Distribution Module Panel, SL, 2U, 48 Port, Black
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | RJ45 patch panel |
General Specifications
| ANSI/TIA Category | 5e / 6 / 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Black |
| Modules, quantity | 0 |
| Panel Style | Straight |
| Rack Type | EIA 19 in |
| Rack Units | 2 |
| Total Ports, quantity | 48 |
Dimensions
| Height | 88.9 mm / 3.5 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth, with cable management | 119.38 mm / 4.7 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic / Powder-coated steel |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | RCM / UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
