Brand: CommScope
|
SKU:
37C-COMOS2-RCTDA-576

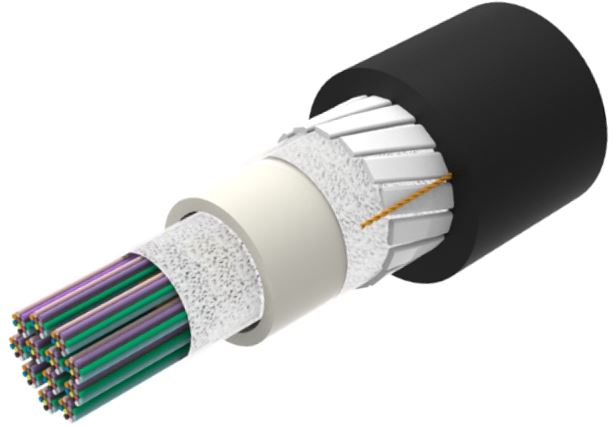

CommScope 760239024 | Fiber indoor/outdoor cable, All-Dielectric, LSZH Riser-Rated, Gel-Free
Regular price
$22.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760239024 | Fiber indoor/outdoor cable, All-Dielectric, L...
Regular price
$22.78
Unit price
Brand: CommScope
|
SKU:
37C-COMOS2-RCTDA-576
Regular price
$22.78
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760239024 | Fiber indoor/outdoor cable, All-Dielectric, LSZH Riser-Rated, Gel-Free
Specifications
Specifications
CommScope - 760239024 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760239024 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760239024 | Z-576-CN-RR-F12BK/8G/99G/C |
| Item Description | Fiber indoor/outdoor cable, All-Dielectric, LSZH Riser-Rated, Gel-Free, Central Tube Rollable Ribbon, 576 fiber, Singlemode G.657.A2/B2, Feet jacket marking, Black jacket color, Cca flame rating |
| Cable Type | Ribbon central tube |
| Construction Type | Non-armored |
| Subunit Type | Gel-free |
| Fibers per Ribbon, quantity | 12 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Total Fiber Count | 576 |
CommScope - 760239024 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | Z-CN |
CommScope - 760239024 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 12 mm | 0.472 in |
| Diameter Over Jacket | 17 mm | 0.669 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 340 mm | 13.386 in |
| Minimum Bend Radius, unloaded | 127 mm | 5 in |
| Tensile Load, long term, maximum | 800 N | 179.847 lbf |
| Tensile Load, short term, maximum | 2670 N | 600.24 lbf |
| Compression | 10 N/mm | 57.101 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 2.94 N-m | 26.021 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Optical Specifications | - |
| Fiber Type | G.657.A2/B2 | G.657.A2/B2 |
| Environmental Specifications | - |
| Installation temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | Cca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1b |
| EN50575 CPR Cable EuroClass Droplets Rating | d0 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Aerial, lashed | Buried | Low Smoke Zero Halogen (LSZH) | Riser |
