Brand: CommScope
|
SKU:
FB-000669

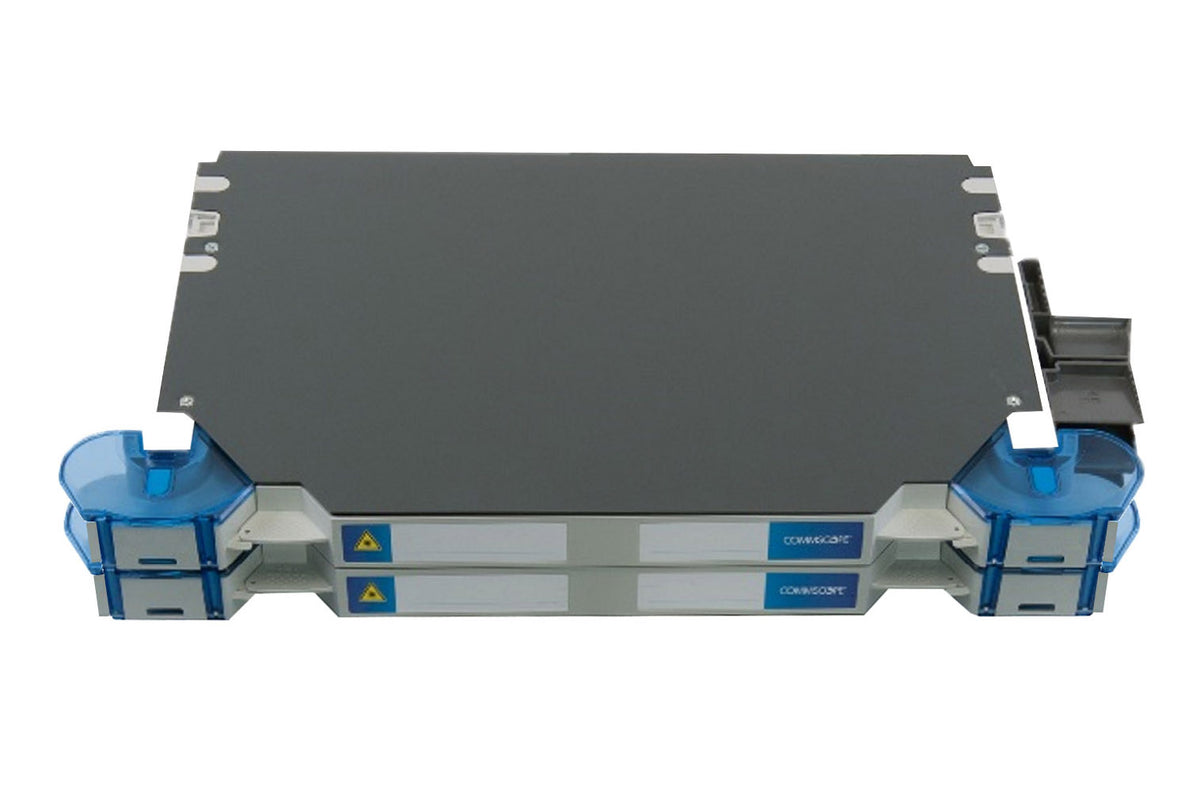

CommScope 760239961 | FACT Fiber Optic Splice Panel, gray, 2E high, loaded with 24 trays for holding up to 4 SMOUV type splices per tray
Regular price
$614.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760239961 | FACT Fiber Optic Splice Panel, gray, 2E high,...
Regular price
$614.12
Unit price
Description
Description
CommScope 760239961 | FACT Fiber Optic Splice Panel, gray, 2E high, loaded with 24 trays for holding up to 4 SMOUV type splices per tray
Specifications
Specifications
CommScope - 760239961 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
- Fiber Panels
CommScope - 760239961 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber splice panel |
| Product Brand | FACT |
| Product Series | FACT |
CommScope - 760239961 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FACT Fiber Optic Splice Panel, gray, 2E high, loaded with 24 trays for holding up to 4 SMOUV type splices per tray |
| Model Number | 760239961 | FACT-2ESPLS04 |
| Functionality | Splicing |
| Application | Compatible with FIST-GR3-style frames |
| Body Style | Symmetrical |
| Color | Gray |
| Growth Configuration | Fully loaded |
| Interface, front | Unloaded |
| Rack Type | EIA 19 in |
| Rack Units | 1.4 |
| Shelf Movement | Sliding |
| Splicing Capacity, maximum | 96 |
| Splicing Type | SMOUV |
| Total Ports, quantity | 0 |
| Transmission Standards | ETSI EN 300 019-1-3 | IEC 61300-3-30 |
CommScope - 760239961 - Additional Information
| Dimensions | - |
|---|---|
| Height | 61.9 mm | 2.437 in |
| Width | 524 mm | 20.63 in |
| Depth | 283 mm | 11.142 in |
| Environmental Specifications | - |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -20 °C to +85 °C (-4 °F to +176 °F) |
| Flammability Rating | UL 94 V-0 |
| Packaging and Weights | - |
| Included | Mounting hardware |
| Packaging quantity | 1 |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
