Brand: CommScope
|
SKU:
9873934

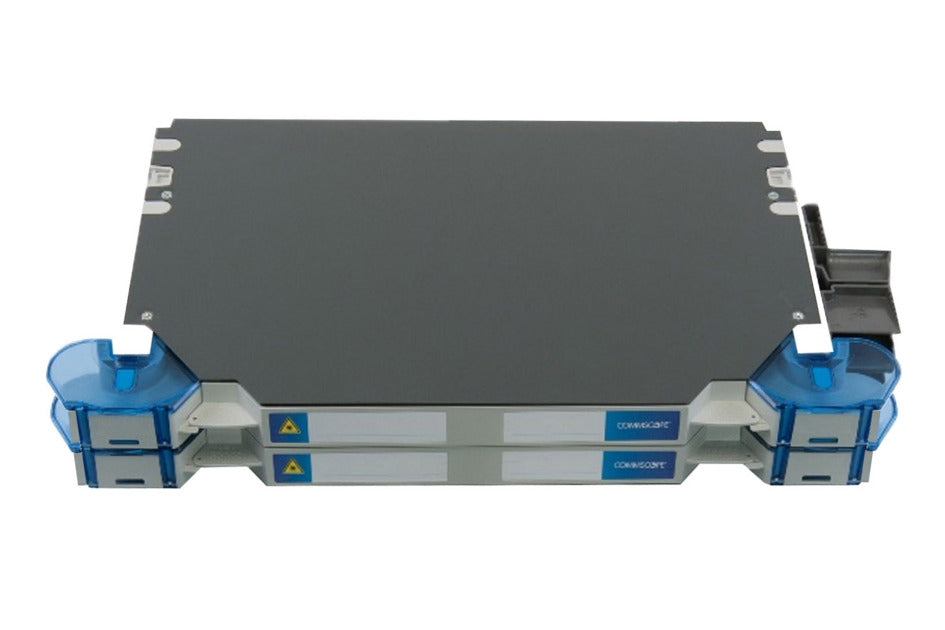

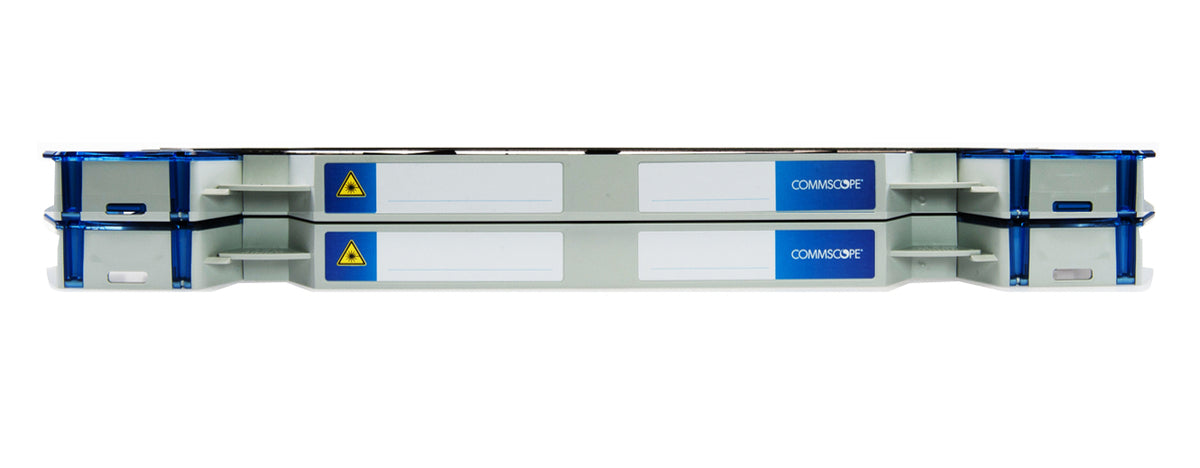

CommScope 760239976 | NG4 Fiber Chassis, Gray with 4 Unloaded Trays, 2E High, for Holding 8 NG4 Adapter Packs
Regular price
$854.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760239976 | NG4 Fiber Chassis, Gray with 4 Unloaded Trays...
Regular price
$854.07
Unit price
Description
Description
CommScope 760239976 | NG4 Fiber Chassis, Gray with 4 Unloaded Trays, 2E High, for Holding 8 NG4 Adapter Packs
CommScope - 760239976 - Features
- Designed for use with the all-purpose all-front-access FACT frames and FIST-GR3 frames supporting up to 2,688 LC or 1,344 SC connections in a single frame (FACT-IC frame 2880 LC or 1440 SC)
- Reduced installation and maintenance time via the toolless snap-on design supporting both interconnect and cross-connect applications
- Flexible customization enabled by 4 chassis types (patch-only, patch-splice, pre-Cabled and splice-only) to support all ODF applications
- High density through the single FACT element height (1E) being 30% less tall compared to the industry standard panel height (1HU)
Specifications
Specifications
CommScope - 760239976 - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Fiber VAM chassis | Fiber patch chassis |
| Product Brand | FACT® |
| Product Series | FACT |
| Functionality | Multiplexing | Patching | Splitting |
| Application | Compatible with FIST-GR3-style frames |
| Body Style | Symmetrical |
| Color | Gray |
| Growth Configuration | Unloaded |
| Interface, front | Unloaded |
| Patch Cord Routing | Left sided | Right sided |
| Rack Type | EIA 19 in |
| Rack Units | 1.4 |
| Shelf Movement | Sliding |
| Splicing Capacity, maximum | 0 |
| Height | 61.9 mm | 2.437 in |
| Width | 524 mm | 20.63 in |
| Depth | 283 mm | 11.142 in |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -20 °C to +85 °C (-4 °F to +176 °F) |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
