Brand: CommScope
|
SKU:
1019730

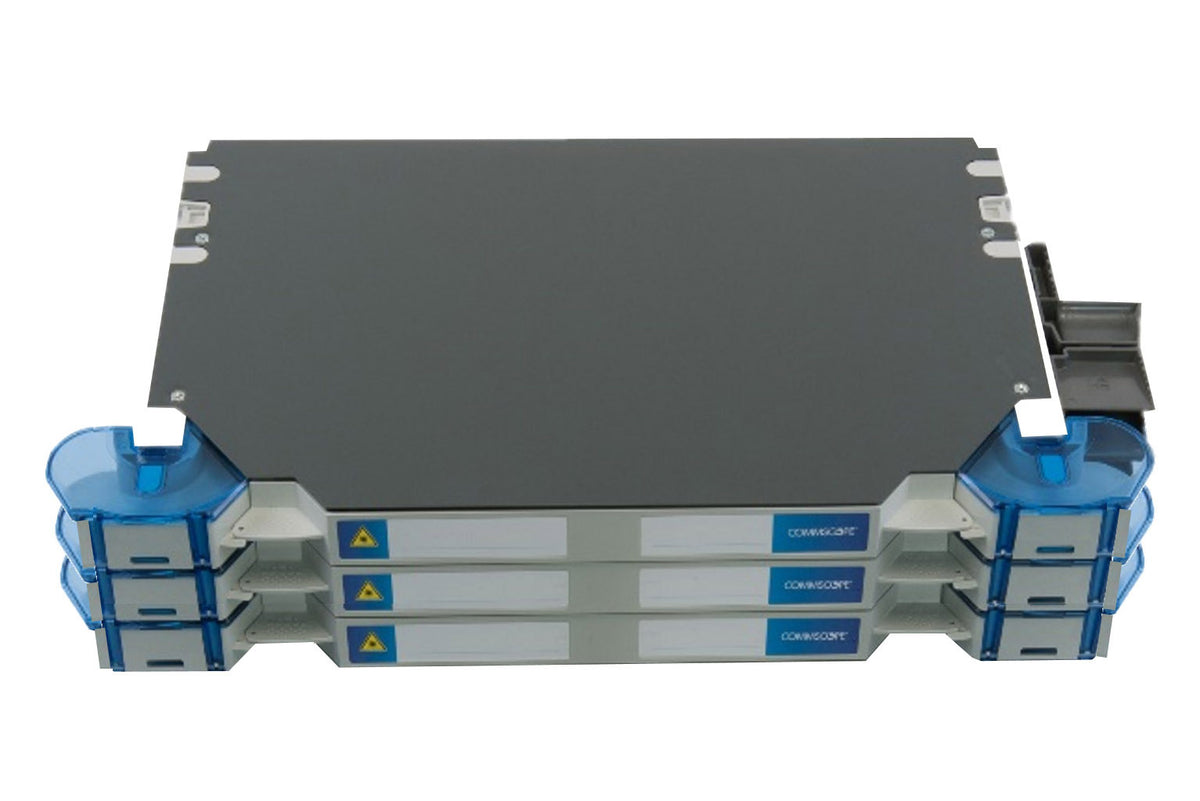

CommScope 760240007 | FACT Fiber Optic Patch/Splice Panel, gray, 3E high, 144-port, singlemode
Regular price
$3,516.42
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760240007 | FACT Fiber Optic Patch/Splice Panel, gray, 3E...
Regular price
$3,516.42
Unit price
Brand: CommScope
|
SKU:
1019730
Regular price
$3,516.42
Unit price
Description
Description
CommScope 760240007 | FACT Fiber Optic Patch/Splice Panel, gray, 3E high, 144-port, singlemode
Specifications
Specifications
CommScope - 760240007 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
- Fiber Panels
CommScope - 760240007 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber patch/splice panel |
| Product Brand | FACT |
| Product Series | FACT |
CommScope - 760240007 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FACT Fiber Optic Patch/Splice Panel, gray, 3E high, 144-port, singlemode, loaded with LC/UPC adapters and C-grade pigtails, SMOUV splice tray type, left-hand patch |
| Model Number | 760240007 | FACT-3ELHPL1S |
| Functionality | Patching | Splicing |
| Application | Compatible with FIST-GR3-style frames |
| Body Style | Left-hand patch |
| Color | Gray |
| Growth Configuration | Fully loaded |
| Interface, front | LC/UPC |
| Patch Cord Routing | Left sided |
| Pigtail Assembly Type | 12-fiber, stranded |
| Pigtails Included, quantity | 144 |
| Rack Type | EIA 19 in |
| Rack Units | 2.1 |
| Shelf Movement | Sliding |
| Splicing Capacity, maximum | 144 |
| Splicing Type | SMOUV |
| Total Ports, quantity | 144 |
| Transmission Standards | ETSI EN 300 019-1-3 | IEC 61300-3-30 |
CommScope - 760240007 - Additional Information
| Dimensions | - |
|---|---|
| Height | 92.85 mm | 3.656 in |
| Width | 524 mm | 20.63 in |
| Depth | 283 mm | 11.142 in |
| Optical Specifications | - |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A1 |
| Performance Grade | Standard C grade |
| Insertion Loss, maximum | 0.5 dB |
| Return Loss, minimum | 50 dB |
| Environmental Specifications | - |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -20 °C to +85 °C (-4 °F to +176 °F) |
| Flammability Rating | UL 94 V-0 |
| Packaging and Weights | - |
| Included | Mounting hardware |
| Packaging quantity | 1 |
