Brand: CommScope
|
SKU:
9807858-DEMO

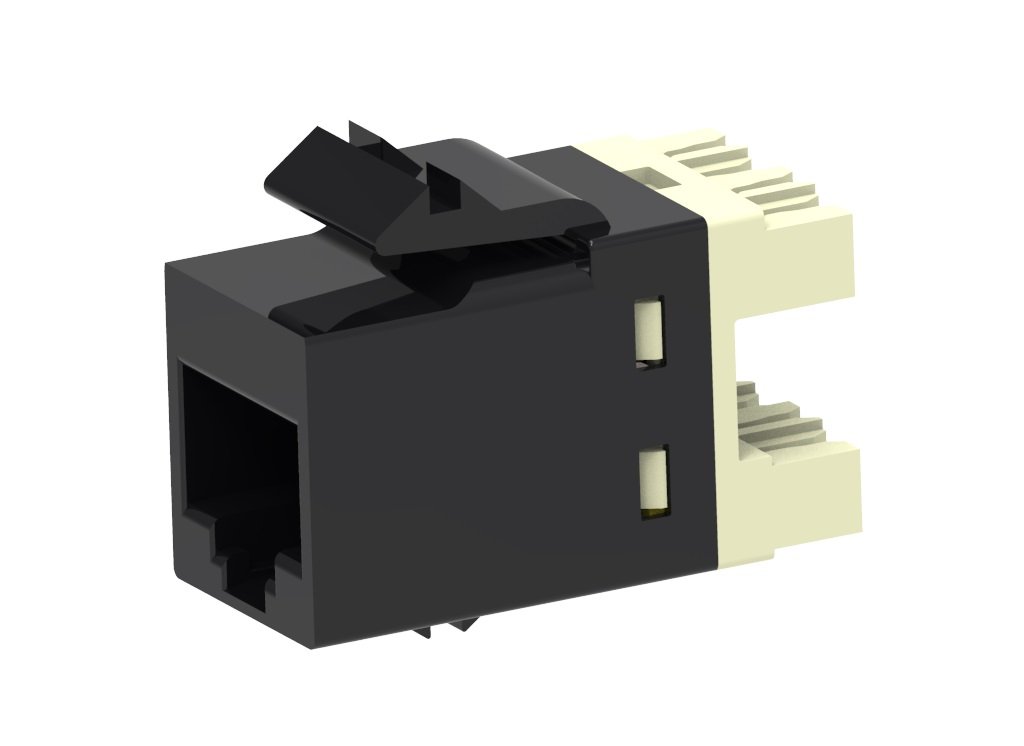

Commscope 760241185 | NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, black
Regular price
$9.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 760241185 | NETCONNECT SL 110 Series Modular Jack, RJ45, ...
Regular price
$9.56
Unit price
Brand: CommScope
|
SKU:
9807858-DEMO
Regular price
$9.56
Unit price
Shipping calculated at checkout.
Description
Description
NETCONNECT SL 110 Series Modular Jack, RJ45, category 6A, T568A/T568B, unshielded, no dust cover, black
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America |
|---|---|
| Portfolio | NETCONNECT |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Black |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
Dimensions
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
|---|---|
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 16.13 mm | 0.635 in |
Electrical Specifications
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|---|
Material Specifications
| Contact Base Material | Beryllium copper |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Copper alloy | High-impact, flame retardant, thermoplastic | Polycarbonate |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
Documents and Downloads
Documents and Downloads
- Commscope 760241185 | SL10G-BLK SL10G_KJ10G_Connecting_Hardware_ISO_IEC
- Commscope 760241185 | SL10G-BLK 4-Connector_unshld_SL10G_CS41CM-HC_NPC6AU-Cord_Long
- Commscope 760241185 | SL10G-BLK 4-Connector_unshld_SL10G_CS41R-HC_NPC6AU-Cord_Long
- Commscope 760241185 | SL10G-BLK 4-Connector_unshld_SL10G_CS41Z1-HC_NPC6AU-Cord_Long
