Brand: CommScope
|
SKU:
10504858
CommScope 760242087 | Fact NG4 Fiber Chassis, Gray with 12 Unloaded Trays, 6E High
Regular price
$3,497.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760242087 | Fact NG4 Fiber Chassis, Gray with 12 Unloaded...
Regular price
$3,497.90
Unit price
Brand: CommScope
|
SKU:
10504858
Regular price
$3,497.90
Unit price
Shipping calculated at checkout.
Description
Description

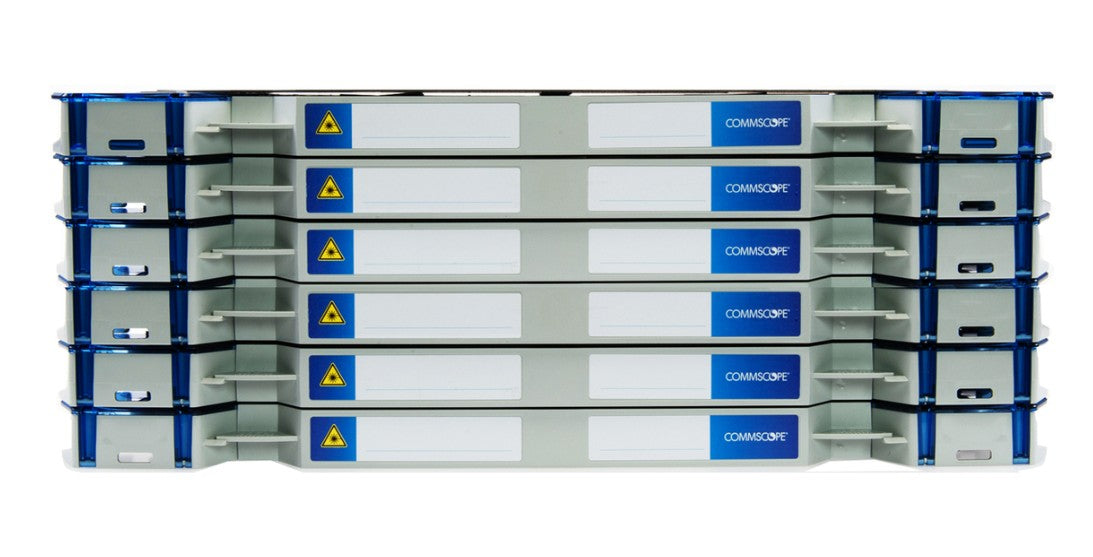

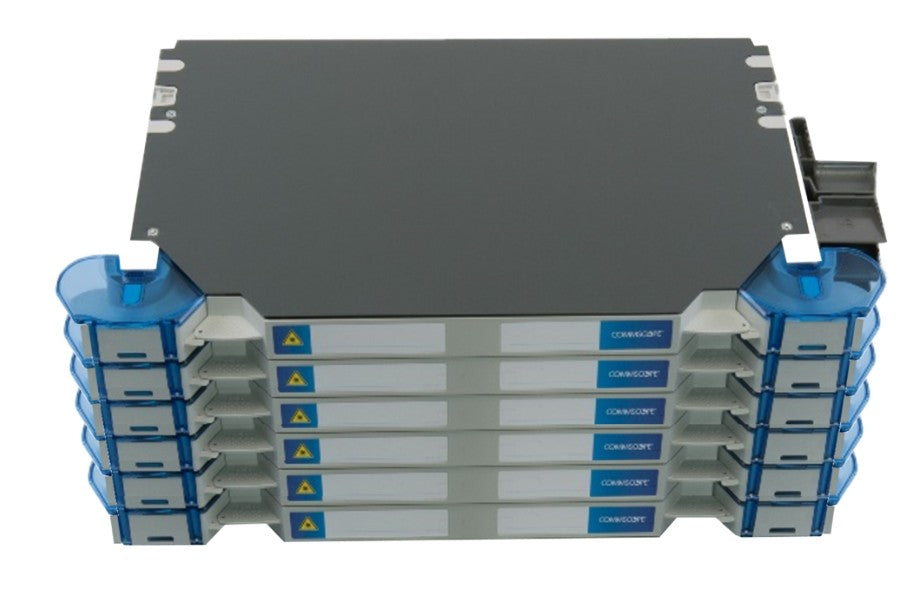

CommScope 760242087 | Fact NG4 Fiber Chassis, Gray with 12 Unloaded Trays, 6E High
Fact NG4 Fiber Chassis, gray with 12 unloaded trays, 6E high, for holding 24 NG4 adapter packs or 24 NG4 MPO modules or 12 NG4 cabled LC/SC modules or 12 NG4 value added modules.
CommScope - 760242087 - Features
- Designed for use with the all-purpose all-front-access FACT frames and FIST-GR3 frames supporting up to 2,688 LC or 1,344 SC connections in a single frame (FACT-IC frame 2880 LC or 1440 SC)
- Reduced installation and maintenance time via the toolless snap-on design supporting both interconnect and cross-connect applications
- Flexible customization enabled by 4 chassis types (patch-only, patch-splice, pre-cabled and splice-only) to support all ODF applications
- High density through the single FACT element height (1E) being 30% less tall compared to the industry standard panel height (1HU)
Specifications
Specifications
CommScope - 760242087 - Specifications
| Portfolio | CommScope® |
|---|---|
| Product Type | Fiber VAM chassis | Fiber patch chassis |
| Product Brand | FACT® |
| Functionality | Multiplexing | Patching | Splitting |
| Application | Compatible with FIST-GR3-style frames |
| Body Style | Symmetrical |
| Color | Gray |
| Growth Configuration | Unloaded |
| Interface, front | Unloaded |
| Patch Cord Routing | Left sided | Right sided |
| Rack Type | EIA 19 in |
| Rack Units | 4.2 |
| Shelf Movement | Sliding |
| Height | 185.7 mm | 7.311 in |
| Width | 524 mm | 20.63 in |
| Depth | 283 mm | 11.142 in |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -20 °C to +85 °C (-4 °F to +176 °F) |
| Flammability Rating | UL 94 V-0 |
| Included | Mounting hardware for FACT frame |
