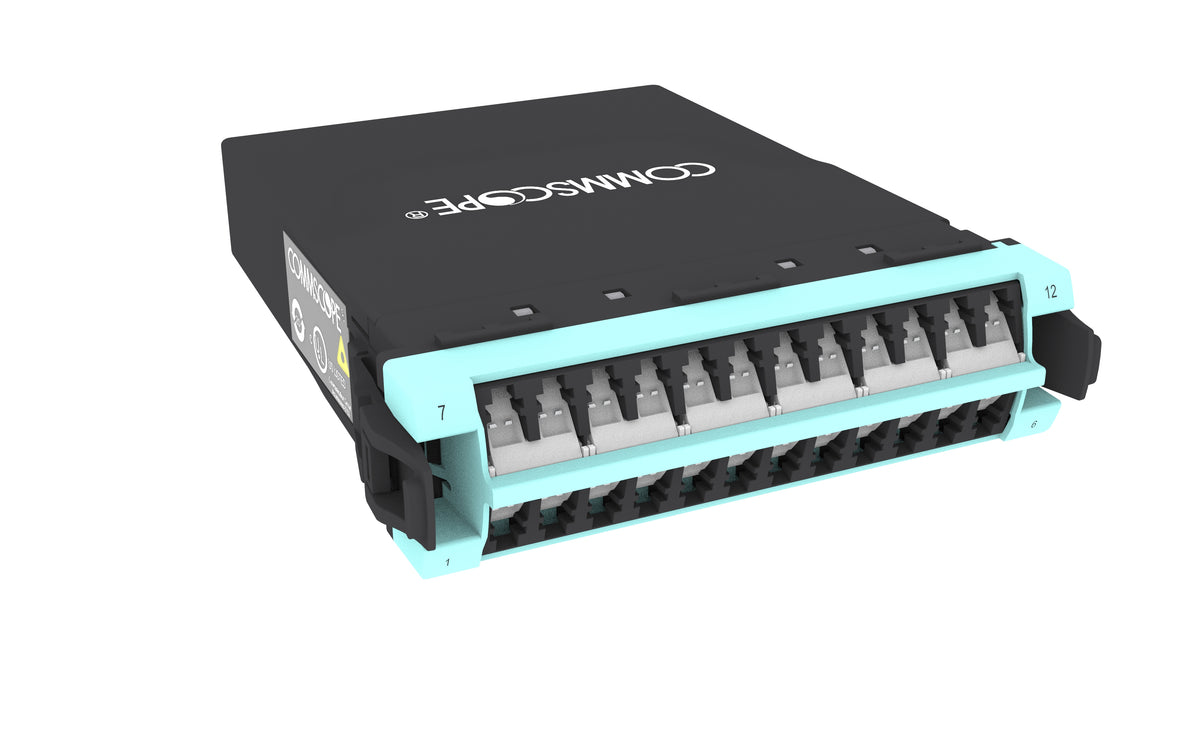

CommScope 760242496 | G2 MPOptimate Multimode OM4 MPO-12 Distribution Module, 24LC to 2x12f MPO's pinned, internal shutters
Regular price
$1,093.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760242496 | G2 MPOptimate Multimode OM4 MPO-12 Distributi...
Regular price
$1,093.61
Unit price
Brand: CommScope
|
SKU:
10313345
Regular price
$1,093.61
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760242496 | G2 MPOptimate Multimode OM4 MPO-12 Distribution Module, 24LC to 2x12f MPO's pinned, internal shutters
Specifications
Specifications
CommScope - 760242496 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
- Fiber Modules
CommScope - 760242496 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Series | G2 |
CommScope - 760242496 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | G2 MPOptimate Multimode OM4 MPO-12 Distribution Module, 24LC to 2x12f MPO's pinned, internal shutters |
| Model Number | 760242496 | DM12-24LC-LS-AF |
| Functionality | Breakout |
| Adapters, quantity, front | 12 |
| Color, front | Aqua |
| Color, rear | Black |
| Interface, front | LC/UPC |
| Interface, rear | MPO |
| Interface Feature, rear | Key up/down | Pinned |
| Polarity | Method A | Pairs, flipped |
| Shuttered | Yes |
| Total Fibers, quantity | 24 |
CommScope - 760242496 - Additional Information
| Dimensions | - |
|---|---|
| Height | 26.42 mm | 1.04 in |
| Width | 96.52 mm | 3.8 in |
| Depth | 117.35 mm | 4.62 in |
| Optical Specifications | - |
| Fiber Mode | Multimode |
| Fiber Type | OM4 |
| Insertion Loss, maximum | 0.35 dB |
| Environmental Specifications | - |
| Qualification Standards | IEC 61753-1 | TIA-568.3-D |
| Safety Standard | CE | CSA | UL |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Weight, net | 0.113 kg | 0.249 lb |
