Brand: CommScope
|
SKU:
10172246

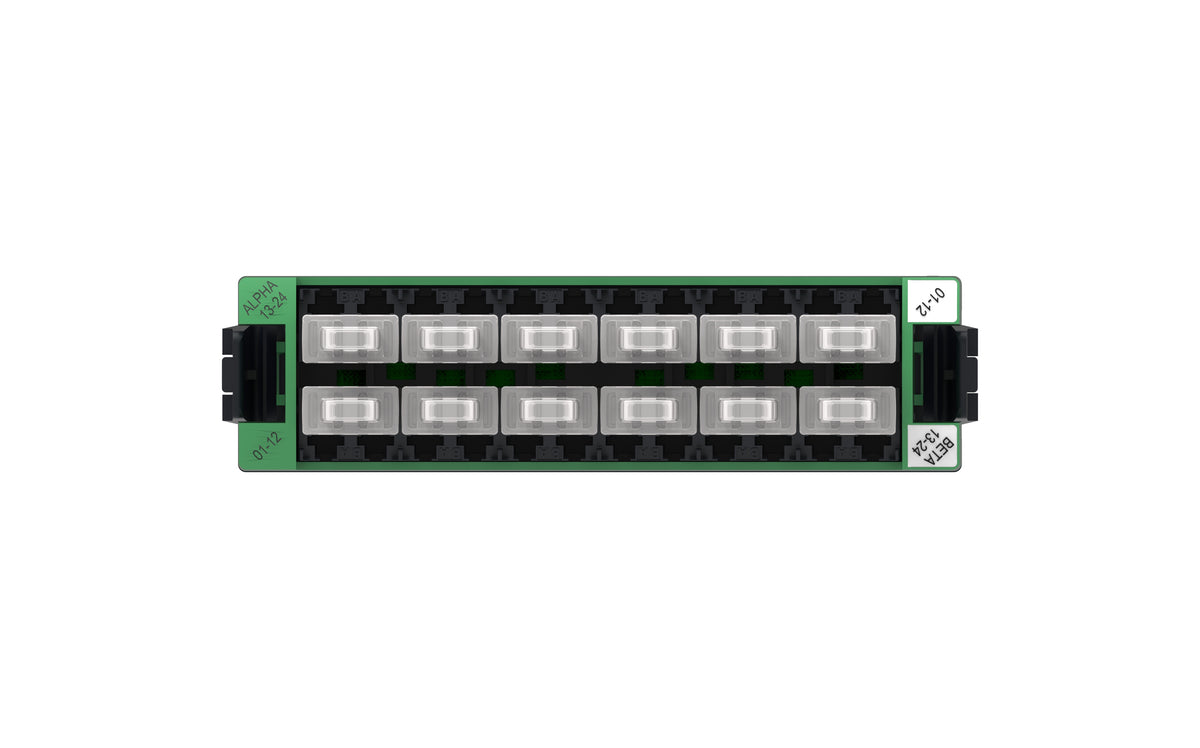

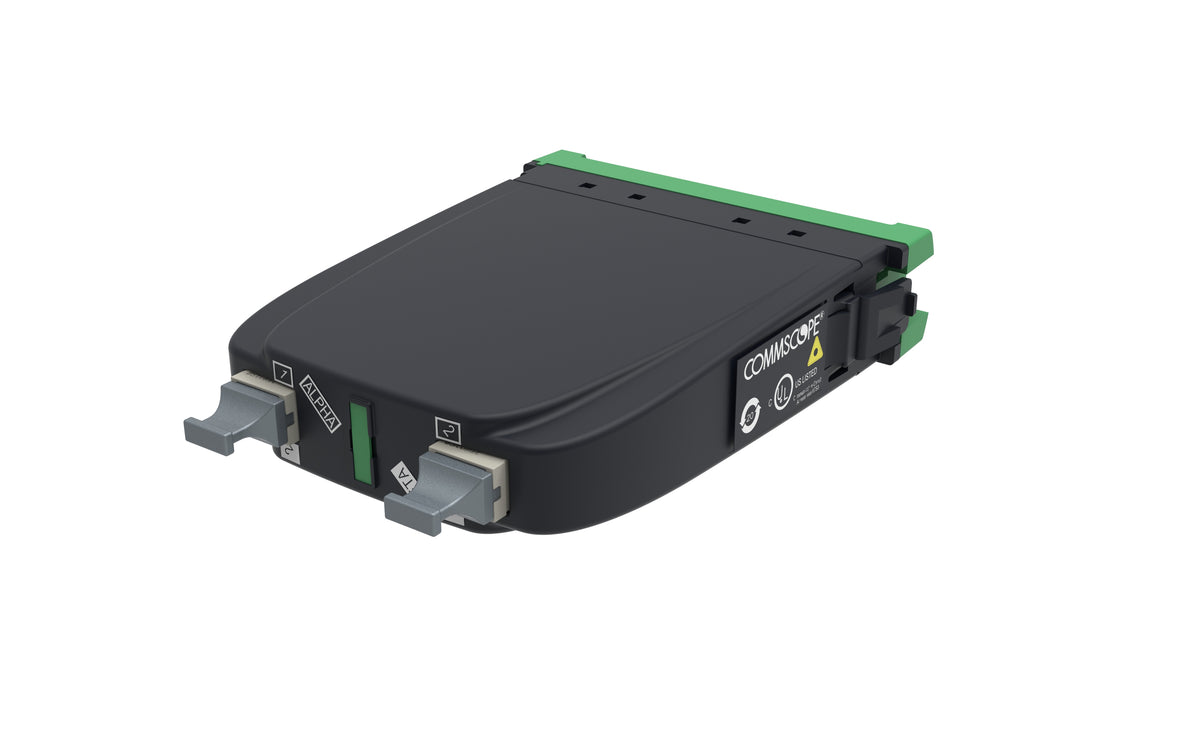

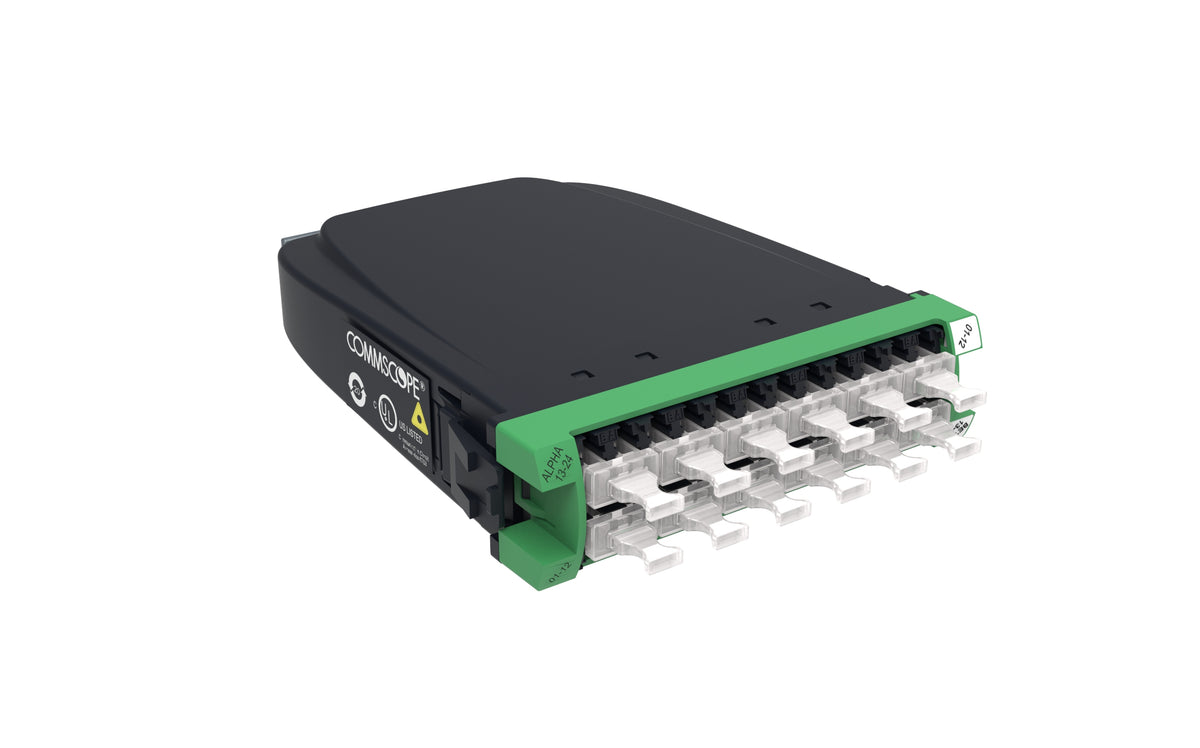

CommScope 760242974 | G2 Singlemode APC Module, 24 LC fibers (12 duplex ports), iPatch Ready
Regular price
$959.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760242974 | G2 Singlemode APC Module, 24 LC fibers (12 du...
Regular price
$959.12
Unit price
Description
Description
CommScope 760242974 | G2 Singlemode APC Module, 24 LC fibers (12 duplex ports), iPatch Ready
Specifications
Specifications
CommScope - 760242974 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
CommScope - 760242974 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760242974 | 360DMiP-24LCA-SM |
| Item Description | G2 Singlemode APC Module, 24 LC fibers (12 duplex ports) ,iPatch Ready |
| Functionality | Breakout |
| Adapters, quantity, front | 12 |
| Adapters, quantity, rear | 2 |
| Color, front | Green |
| Color, rear | Lime green |
| Data Module Type | Standard |
| Intelligence Type | iPatch |
| Interface, front | LC/APC |
| Interface, rear | MPO |
| Interface Feature, rear | Pinned | Reduced footprint |
| Shuttered | Yes |
| Total Fibers, quantity | 24 |
| Total Ports, quantity, front | 24 |
CommScope - 760242974 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
CommScope - 760242974 - Physical Specifications
| Dimensions | - |
|---|---|
| Height | 30.48 mm | 1.2 in |
| Width | 91.44 mm | 3.6 in |
| Depth | 116.84 mm | 4.6 in |
| Optical Specifications | - |
| Fiber Mode | Singlemode |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED |
| Insertion Loss Change, mating | 0.3 dB |
| Insertion Loss Change, temperature | 0.3 dB |
| Insertion Loss, maximum | 1.05 dB |
| Return Loss, minimum | 62 dB |
| Environmental Specifications | - |
| Safety Standard | UL | cUL |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
