Brand: CommScope
|
SKU:
10239912

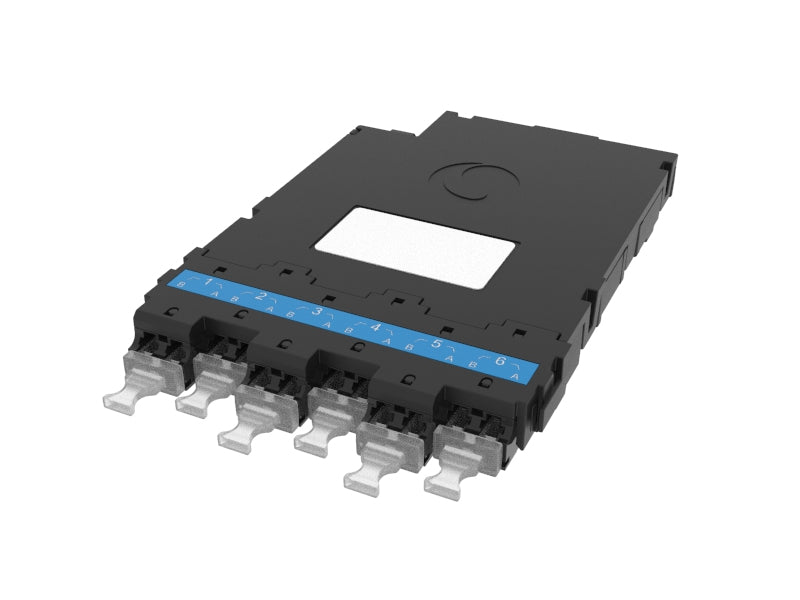

CommScope 760243201 | CHD ULL Singlemode MPO-12 distribution module, 12LC to 1x12f MPO pinned, dust plugs
Regular price
$712.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760243201 | CHD ULL Singlemode MPO-12 distribution module...
Regular price
$712.77
Unit price
Description
Description
CommScope 760243201 | CHD ULL Singlemode MPO-12 distribution module, 12LC to 1x12f MPO pinned, dust plugs
Specifications
Specifications
CommScope - 760243201 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
- Fiber Modules
CommScope - 760243201 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Brand | SYSTIMAX ULL |
| Product Series | CHD |
CommScope - 760243201 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | CHD ULL Singlemode MPO-12 distribution module, 12LC to 1x12f MPO pinned, dust plugs |
| Model Number | 760243201 | CHD12-DM-LC-SM-B-ULLM |
| Functionality | Breakout |
| Color, front | Blue |
| Color, rear | Gray |
| Interface, front | LC/UPC |
| Interface, rear | MPO |
| Interface Feature, rear | Key up/up | Pinned |
| Polarity | Method B Enhanced (ULL) |
| Shuttered | No |
| Total Fibers, quantity | 12 |
CommScope - 760243201 - Additional Information
| Dimensions | - |
|---|---|
| Height | 12.45 mm | 0.49 in |
| Width | 83.82 mm | 3.3 in |
| Depth | 131.83 mm | 5.19 in |
| Optical Specifications | - |
| Fiber Mode | Singlemode |
| Fiber Type | OS2 |
| Insertion Loss, maximum | 0.6 dB |
| Environmental Specifications | - |
| Qualification Standards | IEC 61753-1 | TIA-568.3-D |
| Safety Standard | CE | CSA | UL |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Weight, net | 0.0816 kg | 0.180 lb |
