Brand: CommScope
|
SKU:
373-COM0S2-LTD-24

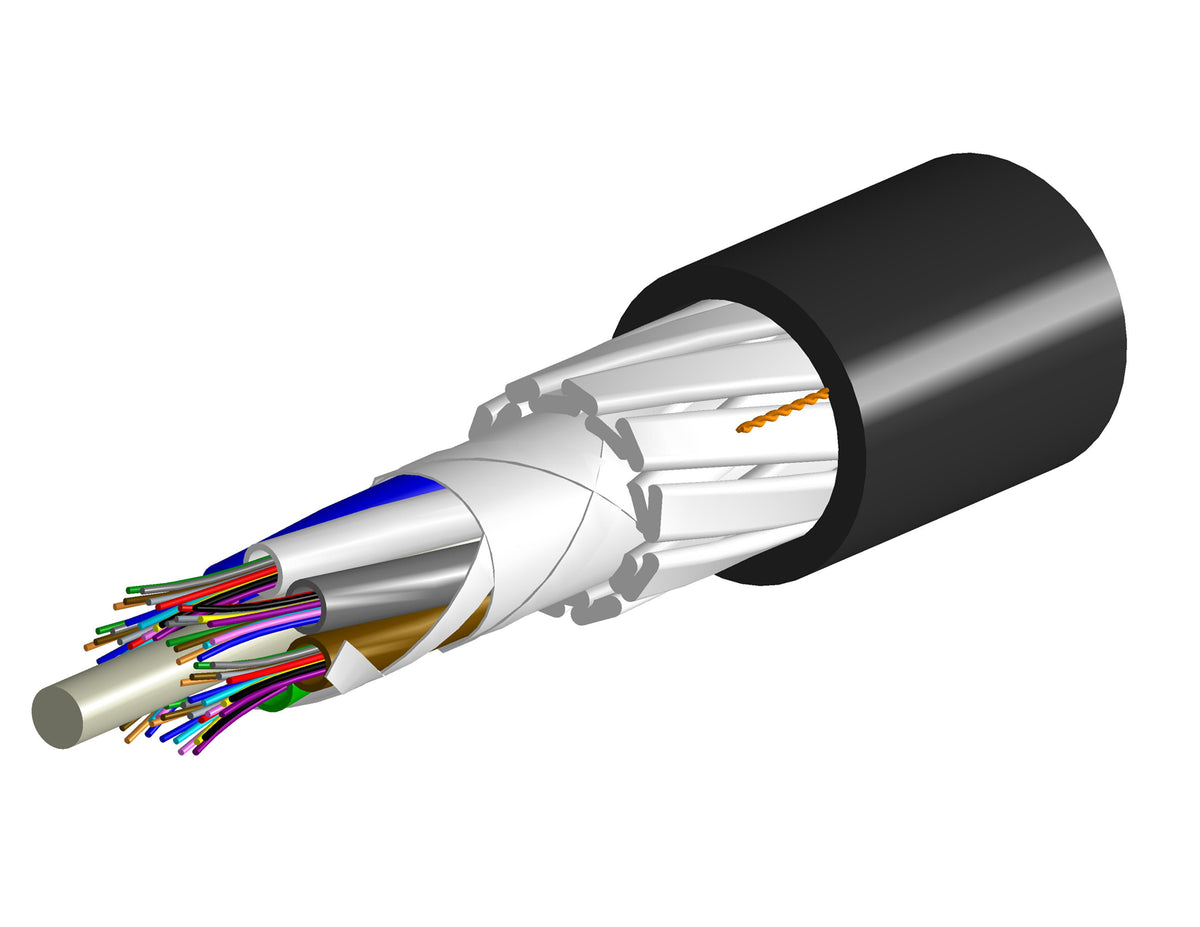

CommScope 760243519 | Fiber indoor/outdoor cable, TeraSPEED, Single Jacket All-Dielectric (LSZH), 24 fiber
Regular price
$12.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760243519 | Fiber indoor/outdoor cable, TeraSPEED, Single...
Regular price
$12.66
Unit price
Brand: CommScope
|
SKU:
373-COM0S2-LTD-24
Regular price
$12.66
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760243519 | Fiber indoor/outdoor cable, TeraSPEED, Single Jacket All-Dielectric (LSZH), 24 fiber
Specifications
Specifications
CommScope - 760243519 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760243519 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760243519 | C-024-LN-8W-F12BK/25D/HTS/B2 |
| Item Description | Fiber indoor/outdoor cable, TeraSPEED, Single Jacket All-Dielectric (LSZH), 24 fiber, Singlemode G.652.D and G.657.A1, Gel-Free, Stranded Loose Tube, Feet jacket marking, Black jacket color, B2ca flame rating. Provides Rodent Resistance |
| Cable Type | Stranded loose tube |
| Construction Type | Non-armored |
| Subunit Type | Gel-free |
| Filler, quantity | 3 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 2 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 24 |
CommScope - 760243519 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | C-LN |
CommScope - 760243519 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 13.61 mm | 0.536 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 204 mm | 8.031 in |
| Minimum Bend Radius, unloaded | 136 mm | 5.354 in |
| Tensile Load, long term, maximum | 1334 N | 299.895 lbf |
| Tensile Load, short term, maximum | 4448 N | 999.950 lbf |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 4.41 N-m | 39.032 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 654 m | 2145.669 ft |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED |
| | OS2 | OS2 | Environmental Specifications |
| -30 °C to +55 °C (-22 °F to +131 °F) | Operating Temperature |
| -40 °C to +60 °C (-40 °F to +140 °F) | Storage Temperature |
| -40 °C to +65 °C (-40 °F to +149 °F) | Cable Qualification Standards |
| ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-20 | Telcordia GR-409 | EN50575 CPR Cable EuroClass Fire Performance |
| B2ca | EN50575 CPR Cable EuroClass Smoke Rating |
| s1a | EN50575 CPR Cable EuroClass Droplets Rating |
