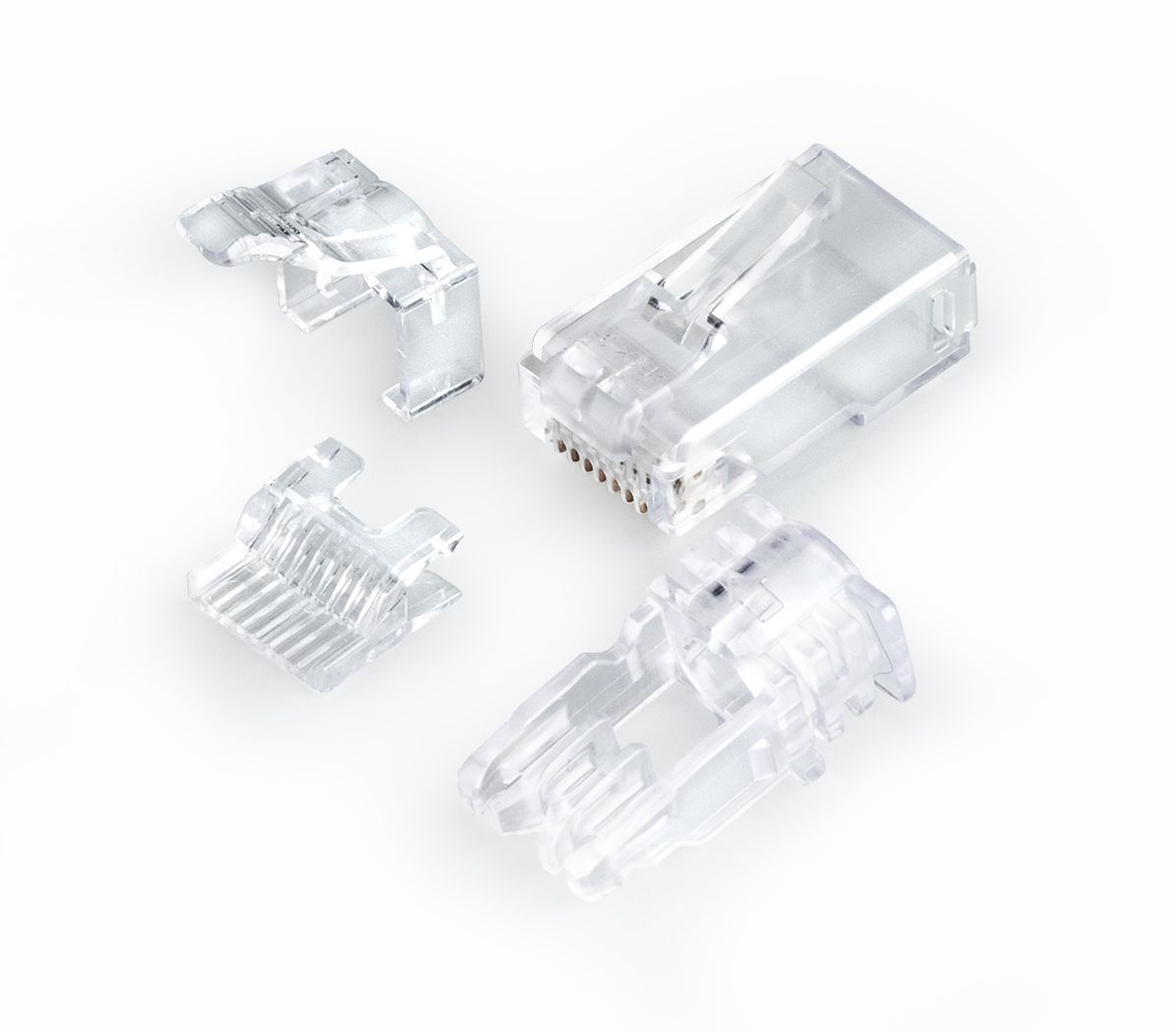

CommScope 760244128 | Field Term Modular Plug, RJ45, Cat6 (25 ea/pkg)
Regular price
$150.04
Unit price
Brand: CommScope
|
SKU:
10052129
Regular price
$150.04
Unit price
Description
Description
CommScope 760244128 | Field Term Modular Plug, RJ45, Cat6 (25 ea/pkg)
Specifications
Specifications
CommScope - 760244128 - Product Categories
- Connectors
- RJ45 Plugs & Accessories
- Category 6 Plugs
CommScope - 760244128 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
CommScope - 760244128 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Field Term Modular Plug, RJ45, Cat6 (25 ea/pkg) |
| Model Number | 760244128 | FT-MP-6-25 |
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Clear |
| Conductor Type | Solid |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8 |
| Termination Type | IDC |
CommScope - 760244128 - Additional Information
| Dimensions | - |
|---|---|
| Compatible Cable Diameter, maximum | 6 mm | 0.236 in |
| Compatible Cable Diameter, minimum | 5.3 mm | 0.209 in |
| Compatible Insulated Conductor Diameter, maximum | 1.03 mm | 0.041 in |
| Compatible Insulated Conductor Diameter, minimum | 0.84 mm | 0.033 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 23 AWG |
| Electrical Specifications | - |
| Safety Voltage Rating | 1000 Vac |
| Material Specifications | - |
| Contact Base Material | Copper alloy |
| Contact Plating Material | Gold over nickel |
| Material Type | Polycarbonate |
| Mechanical Specifications | - |
| Plug Insertion Life, minimum | 750 times |
