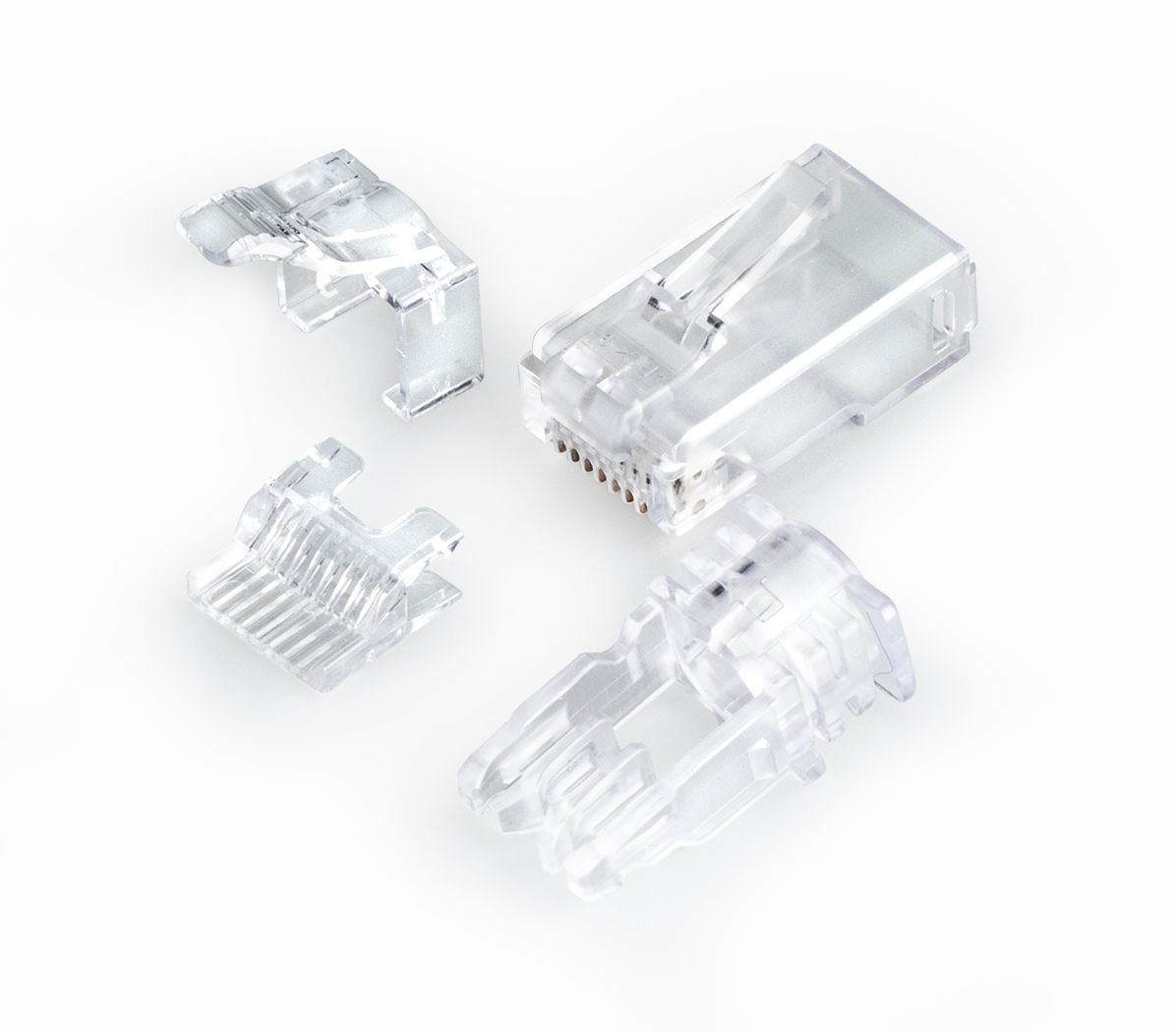

Commscope 760244131 | FIELD TERM RJ45 Modular Plug CAT6A BAG OF 100...
Regular price
$679.49
Unit price
Brand: CommScope
|
SKU:
10054443
Regular price
$679.49
Unit price
Description
Description
Commscope 760244131 | FIELD TERM RJ45 Modular Plug CAT6A BAG OF 100+TOOL
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid / Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8 |
| Termination Type | IDC |
Dimensions
| Compatible Cable Diameter, maximum | 7.4 mm / 0.291 in |
|---|---|
| Compatible Cable Diameter, minimum | 7.1 mm / 0.280 in |
| Compatible Insulated Conductor Diameter, maximum | 0.88 mm / 0.035 in |
| Compatible Insulated Conductor Diameter, minimum | 0.84 mm / 0.033 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 23 AWG |
Material Specifications
| Contact Base Material | Copper alloy |
|---|---|
| Contact Plating Material | Gold over nickel |
| Material Type | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|
Environmental Specifications
| Safety Standard | UL 114344 |
|---|
Packaging and Weights
| Packaging quantity | 100 |
|---|---|
| Packaging Type | Bag |
Documents and Downloads
Documents and Downloads
- Design Guidelines for MPTL
- 860650055 Field Terminated RJ45 Modular Plug Termination
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Field Terminated RJ45 Modular Plug Instructions
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
