Brand: CommScope | SKU: 10390125

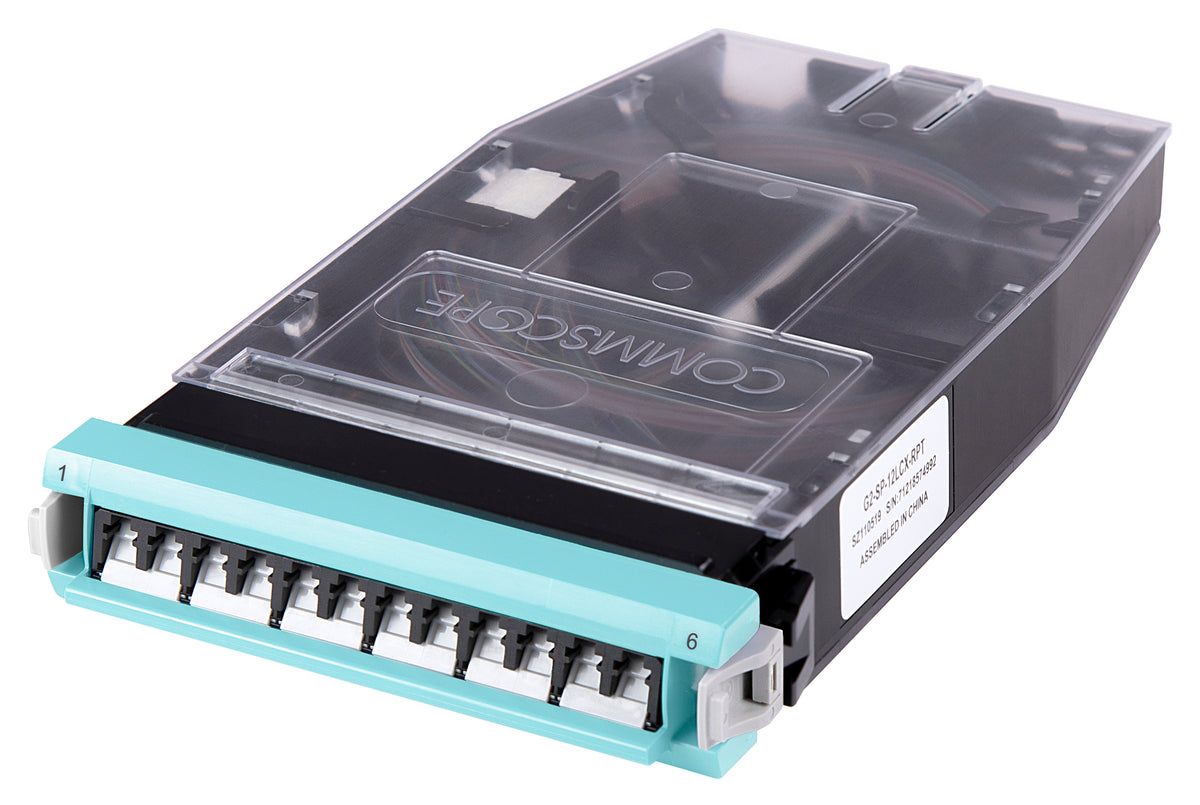

CommScope 760245400 | G2 Splice Cassette, 12LC with internal shutters, OM4, with ribbon pigtails

$585.64

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

CommScope 760245400 | G2 Splice Cassette, 12LC with internal shutters, OM4, with ribbon pigtails

Specifications

CommScope - 760245400 - Product Categories

Cabinets, Panels, Enclosures & Power
Fiber Panels & Cassettes
Fiber Cassettes

CommScope - 760245400 - Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope
Product Type	Fiber cassette with ribbon pigtail
Product Series	G2

CommScope - 760245400 - General Specifications

Brand Name	CommScope
Item Description	G2 Splice Cassette, 12LC with internal shutters, OM4, with ribbon pigtails
Model Number	760245400 \| G2-SP-12LCX-RPT
Color, front	Aqua
Interface, front	LC/UPC
Interface, rear	Ribbon pigtail
Polarity	Pairs, straight
Shuttered	Yes
Total Fibers, quantity	12

CommScope - 760245400 - Additional Information

Dimensions	-
Height	26.416 mm \| 1.04 in
Width	96.52 mm \| 3.8 in
Depth	165.354 mm \| 6.51 in
Material Specifications	-
Alignment Sleeve Material	Zirconia
Optical Specifications	-
Fiber Mode	Multimode
Fiber Type	OM4
Insertion Loss, maximum	0.15 dB
Return Loss, minimum	35 dB
Environmental Specifications	-
Qualification Standards	IEC 61753-1 \| TIA-568.3-D
Safety Standard	UL

Documents and Downloads

CommScope 760245400 Product Specification
