Brand: CommScope
|
SKU:
10569425

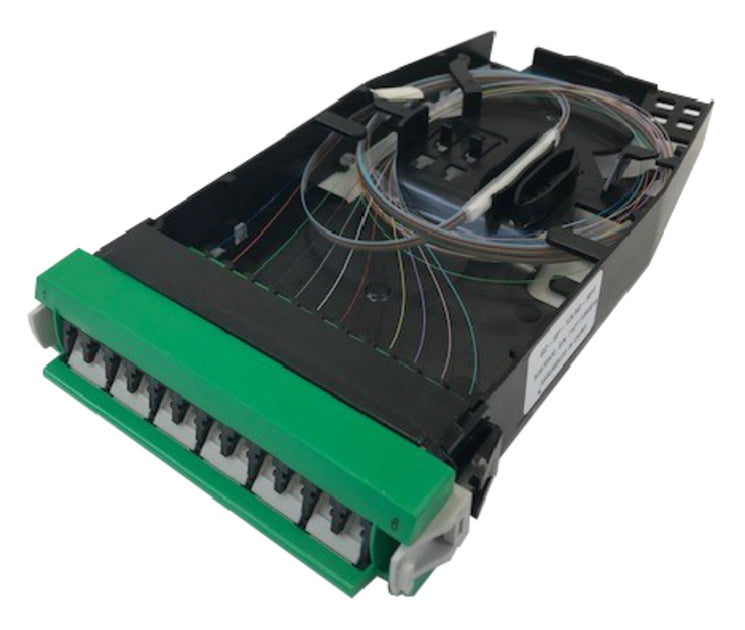

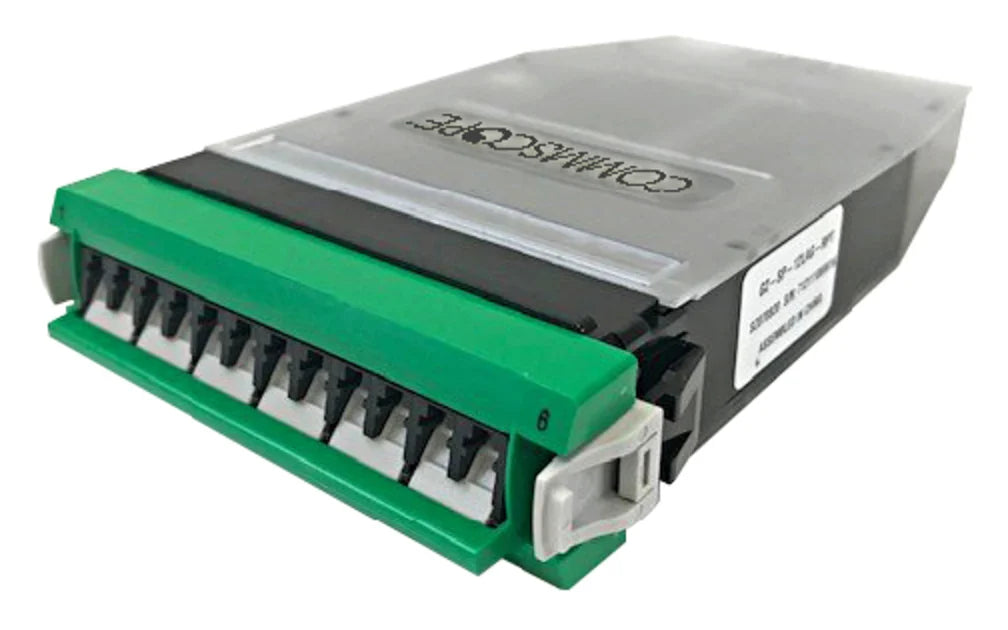

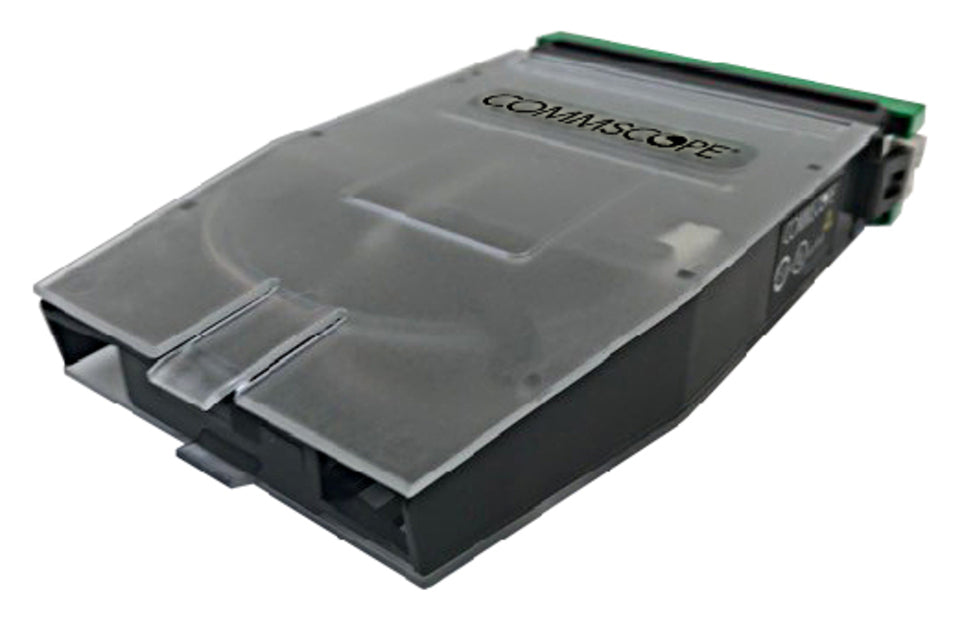

CommScope 760248150 | G2 Splice Cassette, 12LC/APC with Internal Shutters, OS2, with Ribbon Pigtails
Regular price
$585.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760248150 | G2 Splice Cassette, 12LC/APC with Internal Sh...
Regular price
$585.64
Unit price
Brand: CommScope
|
SKU:
10569425
CommScope 760248150 | G2 Splice Cassette, 12LC/APC with Internal Shutters, OS2, with Ribbon Pigtails
Regular price
$585.64
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760248150 | G2 Splice Cassette, 12LC/APC with Internal Shutters, OS2, with Ribbon Pigtails
Specifications
Specifications
CommScope - 760248150 - Specifications
| Product Type | Fiber cassette with ribbon pigtail |
|---|---|
| Color, front | Green |
| Interface, front | LC/APC |
| Interface, rear | Ribbon pigtail |
| Polarity | Pairs, straight |
| Shuttered | Yes |
| Total Fibers, quantity | 12 |
| Height | 26.416 mm | 1.04 in |
| Width | 96.520 mm | 3.8 in |
| Depth | 165.354 mm | 6.51 in |
| Alignment Sleeve Material | Zirconia |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, maximum | 0.4 dB |
| Return Loss, minimum | 60 dB |
