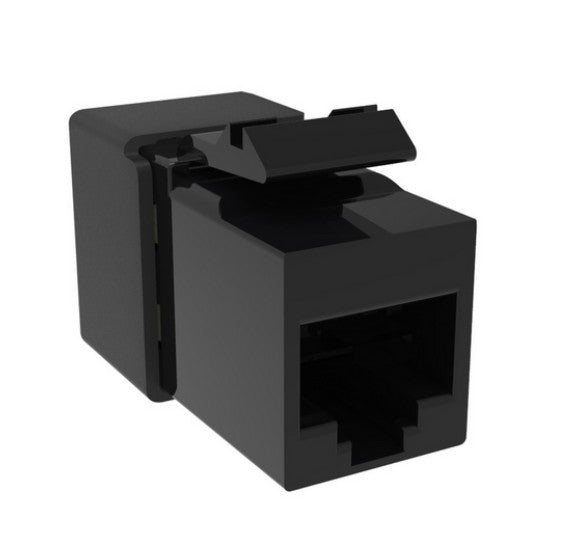

CommScope 760248372 | Modular Jack RJ45 Cat6A Unshielded Black
Regular price
$446.49
Unit price
Brand: CommScope
|
SKU:
10712809
Regular price
$446.49
Unit price
Description
Description
CommScope 760248372 | Modular Jack RJ45 Cat6A Unshielded Black
CommScope - 760248372 - Features
- Color is more prominently visible across the body of the jack
- Allows for all jack variants to be terminated with the JTT termination tool
- Lacing fixture of the JTT termination tool is used to establish the cable termination
Specifications
Specifications
CommScope - 760248372 - Specifications
| Height | 16.13 mm | 0.635 in |
|---|---|
| Width | 14.48 mm | 0.57 in |
| Depth | 30.48 mm | 1.2 in |
| Compatible Cable Diameter, Maximum | 7.24 mm | 0.285 in |
| Compatible Insulated Conductor Diameter, Maximum | 1.45 mm | 0.057 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, Solid | 22–24 AWG |
| Compatible Conductor Gauge, Stranded | 24–26 AWG |
| Contact Resistance, Maximum | 20 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, Contact-to-Contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, Minimum | 500 MOhm |
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| PoE Durability | Supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles |
| Safety Voltage Rating | 150 Vac |
