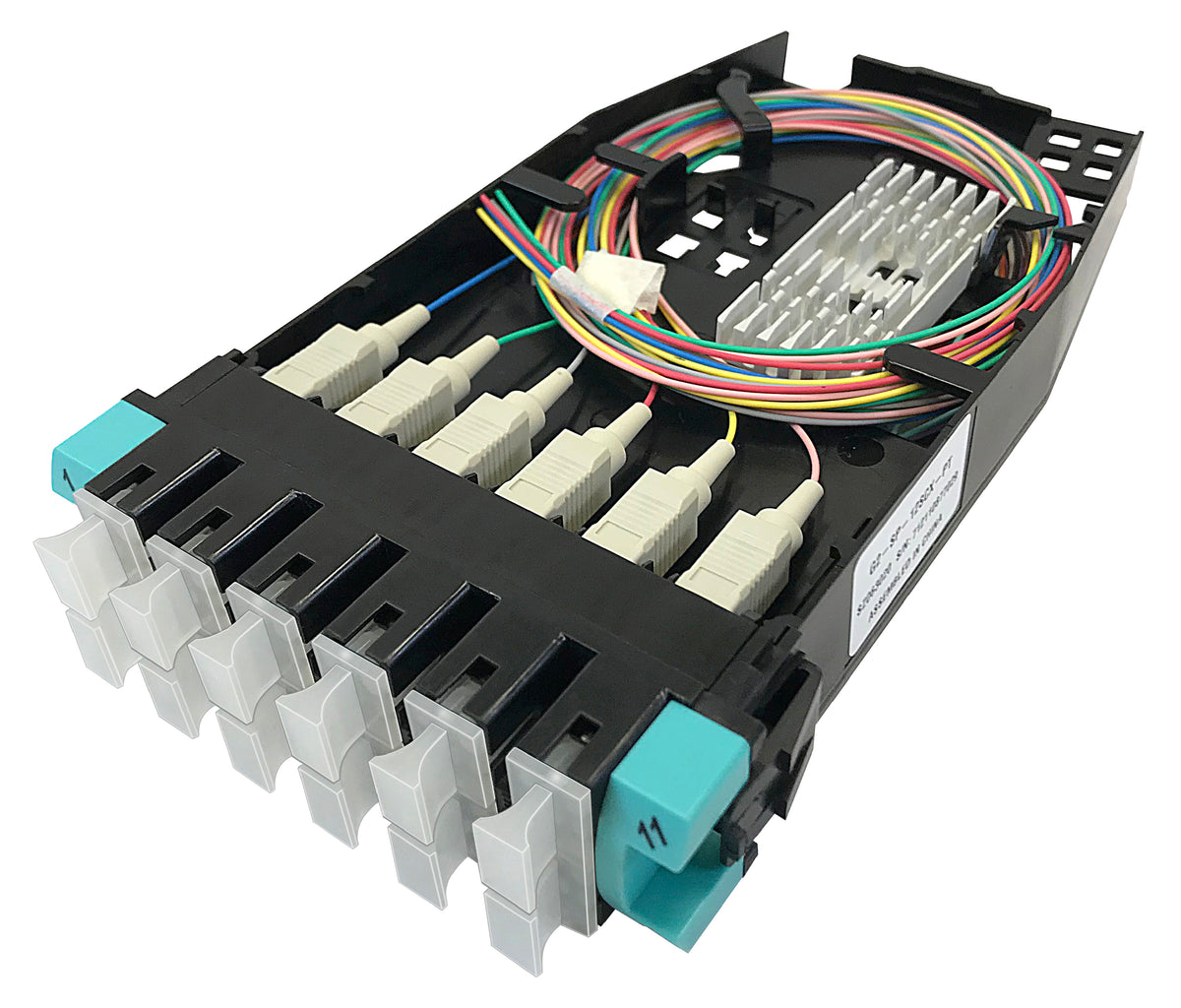

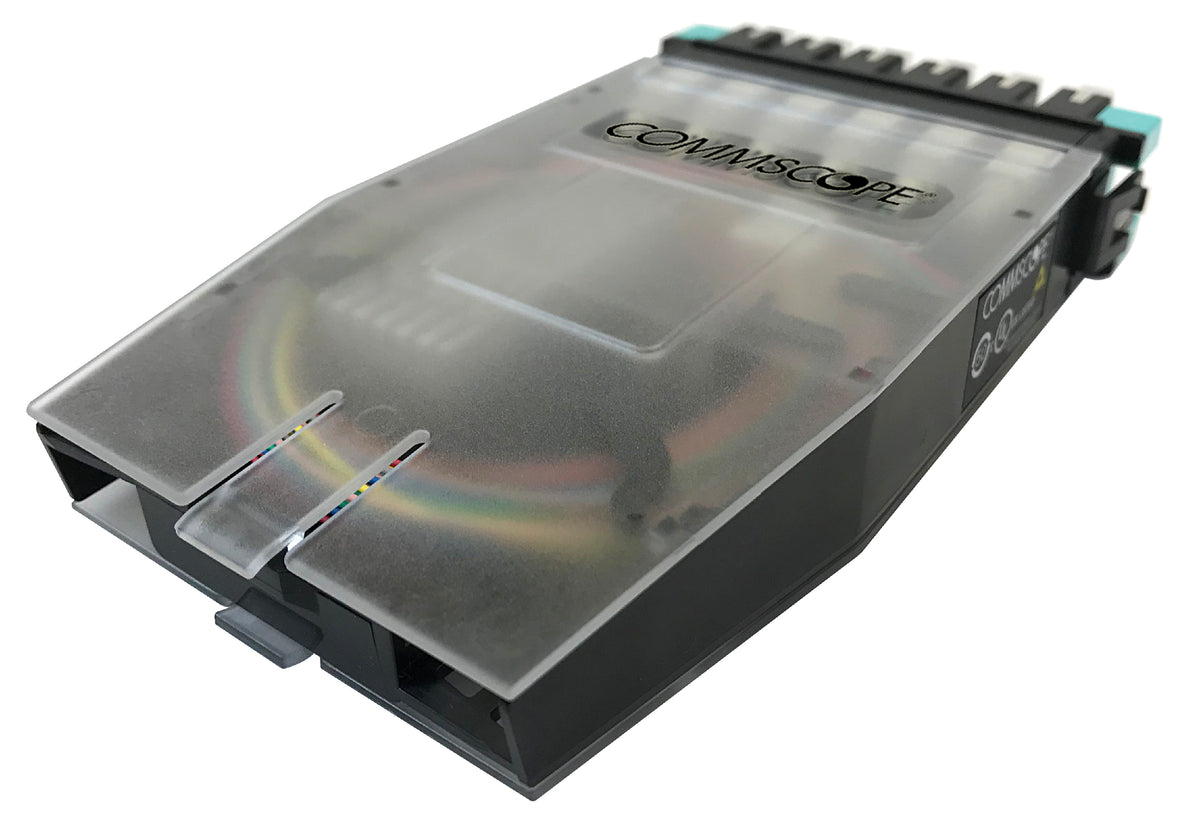

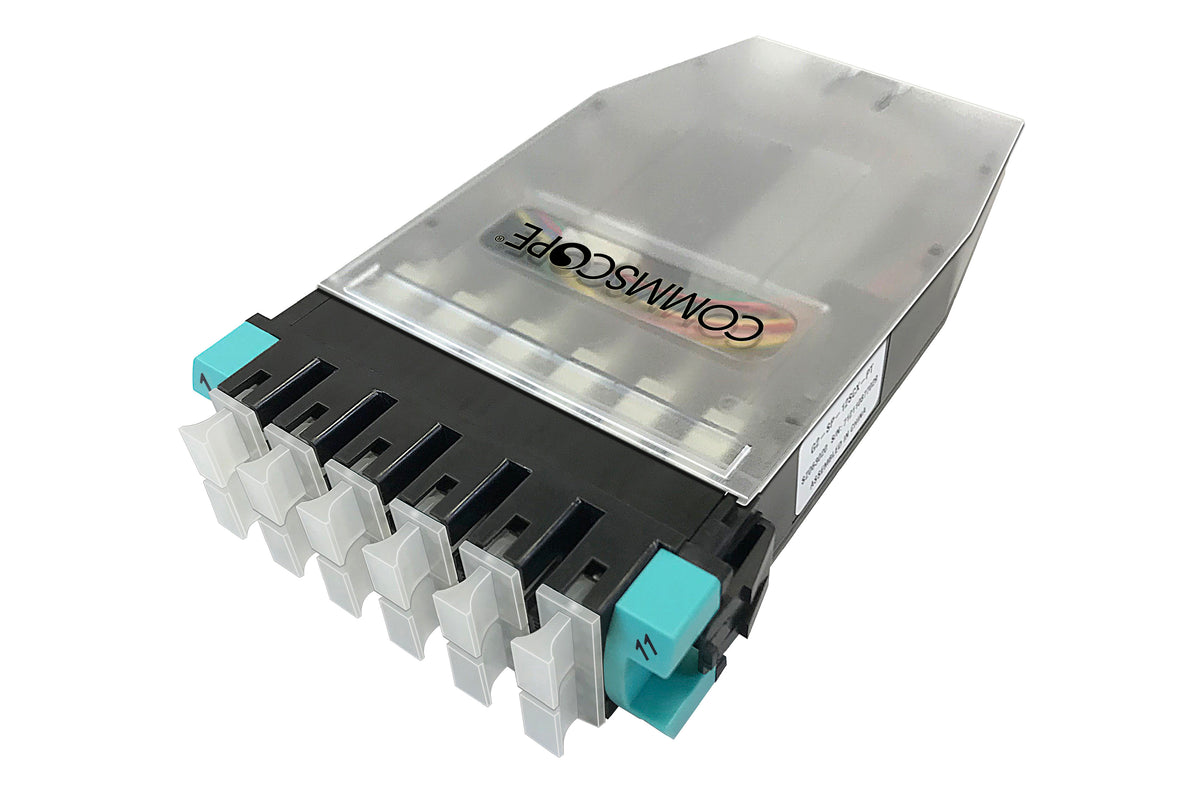

CommScope 760248831 | G2 Splice Cassette, 12SC, OM4 with pigtails
Regular price
$585.64
Unit price
Brand: CommScope
|
SKU:
10345442
Regular price
$585.64
Unit price
Description
Description
CommScope 760248831 | G2 Splice Cassette, 12SC, OM4 with pigtails
Specifications
Specifications
CommScope - 760248831 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
CommScope - 760248831 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760248831 | G2-SP-12SCX-PT |
| Item Description | G2 Splice Cassette, 12SC, OM4 with pigtails |
| Color, front | Aqua |
| Interface, front | SC/UPC |
| Interface, rear | Stranded pigtail |
| Polarity | Method B |
| Shuttered | No |
| Total Fibers, quantity | 12 |
CommScope - 760248831 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber cassette with pigtails |
| Product Series | G2 |
CommScope - 760248831 - Physical Specifications
| Dimensions | - |
|---|---|
| Height | 26.416 mm | 1.04 in |
| Width | 96.520 mm | 3.8 in |
| Depth | 165.354 mm | 6.51 in |
| Optical Specifications | - |
| Fiber Mode | Multimode |
| Fiber Type | OM4 |
| Insertion Loss, maximum | 0.185 dB |
| Return Loss, minimum | 35 dB |
| Environmental Specifications | - |
| Qualification Standards | IEC 61753-1 | TIA-568.3-D |
| Safety Standard | UL |
| Packaging and Weights | - |
| Included | SMOUV holder | SMOUV splice protection |
| Packaging quantity | 1 |
| Weight, net | 0.116 kg | 0.2557 lb |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant, Compliant/Exempted |
