Brand: CommScope
|
SKU:
10369836

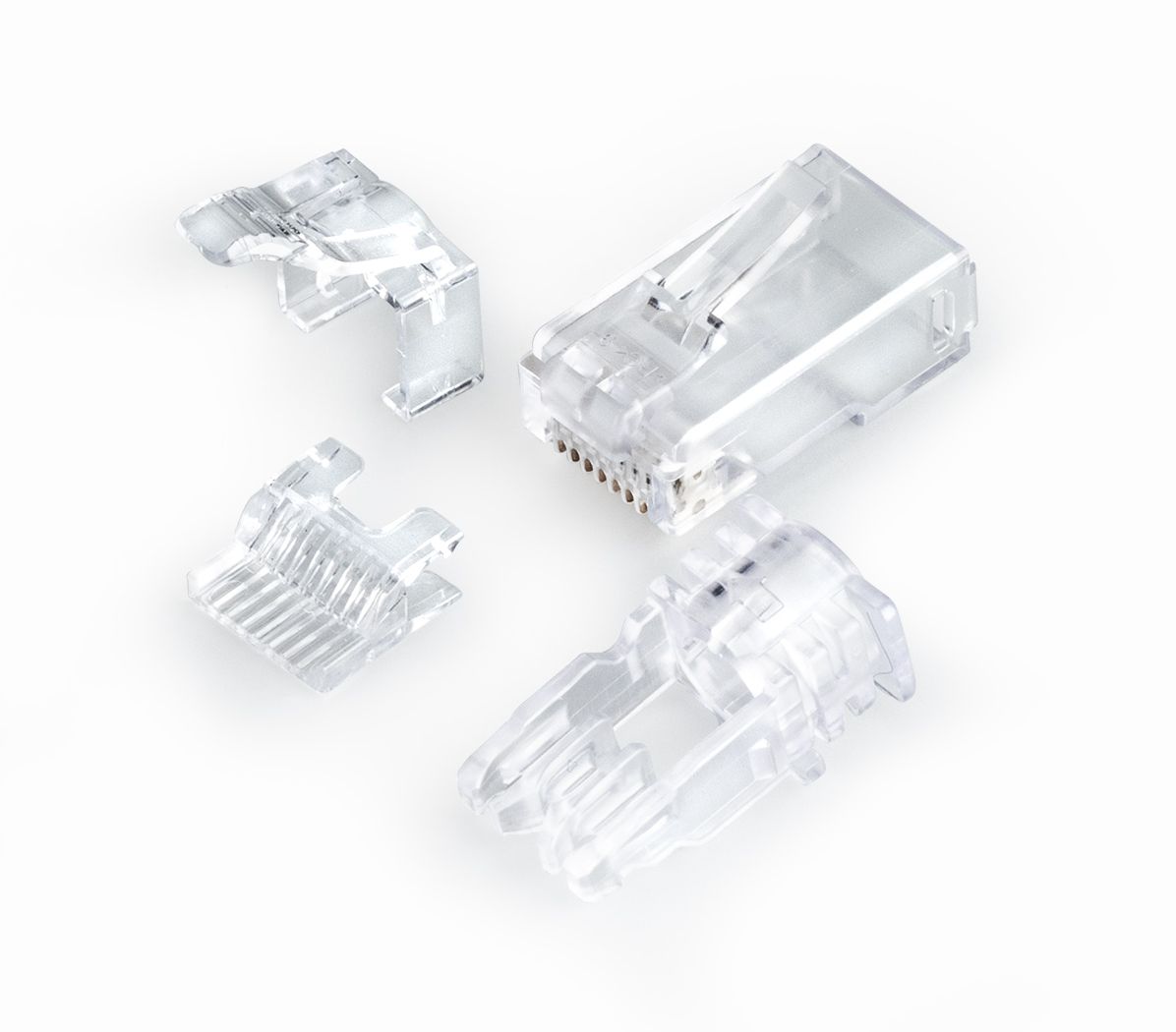

CommScope 760249554 | Field Term Modular Plug, RJ45, Cat6A, Large Wire (100 ea/pkg)
Regular price
$591.69
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760249554 | Field Term Modular Plug, RJ45, Cat6A, Large W...
Regular price
$591.69
Unit price
Brand: CommScope
|
SKU:
10369836
Regular price
$591.69
Unit price
Description
Description
CommScope 760249554 | Field Term Modular Plug, RJ45, Cat6A, Large Wire (100 ea/pkg)
Specifications
Specifications
CommScope - 760249554 - Product Categories
- Connectors
- RJ45 Plugs & Accessories
- Category 6 Plugs
CommScope - 760249554 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
CommScope - 760249554 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Field Term Modular Plug, RJ45, Cat6A, Large Wire (100 ea/pkg) |
| Model Number | 760249554 | FT-MP-6A-LW-100 |
| ANSI/TIA Category | 6A |
| Cable Type | U/UTP (unshielded) |
| Color | Clear |
| Conductor Type | Solid | Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8 |
| Termination Type | IDC |
CommScope - 760249554 - Additional Information
| Dimensions | - |
|---|---|
| Compatible Cable Diameter, maximum | 7.3 mm | 0.287 in |
| Compatible Cable Diameter, minimum | 7.1 mm | 0.280 in |
| Compatible Insulated Conductor Diameter, maximum | 1.03 mm | 0.041 in |
| Compatible Insulated Conductor Diameter, minimum | 0.9 mm | 0.035 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 23 AWG | 24 AWG |
| Material Specifications | - |
| Contact Base Material | Copper alloy |
| Contact Plating Material | Gold over nickel |
| Material Type | Polycarbonate |
| Mechanical Specifications | - |
| Plug Insertion Life, minimum | 750 times |
| Environmental Specifications | - |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Safety Standard | UL 114344 |
