Brand: CommScope
|
SKU:
10128606

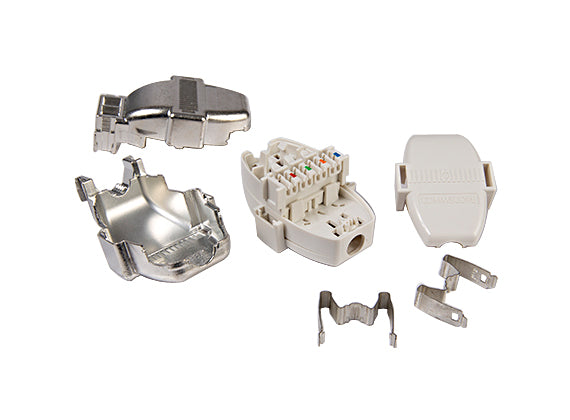

CommScope 760250028 | Shielded Ceiling Connector Assembly (CCA) without cordage, Silver (5 ea/pkg)
Regular price
$123.42
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760250028 | Shielded Ceiling Connector Assembly (CCA) wit...
Regular price
$123.42
Unit price
Brand: CommScope
|
SKU:
10128606
Regular price
$123.42
Unit price
Description
Description
CommScope 760250028 | Shielded Ceiling Connector Assembly (CCA) without cordage, Silver (5 ea/pkg)
Specifications
Specifications
CommScope - 760250028 - Product Categories
- Connectors
- Twisted Pair Ceiling Connectors
CommScope - 760250028 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760250028 | ECO CCA-SHLD-5 |
| Item Description | Shielded Ceiling Connector Assembly (CCA) without cordage, Silver (5 ea/pkg) |
| ANSI/TIA Category | 6 | 6A |
| Cable Type | F/FTP (shielded) | F/UTP (shielded) | S/FTP (shielded) |
| Conductor Type | Solid | Stranded |
CommScope - 760250028 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Connector kit |
CommScope - 760250028 - Physical Specifications
| Dimensions | - |
|---|---|
| Height | 29.718 mm | 1.17 in |
| Width | 38.862 mm | 1.53 in |
| Depth | 73.914 mm | 2.91 in |
| Compatible Conductor Gauge, solid | 26–22 AWG |
| Compatible Conductor Gauge, stranded | 26–22 AWG |
| Material Specifications | - |
| Contact Plating Material | Precious metals |
| IDC Termination Material | Phosphor Bronze |
| Material Type | High-impact, flame retardant, thermoplastic | Phosphor Bronze | Stainless Steel Contact Spring | Zinc Die Cast Shield |
| Mechanical Specifications | - |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 44.645 kg/m | 30 lb/ft |
| Environmental Specifications | - |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Environmental Space | Low Smoke Zero Halogen (LSZH) | Plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ETL | cETL |
| Packaging and Weights | - |
| Packaging quantity | 5 |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
