Brand: CommScope
|
SKU:
10368026

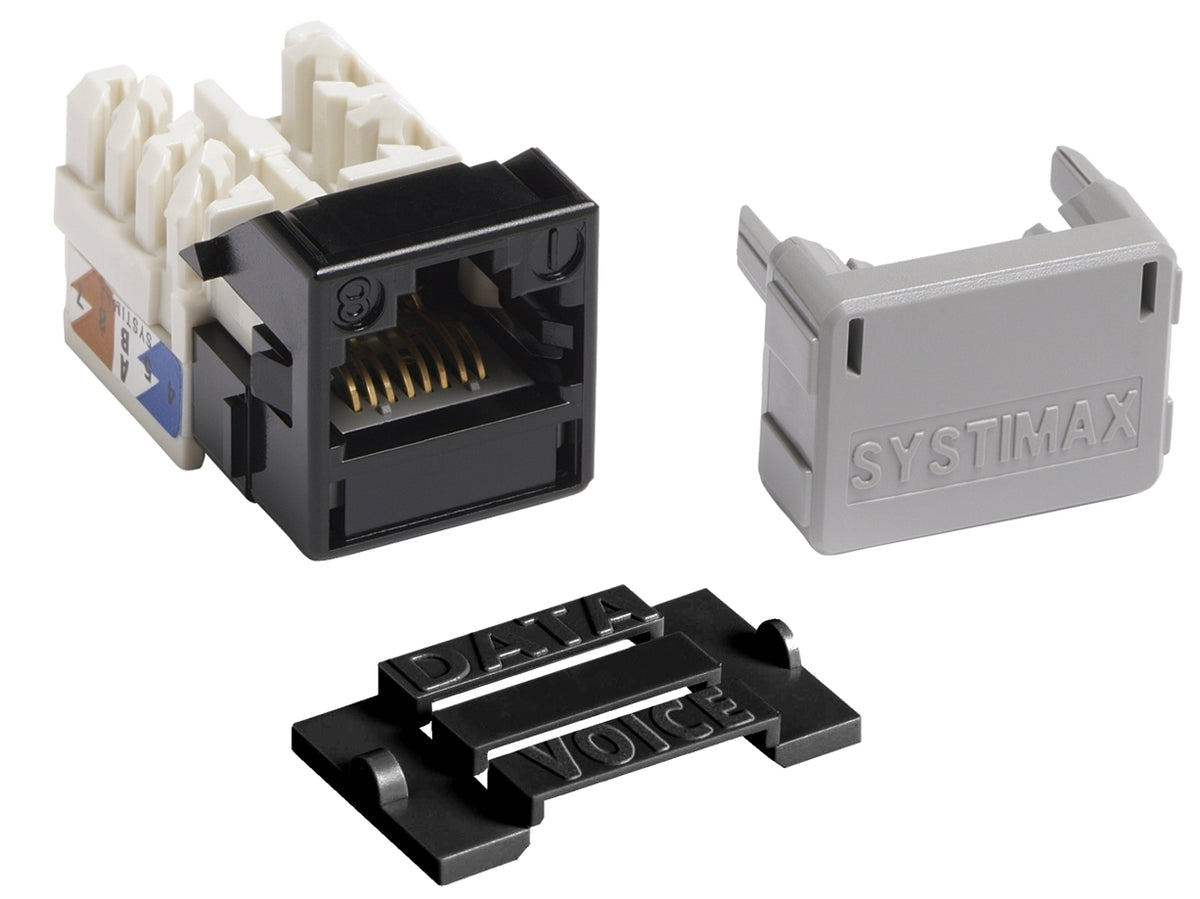

CommScope 760250042 | GigaSPEED XL M-Series Modular Jack, RJ45, Cat6 Unshielded, Black (24 ea/pkg)
Regular price
$383.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760250042 | GigaSPEED XL M-Series Modular Jack, RJ45, Cat...
Regular price
$383.57
Unit price
Description
Description
CommScope 760250042 | GigaSPEED XL M-Series Modular Jack, RJ45, Cat6 Unshielded, Black (24 ea/pkg)
Specifications
Specifications
CommScope - 760250042 - Product Categories
- Connectors
- RJ45 Jacks & Accessories
- Category 6 Jacks
CommScope - 760250042 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Modular jack |
| Product Brand | GigaSPEED XL |
| Product Series | MGS400 |
CommScope - 760250042 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | GigaSPEED XL M-Series Modular Jack, RJ45, Cat6 Unshielded, Black (24 ea/pkg) |
| Model Number | 760250042 | ECO MGS400-BK-24 |
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Black |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting Note | Color matches with M-series Black Faceplates and Surface Mount Boxes |
| Termination Type | IDC |
| Wiring | T568A | T568B |
CommScope - 760250042 - Additional Information
| Dimensions | - |
|---|---|
| Height | 19.4 mm | 0.764 in |
| Width | 21.08 mm | 0.830 in |
| Depth | 30.2 mm | 1.189 in |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG | 24 AWG |
| Electrical Specifications | - |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 MOhm |
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| PoE Durability | Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles |
| Material Specifications | - |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | High-impact, flame retardant, thermoplastic |
| Termination Contact Plating | Nickel |
| Mechanical Specifications | - |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Plug to Jack Mating Cycles | Complies to IEC 60603-7 series |
