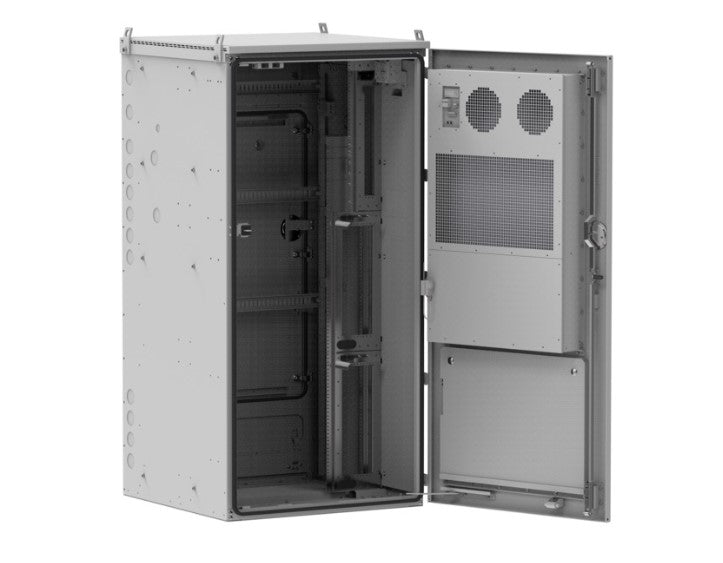

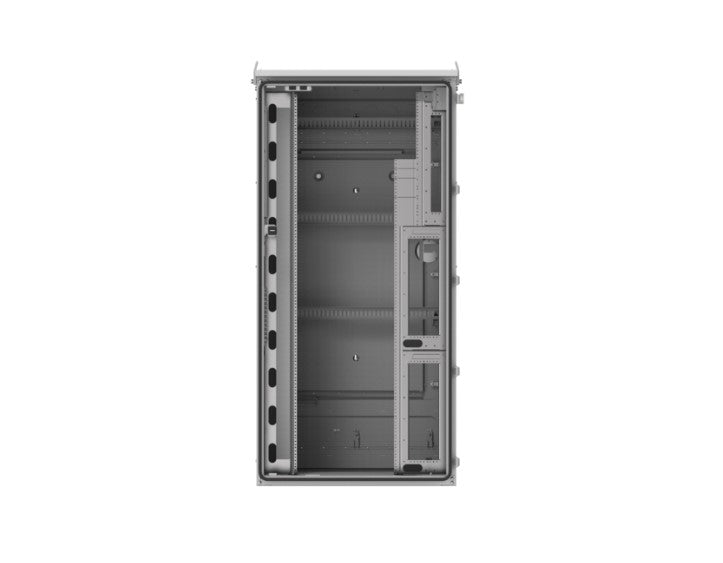

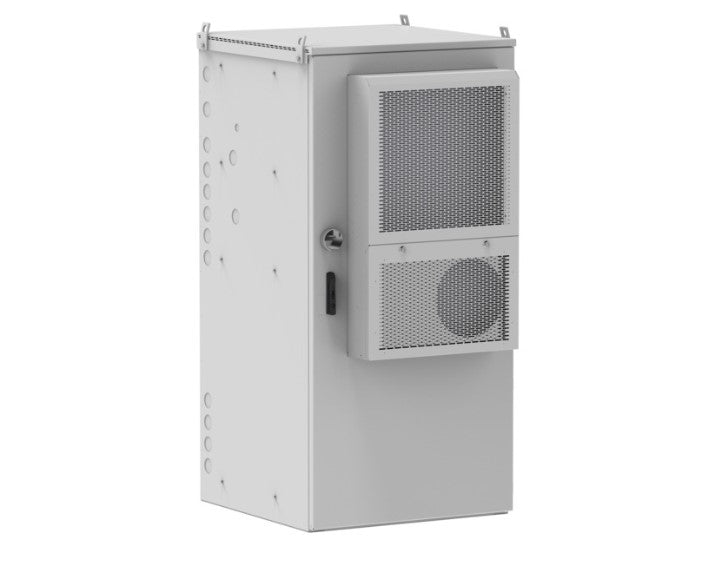

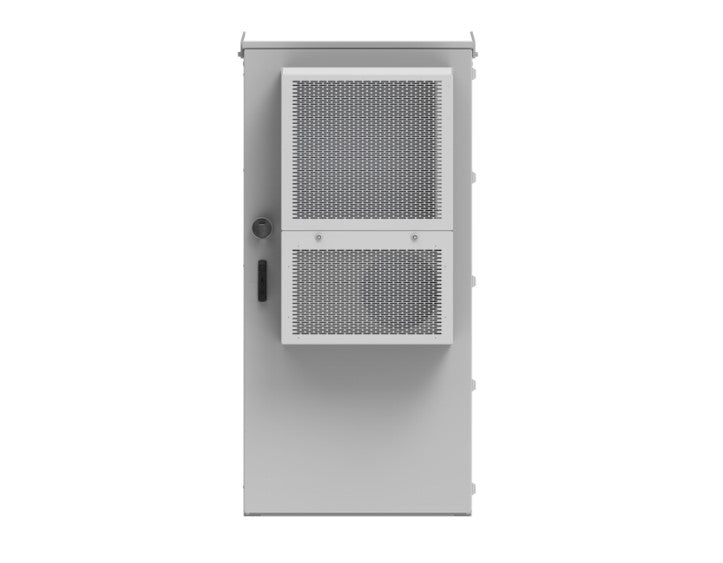

CommScope 760250058 | CMC-74 Equipment Cabinet, 4 kW Air Conditioner, DC
The cabinet is designed to house wireless telecom power equipment. Range of DC power systems, Fiber slack tray, cell site router and other servers equipped by customer. This cabinet provide mechanical and environmental protection for the equipment inside. Cooling of active equipment is achieved by DC rated 4100W Air Conditioner.
CommScope - 760250058 - Features
- Excellent Thermal Performance to be compatible with both Heat Exchanger andAir Conditioner.
- Provide enough space for the Power system and other network servers.
- Provide option for security/access control via Puck Lock system.
- Provide flexible access for the cable entrance.
- Provide flexible heater Solution for the cold ambient application.
- Provide flexible configurations to give best in class maximum equipmentrack mounting space (Up to 49 total RU)
- Platform products to share many parts including plinth, solar shield, and hybridcable storage units.
- Excellent cable management system.
Specifications
Specifications
CommScope - 760250058 - Specifications
| Product Type | Macro cell site enclosure |
|---|---|
| Rack Type | EIA 19 in | EIA 23 in |
| Noise Emission, maximum | 60 dBA |
| Height | 1879.600 mm | 74 in |
| Width | 914.400 mm | 36 in |
| Depth | 939.800 mm | 37 in |
| Alarm Output | Dry contacts |
| Cooling Capacity | 4100 W |
| Voltage | -48 Vdc |
| Finish | Powder coated | UV resistant |
| Material Type | Aluminum |
| Operating Temperature | -40 °C to +46 °C (-40 °F to +115 °F) |
| Weight, net | 238.136 kg | 525 lb |
