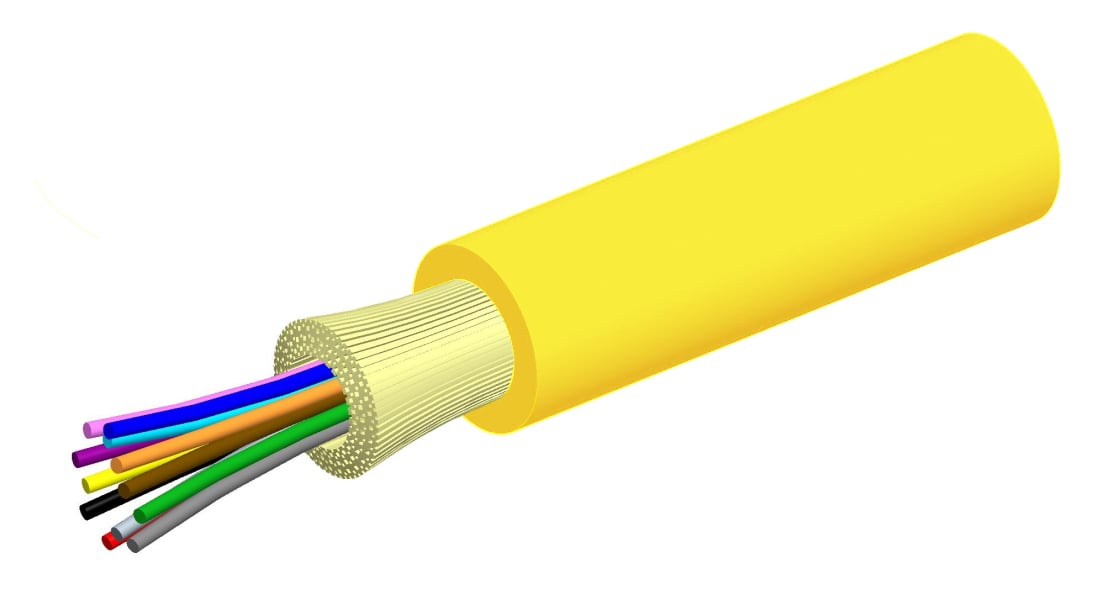

CommScope 760251512 | Indoor Plenum Rollable Ribbon Backbone Cable
Regular price
$4.06
Unit price
Brand: CommScope
|
SKU:
10426378
Regular price
$4.06
Unit price
Description
Description
CommScope 760251512 | Indoor Plenum Rollable Ribbon Backbone Cable
Specifications
Specifications
CommScope - 760251512 - Product Categories
- Cables
- Fiber Optic Cables
- Indoor Cables
CommScope - 760251512 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor cable |
| Product Series | P-MP |
CommScope - 760251512 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Indoor Plenum Rollable Ribbon Backbone Cable |
| Model Number | 760251512 | P-024-MP-RR-F12YL/8G1/99N |
| Cable Type | Cordage |
| Construction Type | Non-armored |
| Subunit Type | Gel-free |
| Fibers per Ribbon, quantity | 12 |
| Jacket Color | Yellow |
| Jacket Marking | Feet |
| Subunit, quantity | 1 |
| Fibers per Subunit, quantity | 24 |
| Total Fiber Count | 24 |
CommScope - 760251512 - Additional Information
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 3.8 mm | 0.150 in |
| Diameter Over Jacket | 5.4 mm | 0.213 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 43 mm | 1.693 in |
| Tensile Load, long term, maximum | 198 N | 44.512 lbf |
| Tensile Load, short term, maximum | 660 N | 148.374 lbf |
| Compression | 10 N/mm | 57.101 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 2.94 N-m | 26.021 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Optical Specifications | - |
| Fiber Type | G.657.A2/B2 | G.657.A2/B2 |
| Environmental Specifications | - |
| Installation temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | ANSI/ICEA S-83-596 | Telcordia GR-409 |
| Environmental Space | Plenum |
| Flame Test Listing | NEC OFNP (UL) and c(UL) |
