Brand: CommScope
|
SKU:
10270923

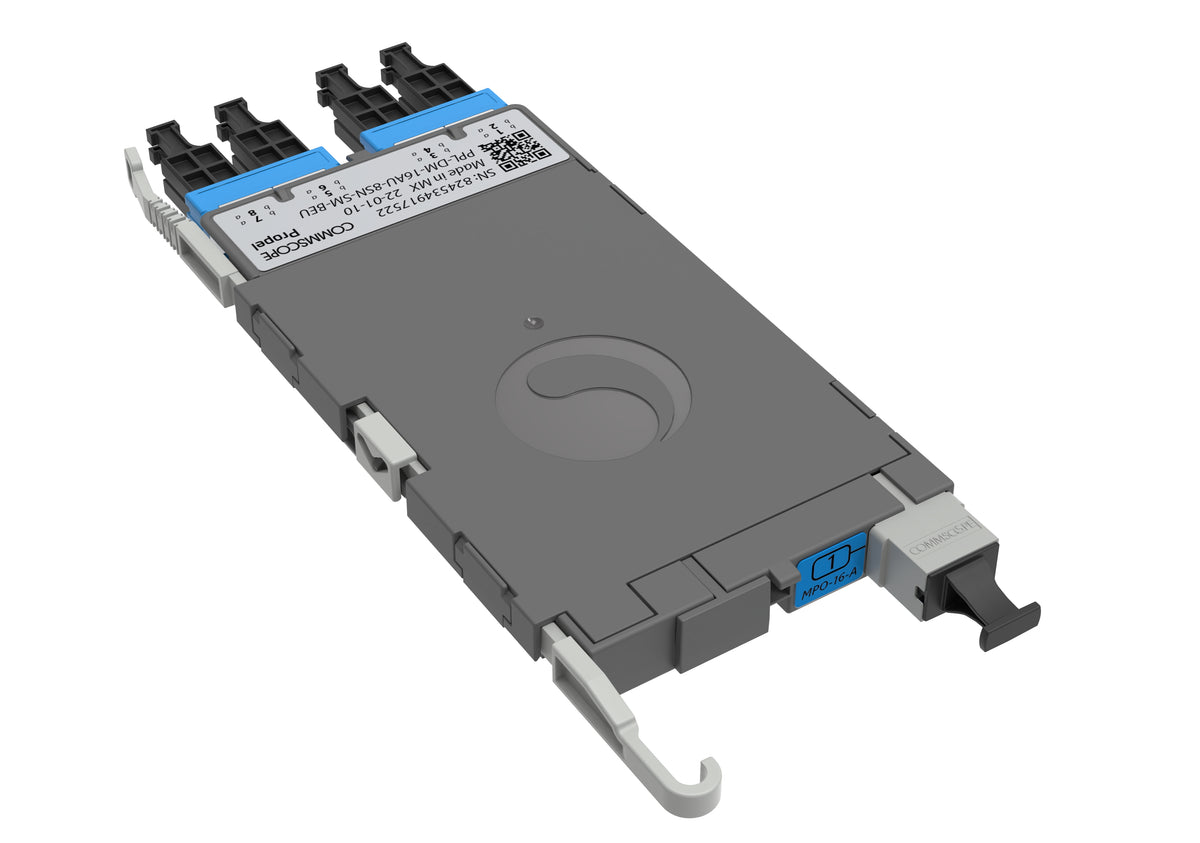

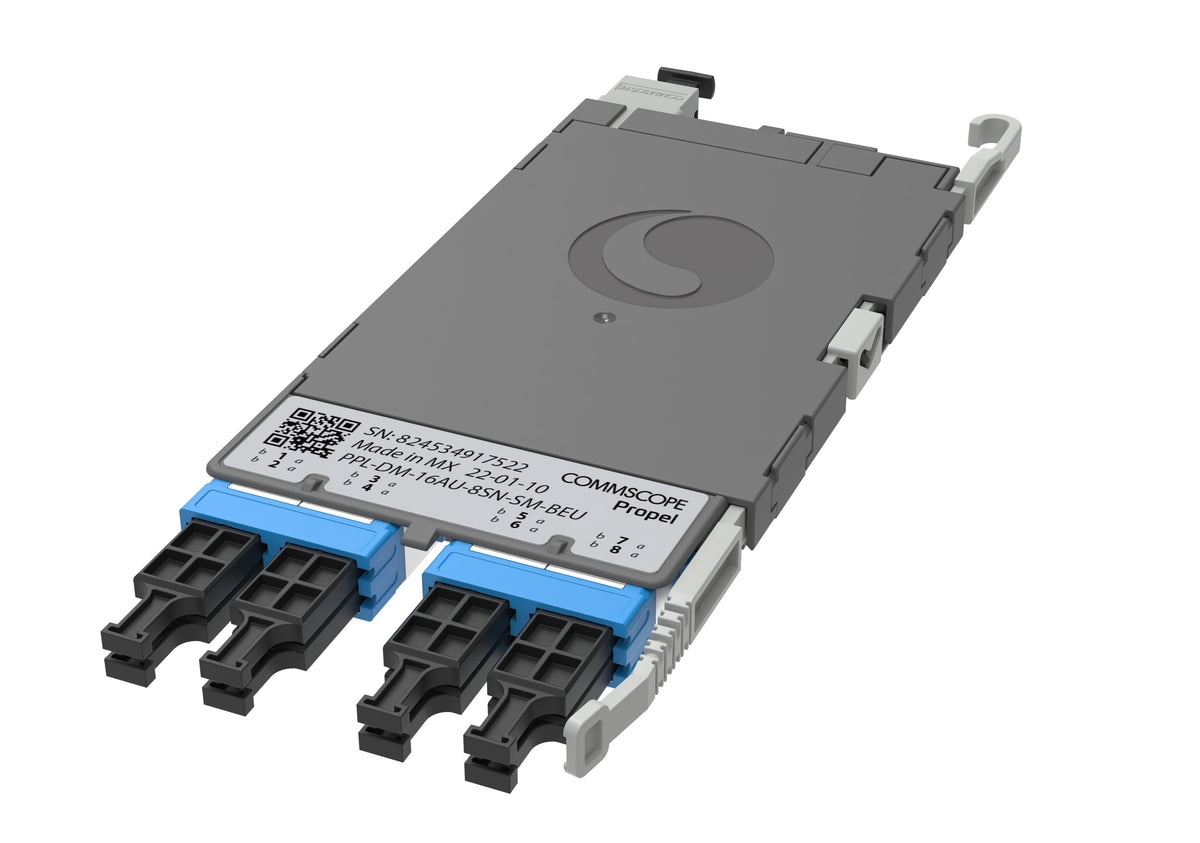

CommScope 760252355 | Propel ULL Singlemode MPO-16 Distribution Module, 8SN to 1X16f MPO/APC non-pinned, Method B Enhanced
Regular price
$1,338.33
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760252355 | Propel ULL Singlemode MPO-16 Distribution Mod...
Regular price
$1,338.33
Unit price
Brand: CommScope
|
SKU:
10270923
Regular price
$1,338.33
Unit price
Description
Description
CommScope 760252355 | Propel ULL Singlemode MPO-16 Distribution Module, 8SN to 1X16f MPO/APC non-pinned, Method B Enhanced
Specifications
Specifications
CommScope - 760252355 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Fiber Panels & Cassettes
CommScope - 760252355 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760252355 | PPL-DM-16AU-8SN-SM-BEU |
| Item Description | Propel ULL Singlemode MPO-16 Distribution Module, 8SN to 1X16f MPO/APC non-pinned, Method B Enhanced |
| Functionality | Breakout |
| Color, front | Blue |
| Color, rear | Gray |
| Interface, front | SN/UPC |
| Interface Feature, front | Dust caps |
| Interface, rear | MPO |
| Interface Feature, rear | APC | Dust caps | Key up/up | Unpinned |
| Polarity | Method B Enhanced (ULL) |
| Total Fibers, quantity | 16 |
| Total Ports, quantity, front | 8 |
| Total Ports, quantity, rear | 1 |
CommScope - 760252355 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Fiber module |
| Product Brand | Propel |
| Product Series | PPL |
CommScope - 760252355 - Physical Specifications
| Dimensions | - |
|---|---|
| Height | 11 mm | 0.433 in |
| Width | 131 mm | 5.157 in |
| Depth | 170 mm | 6.693 in |
| Optical Specifications | - |
| Fiber Mode | Singlemode |
| Fiber Type | OS2 |
| Insertion Loss, maximum | 0.6 dB |
| Environmental Specifications | - |
| Qualification Standards | IEC 61753-1 | TIA-568.3-D |
| Safety Standard | CE | CSA | UL | UL 62368 |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
