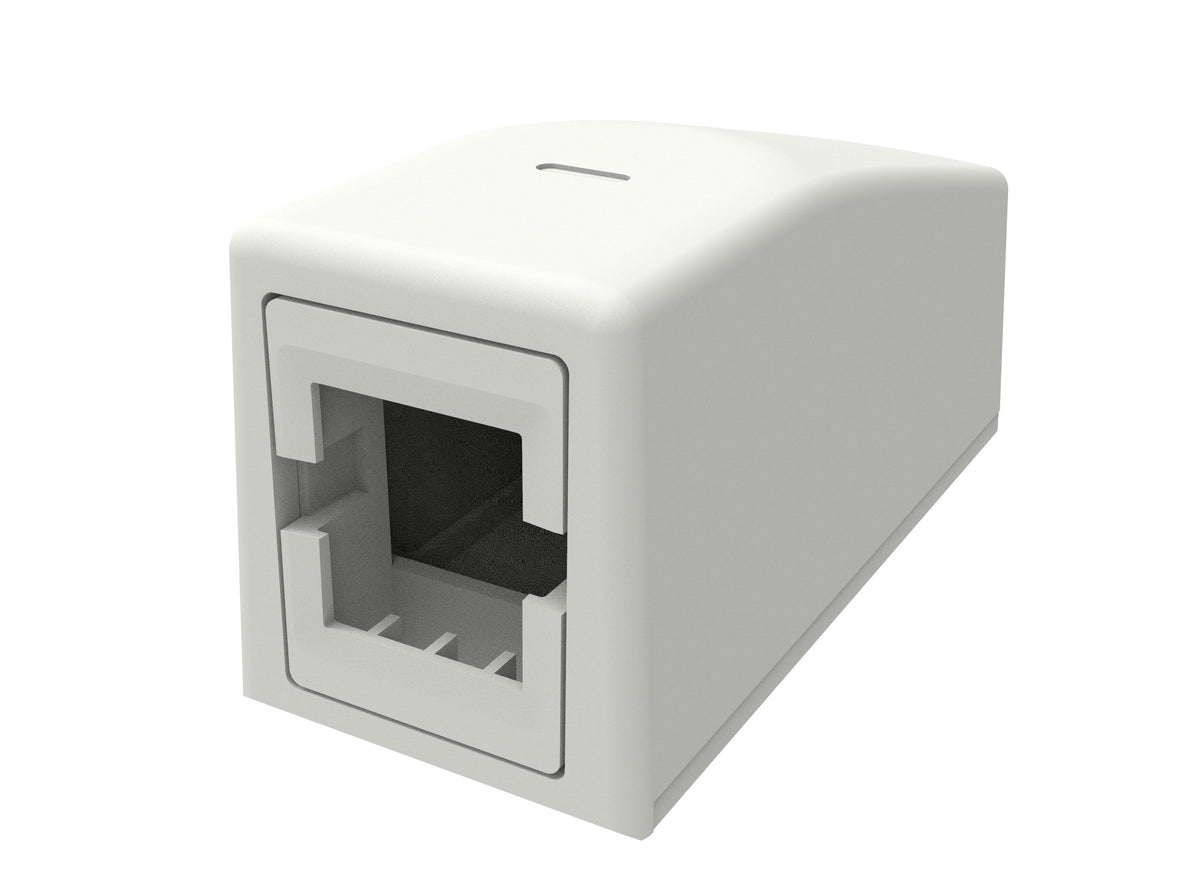

CommScope 760252766 | Surface Mount Box, plenum,universal, one port...
Regular price
$8.82
Unit price
Brand: CommScope
|
SKU:
10438550
Regular price
$8.82
Unit price
Description
Description
CommScope 760252766 | Surface Mount Box, plenum,universal, one port, white
Specifications
Specifications
CommScope - 760252766 - Product Categories
- Faceplates & Boxes
- Surface Mount & Zone Boxes
CommScope - 760252766 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Surface mount box |
CommScope - 760252766 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Surface Mount Box, plenum,universal, one port, white |
| Model Number | 760252766 | SMB-1P-262-PLENUM |
| Application | Used with KJ Series outlets with adapter | Used with M Series modular information outlet | Used with SL Series outlets |
| Color | Electrical white |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Port Marking Type | Icon |
| Total Ports, quantity | 1 |
CommScope - 760252766 - Additional Information
| Dimensions | - |
|---|---|
| Height | 33.8 mm | 1.331 in |
| Width | 31.3 mm | 1.232 in |
| Depth | 70.1 mm | 2.760 in |
| Material Specifications | - |
| Material Type | High-impact, flame retardant, thermoplastic, UL listed material |
| Environmental Specifications | - |
| Environmental Space | Indoor | Plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL | cUL |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Weight, net | 0.025 kg | 0.055 lb |
