Brand: CommScope
|
SKU:
10312759

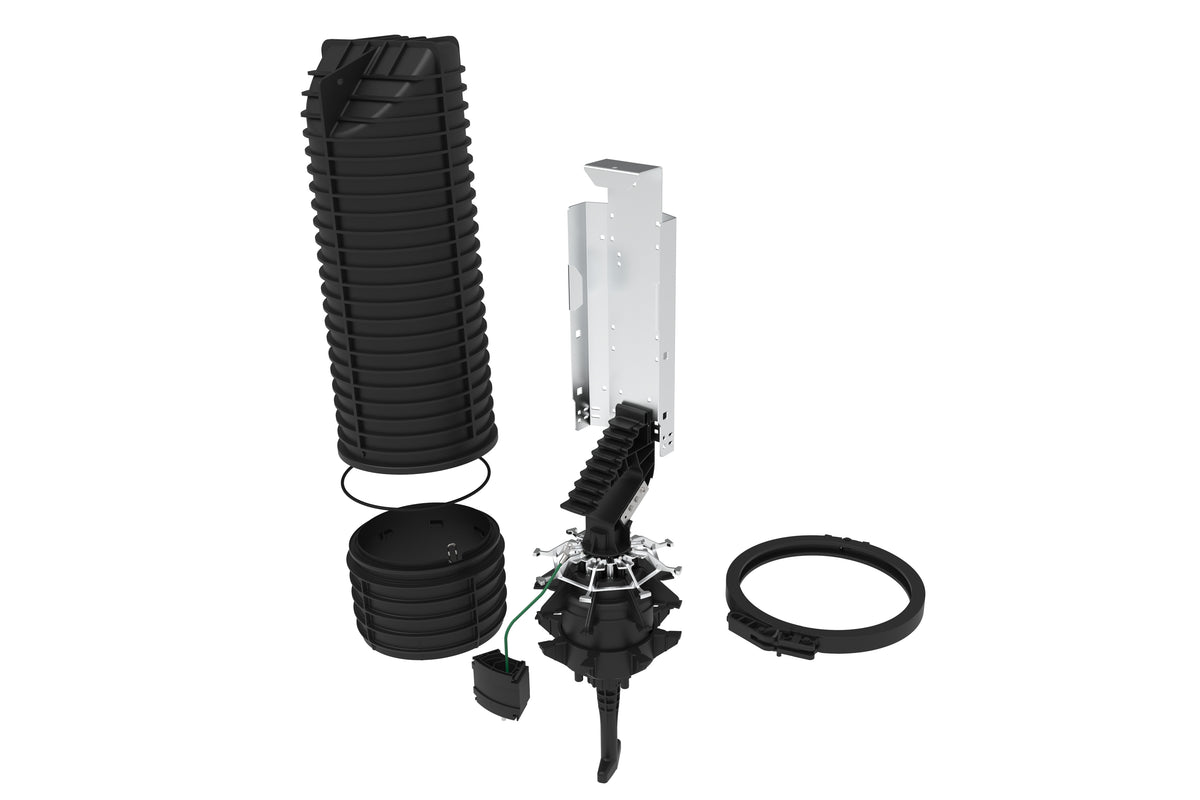

CommScope 760253908 | FOSC MSC (Modular Splice Closure), Empty housing, size E, Standard size basket included, with test valve
Regular price
$354.74
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760253908 | FOSC MSC (Modular Splice Closure), Empty hous...
Regular price
$354.74
Unit price
Brand: CommScope
|
SKU:
10312759
Regular price
$354.74
Unit price
Description
Description
CommScope 760253908 | FOSC MSC (Modular Splice Closure), Empty housing, size E, Standard size basket included, with test valve
Specifications
Specifications
CommScope - 760253908 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Closures & Terminals
- Fiber Splice Closures
CommScope - 760253908 - Product Classification
| Regional Availability | North America |
|---|---|
| Product Type | Single-ended, round fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC-MSC |
CommScope - 760253908 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FOSC MSC (Modular Splice Closure), Empty housing, size E, Standard size basket included, with test valve, Compatible with FOSC D-trays (not included) |
| Model Number | 760253908 | FOSC-MSC-E8-V |
| Cable Ports Quantity, total | 8 multi-out ports (64 cables) |
| Cable Sealing Type | Gel kit (optional) |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Flash Test Valve | Pre-installed |
| Mounting | Pole | Strand | Wall |
| Network Area Type | Distribution | Feeder |
| Splice Tray Included, quantity | 0 |
| Splicing Capacity, Mass Fusion, maximum | 1728 |
| Splicing Capacity, Single Fusion, maximum | 432 |
| Splicing Type, Supported | Mass fusion | Single fusion |
CommScope - 760253908 - Additional Information
| Dimensions | - |
|---|---|
| Length | 810 mm | 31.890 in |
| Length, with trigger | 960 mm | 37.795 in |
| Diameter | 256 mm | 10.079 in |
| Diameter, with clamp | 291 mm | 11.457 in |
| Main Cable Diameter, maximum | 27 mm | 1.063 in |
| Material Specifications | - |
| Material Type | Impact-resistant polymer |
| Environmental Specifications | - |
| Operating Temperature | -40 ºC to +65 ºC (-40 ºF to +149 ºF) |
| Environmental Space | Above ground | Below ground | Buried | Manhole |
| Qualification Standards | IEC 60529, IP68 + 5 m waterhead | IEC 61753-1 Ed2 (2018) |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
