Brand: CommScope
|
SKU:
10600903

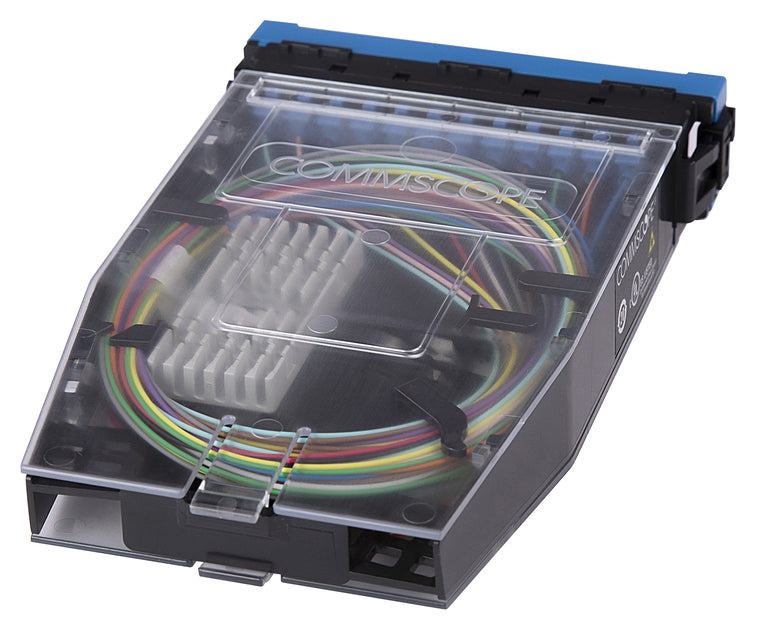

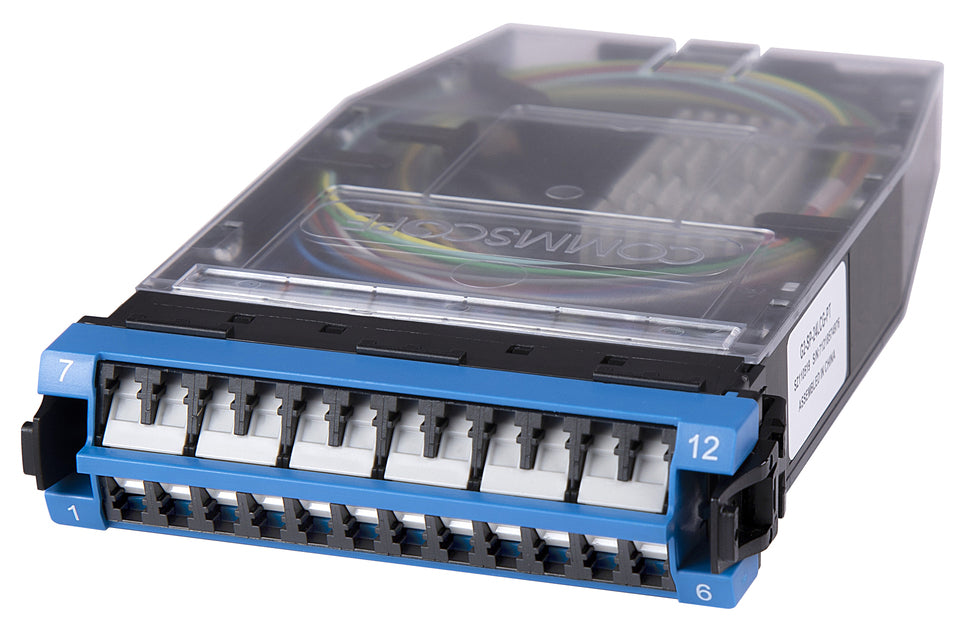

CommScope 760255890 | G2 Splice Cassette, 24LC/UPC with Internal Shutters, OS2, with Pigtails, Method B Enhanced
Regular price
$960.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760255890 | G2 Splice Cassette, 24LC/UPC with Internal Sh...
Regular price
$960.35
Unit price
Description
Description
CommScope 760255890 | G2 Splice Cassette, 24LC/UPC with Internal Shutters, OS2, with Pigtails, Method B Enhanced
Specifications
Specifications
CommScope - 760255890 - Specifications
| Product Type | Fiber cassette with pigtails |
|---|---|
| Color, front | Blue |
| Interface, front | LC/UPC |
| Interface, rear | Stranded pigtail |
| Polarity | Method B Enhanced |
| Total Fibers, quantity | 24 |
| Height | 26.416 mm | 1.04 in |
| Width | 96.52 mm | 3.8 in |
| Depth | 165.354 mm | 6.51 in |
| Alignment Sleeve Material | Zirconia |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, maximum | 0.25 dB |
| Return Loss, minimum | 50 dB |
| Qualification Standards | IEC 61753-1 | TIA-568.3-D |
| UNSPSC Code | 43223300 |
