Brand: CommScope
|
SKU:
1

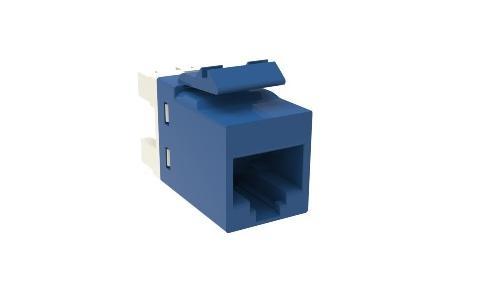

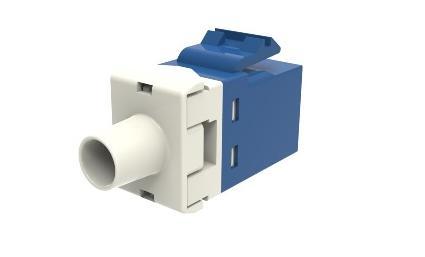

CommScope 760257178 | SL-Series Modular Jack, RJ45, Cat6 Unshielded, Blue
Regular price
$14.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257178 | SL-Series Modular Jack, RJ45, Cat6 Unshielded...
Regular price
$14.41
Unit price
Description
Description
CommScope 760257178 | SL-Series Modular Jack, RJ45, Cat6 Unshielded, Blue
Specifications
Specifications
CommScope - 760257178 - Specifications
| Portfolio | Uniprise |
|---|---|
| Product Type | Modular jack |
| Product Series | USL Series |
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Blue |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Termination Type | IDC |
| Wiring | T568A | T568B |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG | 26 AWG |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 ?C | 1.5 A @ 68 ?F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 MOhm |
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| PoE Durability | Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles |
