Brand: CommScope
|
SKU:
10514317

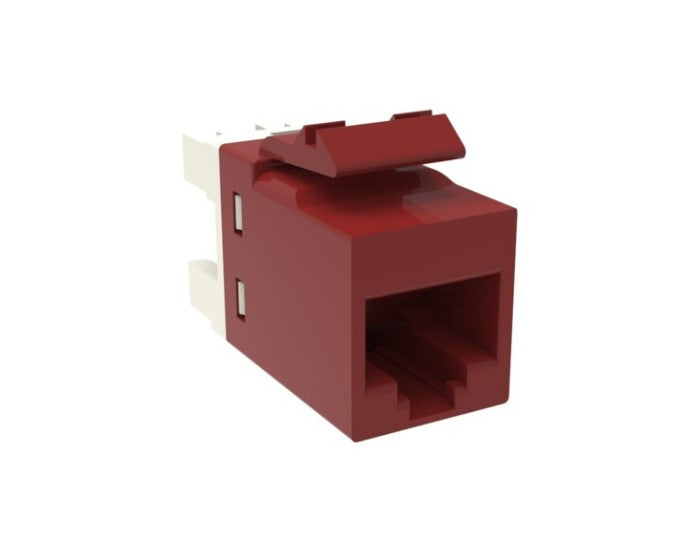

CommScope 760257179 | SL-Series Modular Jack, RJ45, Cat6 Unshielded, Red
Regular price
$14.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257179 | SL-Series Modular Jack, RJ45, Cat6 Unshielded...
Regular price
$14.36
Unit price
Description
Description
CommScope 760257179 | SL-Series Modular Jack, RJ45, Cat6 Unshielded, Red
Specifications
Specifications
CommScope - 760257179 - Specifications
| Portfolio | Uniprise® |
|---|---|
| Product Type | Modular jack |
| Product Series | USL Series |
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Red |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Termination Type | IDC |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Contact Plating Material | Precious metals |
| Material Type | High-impact, flame retardant, thermoplastic | PC+ABS |
| Termination Contact Plating | Nickel |
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
