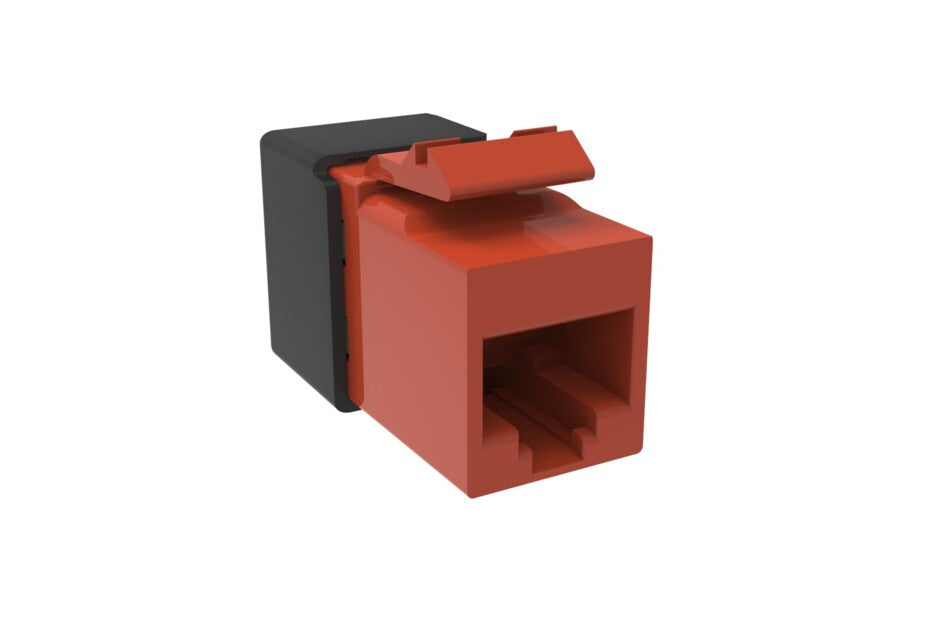

CommScope 760257196 | SL-Series Modular Jack, Rj45, Cat6A Unshielde...
Regular price
$19.68
Unit price
Brand: CommScope
|
SKU:
10495728
Regular price
$19.68
Unit price
Description
Description
CommScope 760257196 | SL-Series Modular Jack, Rj45, Cat6A Unshielded, Orange
Specifications
- Color is more prominently visible across the body of the jack
- Allows for all jack variants to be terminated with the SL termination tool
- Lacing fixture of the SL termination tool is used to establish the cable termination
Specifications
Specifications
CommScope - 760257196 - Specifications
- Color is more prominently visible across the body of the jack
- Allows for all jack variants to be terminated with the SL termination tool
- Lacing fixture of the SL termination tool is used to establish the cable termination
CommScope - 760257196 - Specifications
| UNSPSC Code | 39121444 |
|---|---|
| Portfolio | Uniprise® |
| Product Type | Modular jack |
| Product Series | USL Series |
| ANSI/TIA Category | 6A |
| Cable Type | Unshielded |
| Color | Orange |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 5 times |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
| Wiring | T568A | T568B |
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 16.13 mm | 0.635 in |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Plug to Jack Mating Cycles | Complies to IEC 60603-7 series |
