CommScope 760257247 | SL-Series Modular Jack, Rj45, Cat6 Shielded, ...
Regular price
$18.09
Unit price
Brand: CommScope
|
SKU:
10494238
Regular price
$18.09
Unit price
Description
Description

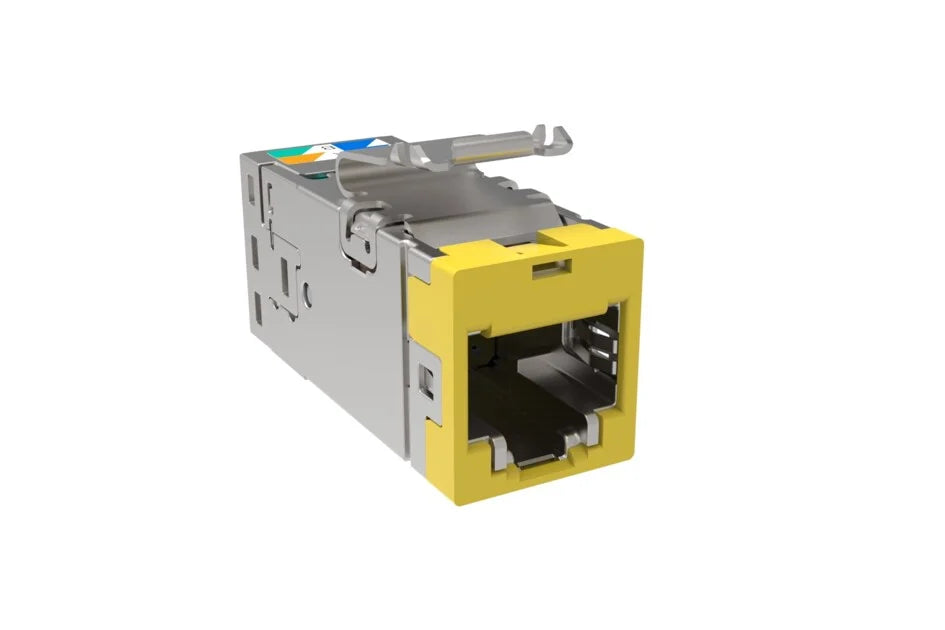

CommScope 760257247 | SL-Series Modular Jack, Rj45, Cat6 Shielded, Yellow
Specifications
- Fits all existing SL panels and faceplates
- Universal latch for SL series
- 9 Different color options – Replaceable color caps
- Terminated with SL Series termination tool
- Wire holder cut off during termination
- Universal wiring label
- Easy re-termination
Specifications
Specifications
CommScope - 760257247 - Specifications
- Fits all existing SL panels and faceplates
- Universal latch for SL series
- 9 Different color options – Replaceable color caps
- Terminated with SL Series termination tool
- Wire holder cut off during termination
- Universal wiring label
- Easy re-termination
CommScope - 760257247 - Specifications
| Category | Category 6 |
|---|---|
| Termination | Idc |
| Wiring | A/B Universal |
| UNSPSC Code | 39121444 |
| Portfolio | Uniprise® |
| Product Type | Modular jack |
| Product Series | SLX Series |
| ANSI/TIA Category | 6 |
| Cable Type | Shielded |
| Color | Yellow |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Outlet Type | Standard |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E |
| Wiring | T568A | T568B |
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 16.13 mm | 0.635 in |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Plug to Jack Mating Cycles | Complies to IEC 60603-7 series |
