Brand: CommScope
|
SKU:
10576545

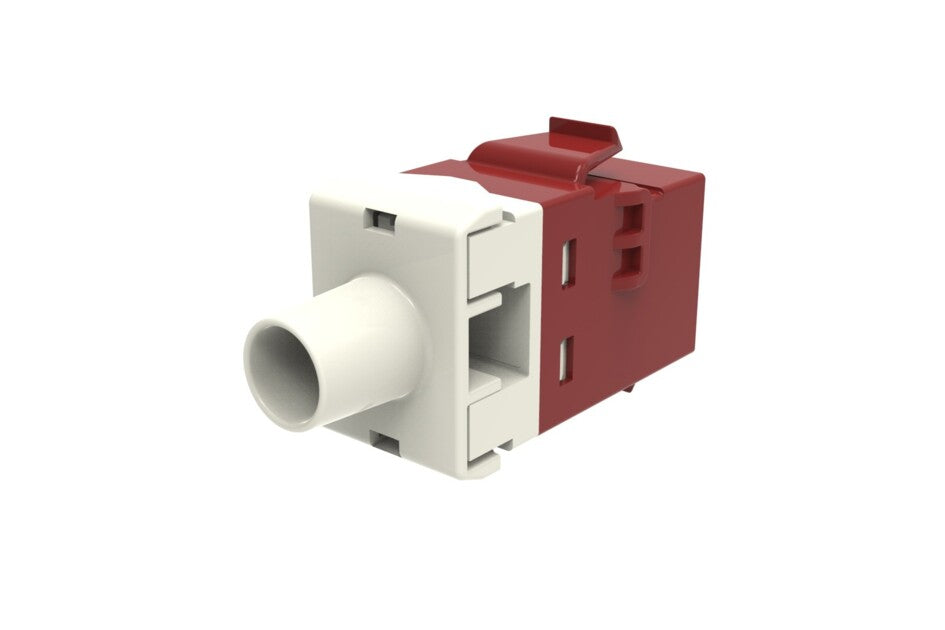

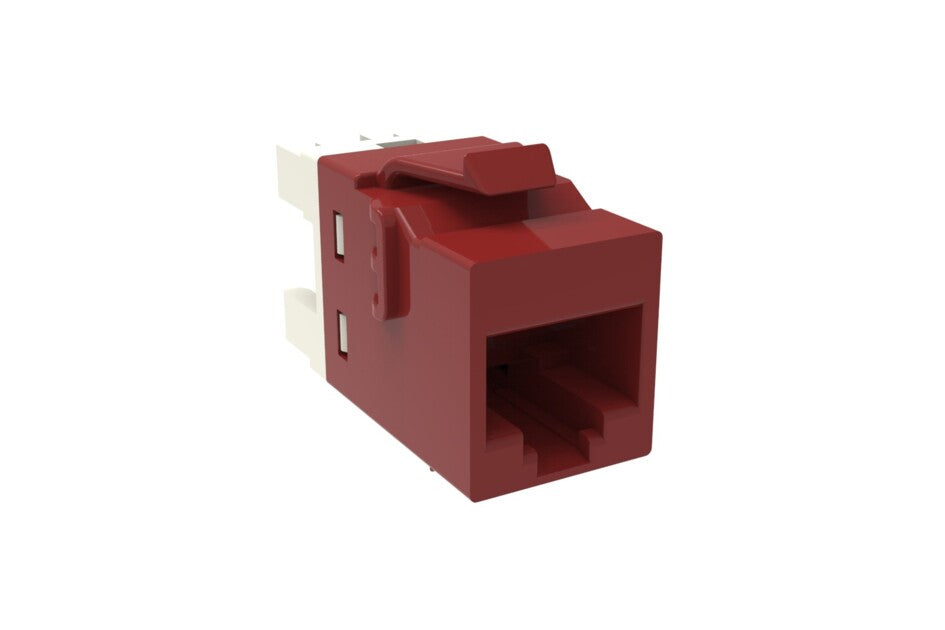

CommScope 760257282 | KJ-Series Modular Jack, RJ45, Cat6 Unshielded, Red
Regular price
$12.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257282 | KJ-Series Modular Jack, RJ45, Cat6 Unshielded...
Regular price
$12.28
Unit price
Description
Description
CommScope 760257282 | KJ-Series Modular Jack, RJ45, Cat6 Unshielded, Red
Specifications
Specifications
CommScope - 760257282 - Specifications
| Manufacturer Part Number | 760257282 |
|---|---|
| Brand Name | CommScope |
| Product Type | Modular jack |
| Cable Type | Unshielded |
| Color | Red |
| Conductor Type | Solid | Stranded |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG | 26 AWG |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 °C | 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 MOhm |
| Material Type | High-impact, flame retardant, thermoplastic | PC+ABS |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
