Brand: CommScope
|
SKU:
10549674

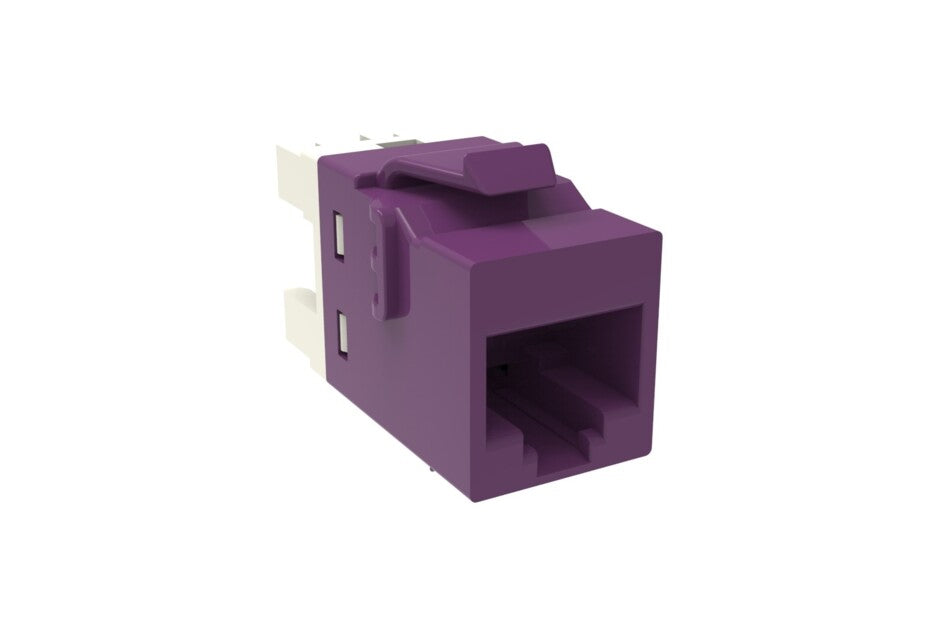

CommScope 760257285 | KJ-Series Modular Jack, RJ45, Cat6 Unshielded, Violet
Regular price
$12.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257285 | KJ-Series Modular Jack, RJ45, Cat6 Unshielded...
Regular price
$12.28
Unit price
Description
Description
CommScope 760257285 | KJ-Series Modular Jack, RJ45, Cat6 Unshielded, Violet
Specifications
Specifications
CommScope - 760257285 - Specifications
| Portfolio | Uniprise |
|---|---|
| Product Type | Modular jack |
| Product Series | UKJ Series |
| ANSI/TIA Category | 6 |
| Cable Type | Unshielded |
| Color | Violet |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Termination Type | IDC |
| Wiring | T568A | T568B |
| Compatible Conductor Gauge, solid | 22 AWG | 24 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG | 26 AWG |
| Contact Plating Material | Precious metals |
| Material Type | High-impact, flame retardant, thermoplastic | PC+ABS |
| Termination Contact Plating | Nickel |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Plug to Jack Mating Cycles | Complies to IEC 60603-7 series |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| 1 | - |
