Brand: CommScope
|
SKU:
10527950

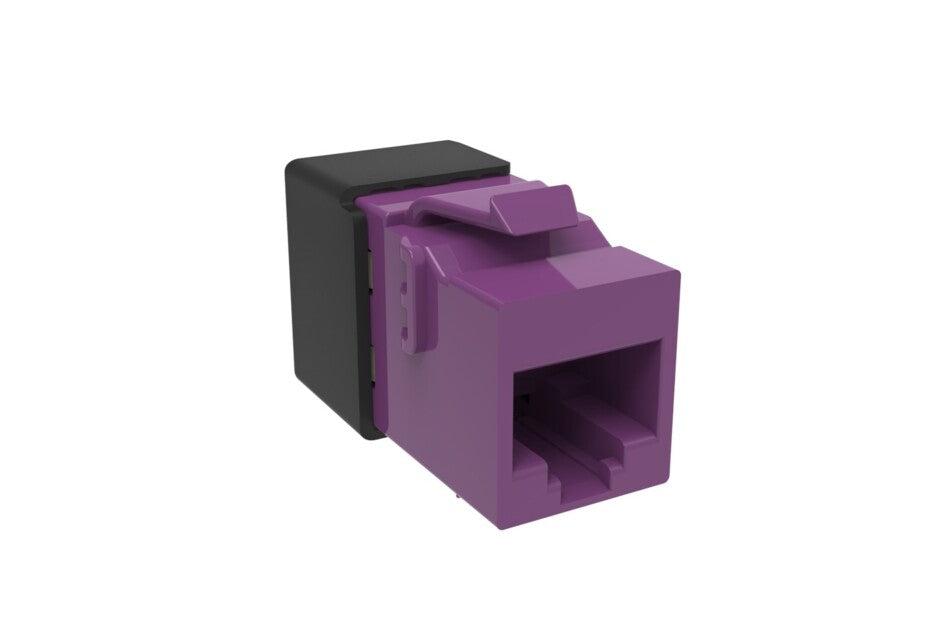

CommScope 760257294 | KJ-Series Modular Jack, RJ45, Cat6A Unshielded, Violet
Regular price
$17.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257294 | KJ-Series Modular Jack, RJ45, Cat6A Unshielde...
Regular price
$17.39
Unit price
Description
Description
CommScope 760257294 | KJ-Series Modular Jack, RJ45, Cat6A Unshielded, Violet
Specifications
Specifications
CommScope - 760257294 - Specifications
| Portfolio | Uniprise |
|---|---|
| Product Type | Modular jack |
| Product Series | UKJ Series |
| ANSI/TIA Category | 6A |
| Cable Type | Unshielded |
| Color | Violet |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | Keystone faceplates and panels |
| Outlet Type | Standard |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
| Wiring | T568A | T568B |
| Panel Cutout, recommended | 14.78 x 19.30 mm (0.58 x 0.76 in) |
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 16.13 mm | 0.635 in |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Material Type | High-impact, flame retardant, thermoplastic | PC+ABS | Polycarbonate |
| Plug to Jack Mating Cycles | Complies to IEC 60603-7 series |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| 1 | Bag |
