Brand: CommScope
|
SKU:
10528042

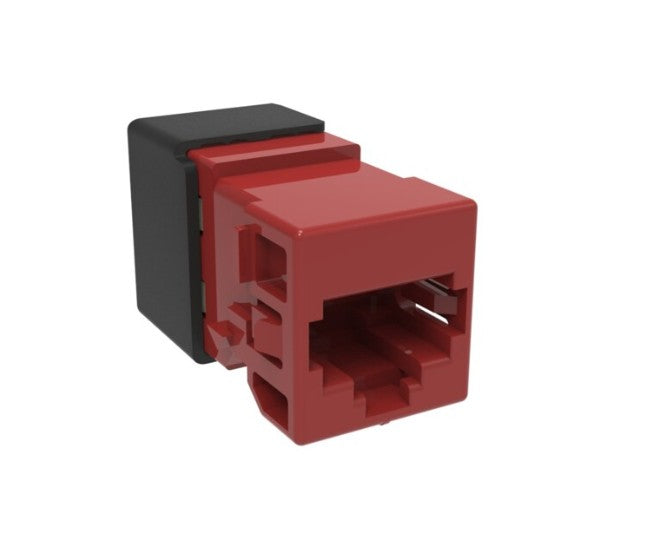

CommScope 760257322 | M-Series Modular Jack, RJ45, Cat6A Unshielded, Red
Regular price
$22.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257322 | M-Series Modular Jack, RJ45, Cat6A Unshielded...
Regular price
$22.14
Unit price
Description
Description
CommScope 760257322 | M-Series Modular Jack, RJ45, Cat6A Unshielded, Red
CommScope - 760257322 - Features
- Color is more prominently visible across the body of the jack
- Allows for all jack variants to be terminated with the SL termination tool
- Lacing fixture of the SL termination tool is used to establish the cable termination
Specifications
Specifications
CommScope - 760257322 - Specifications
| Portfolio | Uniprise® |
|---|---|
| Product Type | Modular jack |
| Product Series | UNJ Series |
| ANSI/TIA Category | 6A |
| Cable Type | Unshielded |
| Color | Red |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | M Series faceplates and panels |
| Outlet Type | Standard |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Panel Cutout, recommended | 16.66 x 17.68 mm (0.66 x 0.70 in) |
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 17.48 mm | 0.688 in |
| Width | 16.5 mm | 0.65 in |
| Depth | 30.48 mm | 1.2 in |
| Compatible Cable Diameter, maximum | 7.24 mm | 0.285 in |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Material Type | High-impact, flame retardant, thermoplastic | PC+ABS | Polycarbonate |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
