Brand: CommScope
|
SKU:
CMP-00423SMX-C6AU-01

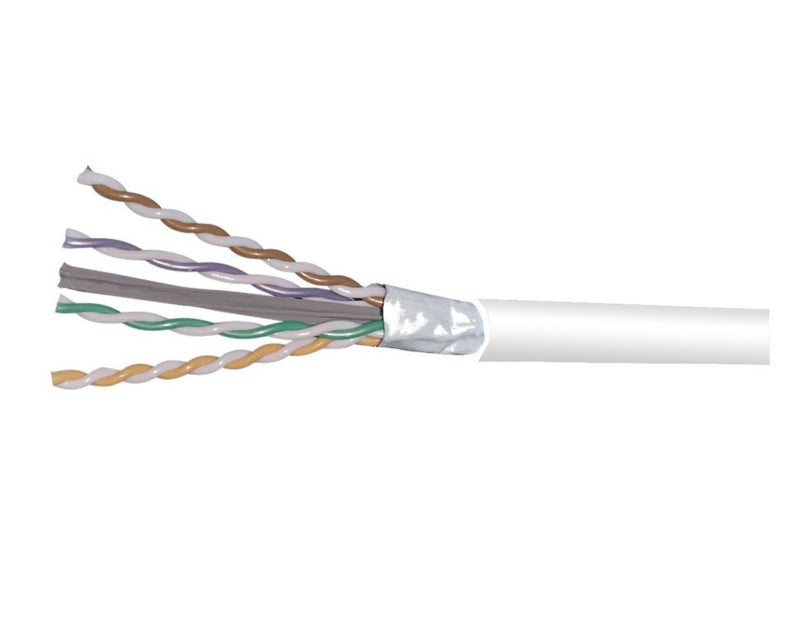

CommScope 760257686 | GigaSPEED X10D 2091SDB ETL Verified Category 6A U/UTP Cable, Plenum, White Jacket, 4 Pair Count, 1000 ft (305 m) Length
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760257686 | GigaSPEED X10D 2091SDB ETL Verified Category ...
Regular price
$3.00
Unit price
Brand: CommScope
|
SKU:
CMP-00423SMX-C6AU-01
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760257686 | GigaSPEED X10D 2091SDB ETL verified Category 6A U/UTP Cable, plenum, White Jacket, 4 pair count, 1000 ft (305 m) length
Specifications
Specifications
CommScope - 760257686 - Specifications
| Portfolio | SYSTIMAX |
|---|---|
| Product Type | Twisted pair cable |
| Product Brand | GigaSPEED X10D |
| Product Number | 2091SDB |
| ANSI/TIA Category | 6A |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | White |
| Note | Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards | ANSI/TIA-568.2-D |
| Cable Length | 304.8 m | 1000 ft |
| Diameter Over Insulated Conductor | 1.115 mm | 0.0439 in |
| Diameter Over Jacket, nominal | 6.325 mm | 0.249 in |
| dc Resistance Unbalance, maximum | 0.04 |
| dc Resistance, maximum | 8 ohms/100 m | 2.438 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac | 2500 Vdc |
| LP (Limited Power) Rating | 0.004861111111111111 |
| Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 0.7 |
| Operating Frequency, maximum | 500 MHz |
| Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
| Conductor Material | Bare copper |
| Insulation Material | FEP |
| Pulling Tension, maximum | 11.34 kg | 25 lb |
| 0 °C to +60 °C (+32 °F to +140 °F) | -20 °C to +75 °C (-4 °F to +167 °F) |
| UNSPSC Code | 26121609 |
