Brand: CommScope
|
SKU:
10520395

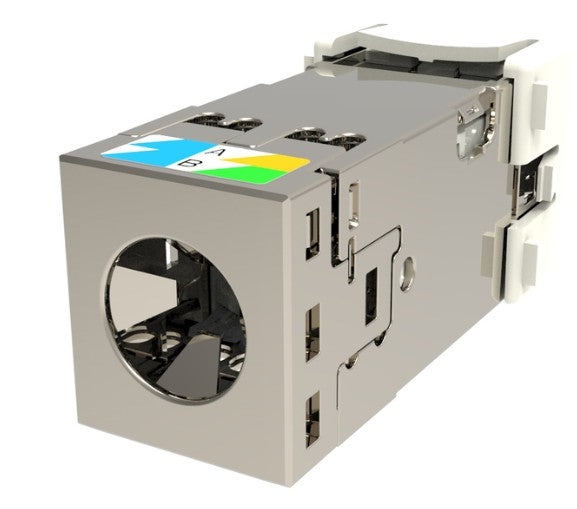

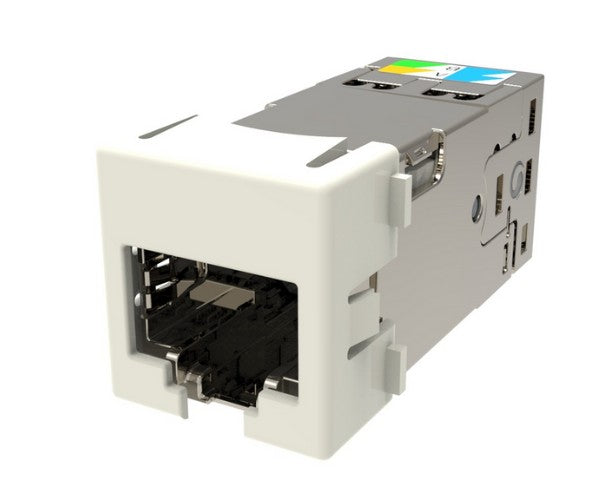

CommScope 760258301 | GigaSHIELD X10D M-Series Modular Jack, RJ45, Cat6A Shielded, White
Regular price
$591.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760258301 | GigaSHIELD X10D M-Series Modular Jack, RJ45, ...
Regular price
$591.00
Unit price
Description
Description
CommScope 760258301 | GigaSHIELD X10D M-Series Modular Jack, RJ45, Cat6A Shielded, White
CommScope - 760258301 - Features
- Fits all existing M-series faceplates
- Not for use in shielded panels
- Wire holder cut off during termination
- Universal wiring label
- Easy re-termination
- Terminated with JTT Series termination tool
Specifications
Specifications
CommScope - 760258301 - Specifications
| Product Type | Modular jack |
|---|---|
| Cable Type | Shielded |
| Color | White |
| Conductor Type | Solid | Stranded |
| Height | 16.13 mm | 0.635 in |
| Width | 14.44 mm | 0.569 in |
| Depth | 36.8 mm | 1.449 in |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Material Type | PC+ABS | Zamak |
| Termination Contact Plating | Tin |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Packaging Material | Eco-friendly, single-use plastics-free |
