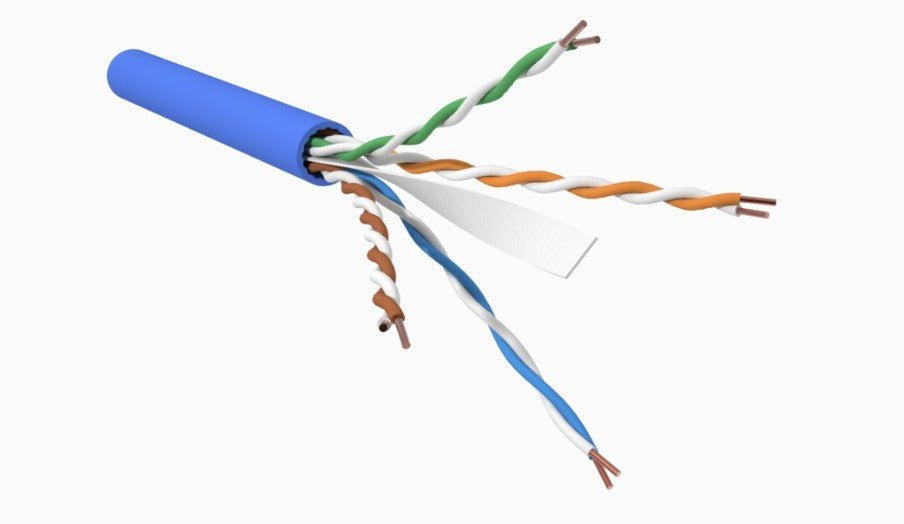

CommScope 760258450 | Systimax Gigaspeed Xl5 2081b Etl Verified Category 6 U/UTP Cable, Plenum, Blue Jacket, 4 Pair Count, 1000 Ft (305 M)

$2.52

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

CommScope 760258450 | Systimax Gigaspeed Xl5 2081b Etl Verified Category 6 U/UTP Cable, Plenum, Blue Jacket, 4 Pair Count, 1000 Ft (305 M)

Specifications

CommScope - 760258450 - Specifications

Portfolio	SYSTIMAX®
Product Type	Twisted pair cable
Product Brand	GigaSPEED XL5™
Product Number	2081B
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	Blue
Pairs, quantity	4
Separator Type	Bisector
Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	1.016 mm \| 0.04 in
Diameter Over Jacket, nominal	5.842 mm \| 0.23 in
Jacket Thickness	0.559 mm \| 0.022 in
Conductor Gauge, singles	23 AWG
Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	0.05
dc Resistance, maximum	7.61 ohms/100 m \| 2.32 ohms/100 ft
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Conductor Material	Bare copper
Insulation Material	FEP \| Polyolefin
Jacket Material	PVC
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Cable weight	43.157 kg/km \| 29 lb/kft

Documents and Downloads

CommScope 760258450 Data Sheet
