Brand: CommScope | SKU: CMP-00423SMX-C6U-01

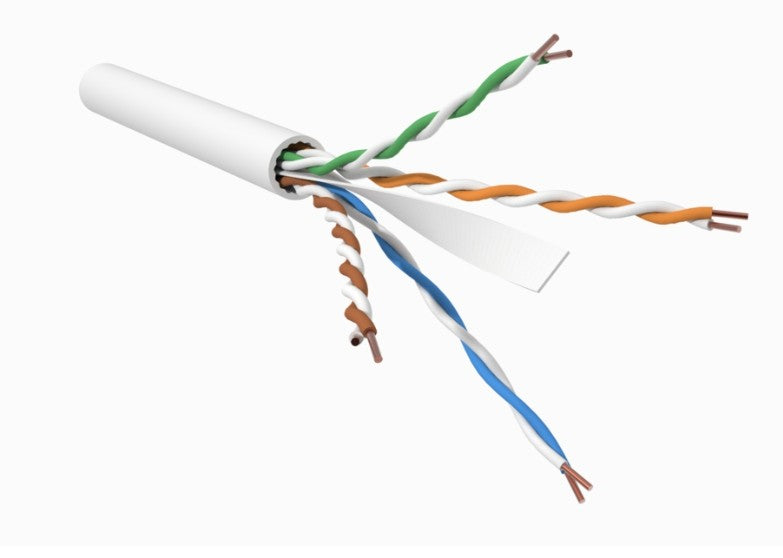

CommScope 760258452 | Systimax Gigaspeed Xl5™ 2081b Etl Verified Category 6 U/utp Cable, Plenum, White Jacket, 4 Pair Count, 1000 Ft

$2.52

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

CommScope 760258452 | Systimax Gigaspeed Xl5™ 2081b Etl Verified Category 6 U/utp Cable, Plenum, White Jacket, 4 Pair Count, 1000 Ft

Specifications

CommScope - 760258452 - Specifications

Portfolio	SYSTIMAX®
Product Type	Twisted pair cable
Product Brand	GigaSPEED XL5™
Product Number	2081B
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	White
Pairs, quantity	4
Separator Type	Bisector
Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	1.016 mm \| 0.04 in
Diameter Over Jacket, nominal	5.842 mm \| 0.23 in
Jacket Thickness	0.559 mm \| 0.022 in
Conductor Gauge, singles	23 AWG
Conductor Material	Bare copper
Insulation Material	FEP \| Polyolefin
Jacket Material	PVC
Separator Material	Flame retardant polyolefin
Pulling Tension, maximum	11.34 kg \| 25 lb
Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space	Plenum
Temperature Rating, UL	75 °C \| 167 °F

Documents and Downloads

CommScope 760258452 Data Sheet
