Brand: CommScope
|
SKU:
10566727

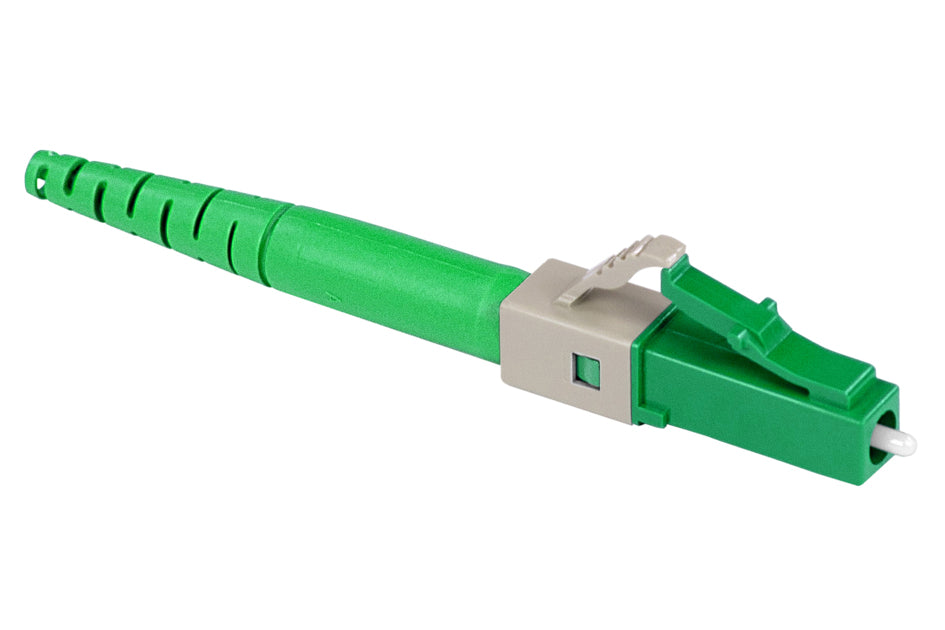

CommScope 760258741 | Qwik-fuse Connector, LC, Single Mode-APC, Green, for 250µm/900µm, 12 Per Pack
Regular price
$250.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760258741 | Qwik-fuse Connector, LC, Single Mode-APC, Gre...
Regular price
$250.48
Unit price
Description
Description
CommScope 760258741 | Qwik-fuse Connector, LC, Single Mode-APC, Green, for 250µm/900µm, 12 Per Pack
Specifications
Specifications
CommScope - 760258741 - Specifications
| Product Type | Fiber connector |
|---|---|
| Product Brand | Qwik | TeraSPEED® |
| Product Series | Qwik-Fuse |
| Body Style | BTW |
| Color, boot | Green |
| Color, housing | Green |
| Ferrule Geometry | Factory polished |
| Interface | LC/APC |
| Tube Length | 32 mm | 1.260 in |
| Compatible Cable Diameter | 0.25 mm | 0.01 in | 0.9 mm | 0.035 in |
| Cable Retention Strength, maximum | 0.74 lb @ 0 ° | 1.03 lb @ 0 ° |
| Fiber Mode | Singlemode |
| Fiber Type | OS2 |
| Optical Components Standard | ANSI/TIA-568. 3-D | GR-326-CORE | IEC 61753-1 |
| Insertion Loss, maximum | 0.3 dB |
| Insertion Loss, typical | 0.15 dB |
| Return Loss, minimum | 65 dB |
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
