Brand: CommScope
|
SKU:
10538887

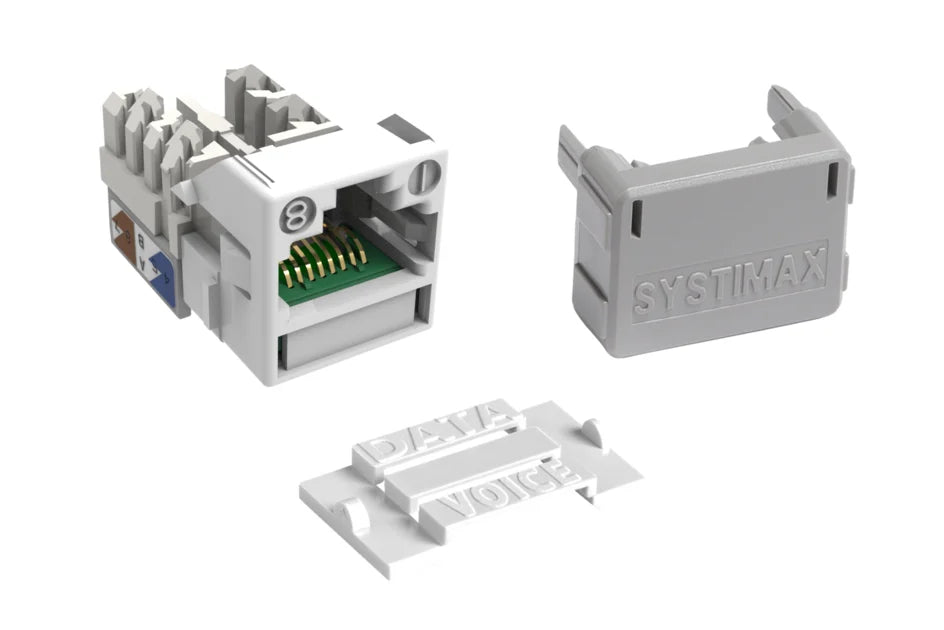

CommScope 760258934 | PowerSUM M-Series Modular Jack, RJ45, Cat5e Unshielded, ProWhite
Regular price
$13.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760258934 | PowerSUM M-Series Modular Jack, RJ45, Cat5e U...
Regular price
$13.32
Unit price
Description
Description
CommScope 760258934 | PowerSUM M-Series Modular Jack, RJ45, Cat5e Unshielded, ProWhite
CommScope - 760258934 - Features
- Meets or exceeds the Category 5 and Category 5e requirements in ISO/IEC 11801 (2002), EN50173-1 (2002) and ANSI/TIA-568-C.2
- Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
- Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
- Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
- Universal design and label supports both T568 A & B wiring
- IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
- Low-profile rear protective strain relief cap, protects against contamination and secures the connection
Specifications
Specifications
CommScope - 760258934 - Specifications
| Product Type | Modular jack |
|---|---|
| ANSI/TIA Category | 5e |
| Cable Type | Unshielded |
| Color | Pro white |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting Note | Color matches with M-series Pro white Faceplates |
| Termination Type | IDC |
| Height | 19.4 mm | 0.764 in |
| Width | 21.08 mm | 0.830 in |
| Depth | 30.2 mm | 1.189 in |
| Contact Resistance Variation, maximum | 20 mOhm |
| Contact Resistance, maximum | 100 mOhm |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | High-impact, flame retardant, thermoplastic |
| Termination Contact Plating | Nickel |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Packaging Type | Bag |
