Description
Description

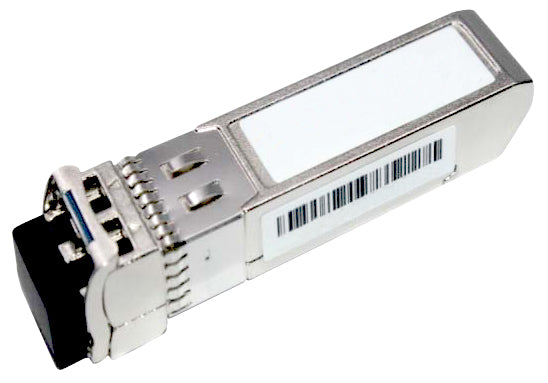

CommScope 7801342 | Small form factor pluggable+ Module, 10G BASE, CWDM, Singlemode
Specifications
Specifications
CommScope - 7801342 - Product Categories
- Splitters, Combiners & Multiplexers
- Optical Passives
- Optical Modules
CommScope - 7801342 - Product Classification
| Product Type | Optical module |
|---|---|
| Product Series | SFP+ |
CommScope - 7801342 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Small form factor pluggable+ Module, 10G BASE, CWDM, Singlemode |
| Model Number | 7801342 | SFP+, 10GBase CWDM-510, up to 40 km |
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local CommScope representative. |
CommScope - 7801342 - Additional Information
| Dimensions | - |
|---|---|
| Height | 12 mm | 0.472 in |
| Width | 14 mm | 0.551 in |
| Depth | 57 mm | 2.244 in |
| Optical Specifications | - |
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 4 dBm |
| Average Optical Output Power, minimum | -1 dBm |
| Rx/Tx Power Accuracy | ±3dB / ±3dB |
| Operating Wavelength | 1260 – 1620 nm (Rx) | 1511 nm |
| Receiver Sensitivity at Bandwidth Range | -15.8 dBm @ 9.95–10.5 Gb/s |
| Receiver Overload | -1 dBm |
| Environmental Specifications | - |
| Operating Temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
| Packaging and Weights | - |
| Height, packed | 20 mm | 0.787 in |
| Width, packed | 105 mm | 4.134 in |
| Depth, packed | 65 mm | 2.559 in |
| Packaging quantity | 1 |
| Packaging Type | Box |
| Weight, gross | 0.036 kg | 0.079 lb |
| Weight, net | 0.022 kg | 0.049 lb |
