Commscope 78EZDF | 7-16 DIN Female EZfit for 7/8 in FXL-780, AVA5-50, and AVA5-50FX cable
Regular price
$22.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 78EZDF | 7-16 DIN Female EZfit for 7/8 in FXL-780, AVA5-5...
Regular price
$22.78
Unit price
Description
Description

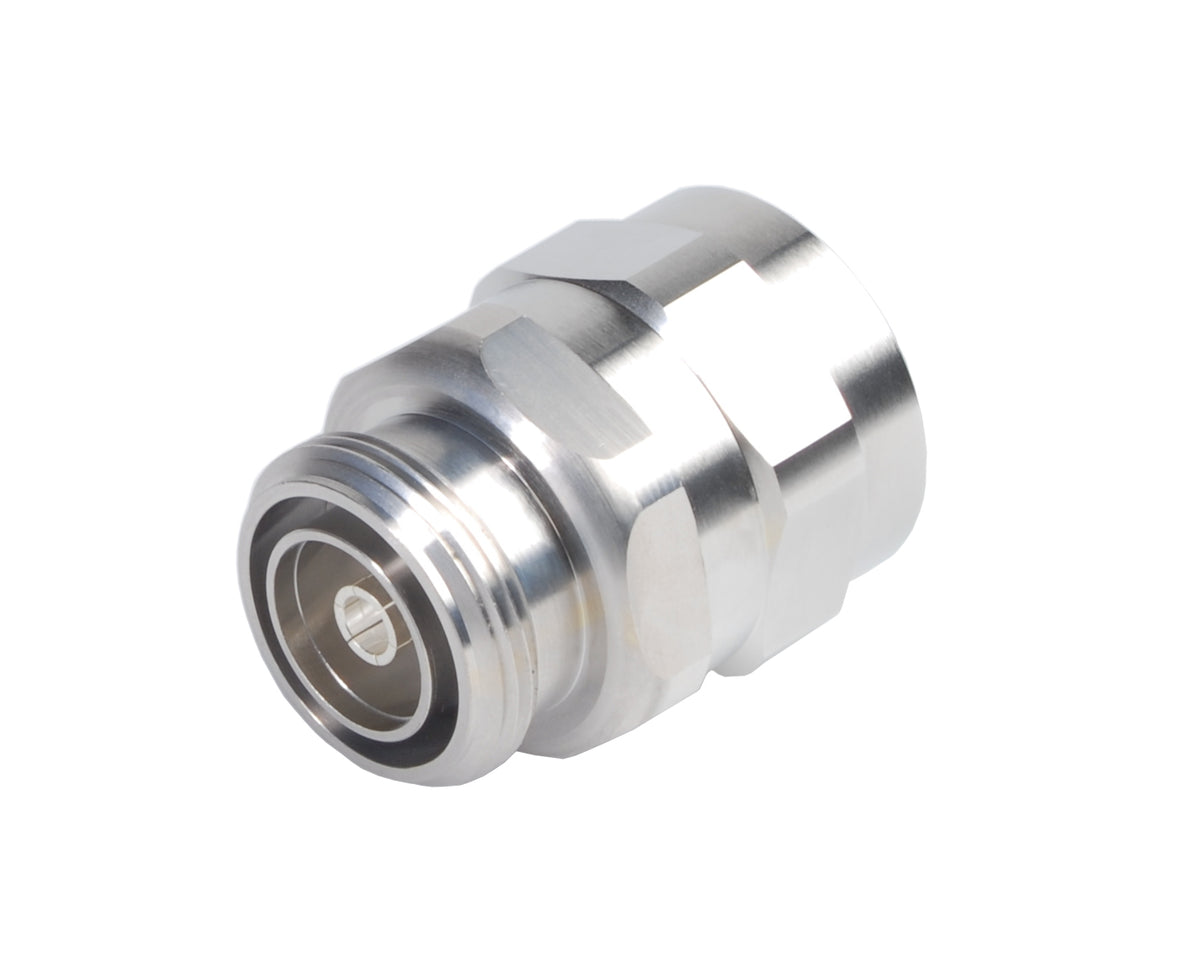

7-16 DIN Female EZfit for 7/8 in FXL-780, AVA5-50, and AVA5-50FX cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | EZfit |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | AVA5-50 | AVA5-50FX | FXL-780 |
| Harmonized System (HS) Code | 854420 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
Dimensions
| Length | 48.01 mm | 1.890 in |
|---|---|
| Diameter | 37.08 mm | 1.460 in |
| Nominal Size | 7/8 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -116 dBm @ 1800 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 1334.47 N | 300.000 lbf |
| Connector Retention Torque | 8.14 N-m | 72.001 in lb |
| Insertion Force | 200.17 N | 45.000 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
