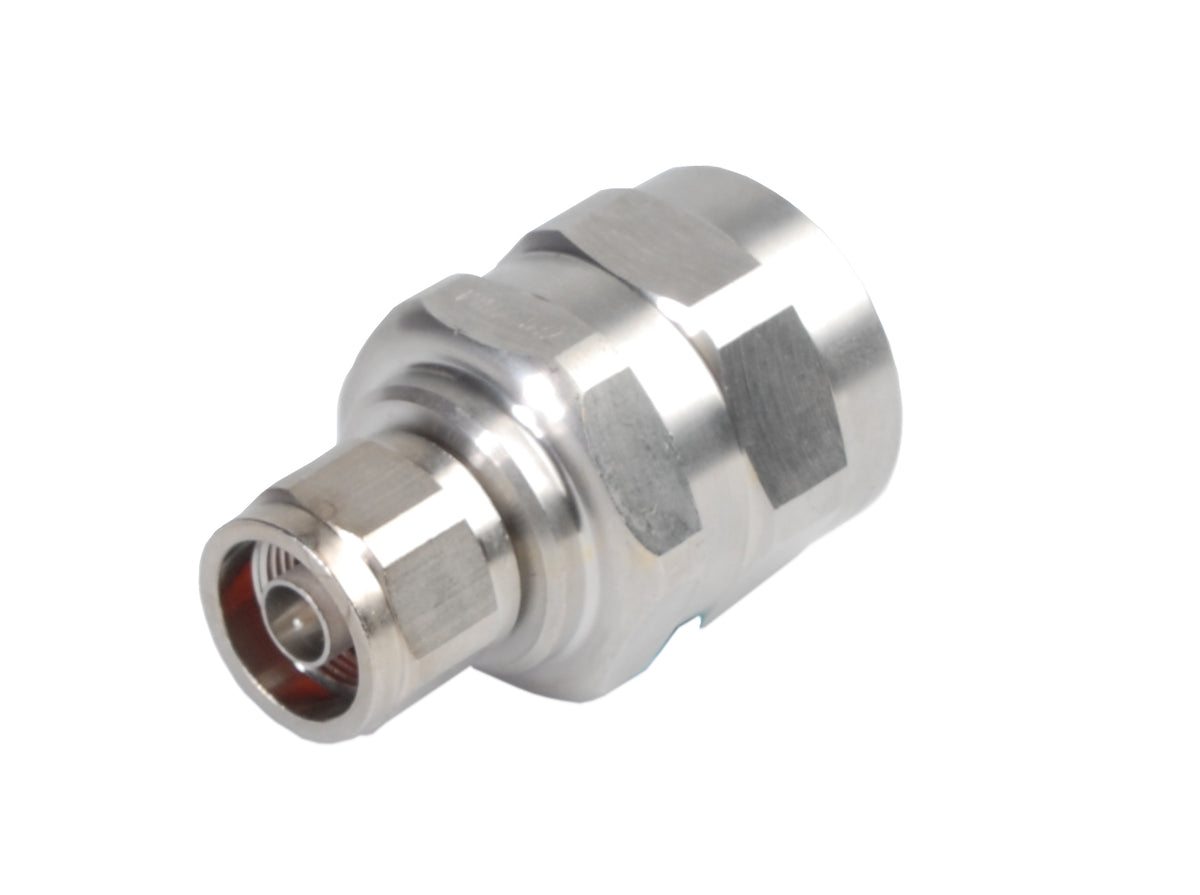

Commscope 78EZNM | Type N Male EZfit for 7/8 in FXL-780, AVA5-50, and AVA5-50FX cable

$24.60
Shipping calculated at checkout.

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Commscope 78EZNM | Type N Male EZfit for 7/8 in FXL-780, AVA5-50, and AVA5-50FX cable

Specifications

Outline Drawing

Click on image to enlarge.

Product Classification

Product TypeWireless and radiating connector
Product BrandEZfit
Product SeriesAVA5-50 / AVA5RK-50
Ordering NoteCommScope non-standard product

General Specifications

Body StyleStraight
Cable FamilyAVA5-50 / AVA5-50FX / FXL-780
Harmonized System (HS) Code854420 (Coaxial cable and other coaxial electric conductors)
Inner Contact Attachment MethodCaptivated
Inner Contact PlatingSilver
InterfaceN Male
Mounting AngleStraight
Outer Contact Attachment MethodClamp
Outer Contact PlatingTrimetal
PressurizableNo

Dimensions

Length57.91 mm / 2.280 in
Diameter37.08 mm / 1.460 in
Nominal Size7/8 in

Electrical Specifications

3rd Order IMD at Frequency-116 dBm/1800 MHz
3rd Order IMD Test MethodTwo +43 dBm carriers
Insertion Loss, typical0.05 dB
Cable Impedance50 ohm
Connector Impedance50 ohm
dc Test Voltage2000 V
Inner Contact Resistance, maximum2 mOhm
Insulation Resistance, minimum5000 mOhm
Operating Frequency Band0 – 5000 MHz
Outer Contact Resistance, maximum0.3 mOhm
Peak Power, maximum10 kW
RF Operating Voltage, maximum (vrms)707 V

Mechanical Specifications

Attachment Durability25 cycles
Connector Retention Tensile Force1334.47 N / 300.000 lbf
Connector Retention Torque8.14 N-m / 72.001 in lb
Coupling Nut Proof Torque4.52 N-m / 39.997 in lb
Coupling Nut Retention Force444.82 N / 100.000 lbf
Coupling Nut Retention Force MethodMIL-C-39012C-3.25, 4.6.22
Insertion Force66.72 N / 15.000 lbf
Insertion Force MethodMIL-C-39012C-3.12, 4.6.9
Interface Durability500 cycles
Interface Durability MethodIEC 61169-16:9.5
Mechanical Shock Test MethodMIL-STD-202F, Method 213B, Test Condition C

Environmental Specifications

Operating Temperature-40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature20 °C / 68 °F
Average Power, Ambient Temperature40 °C / 104 °F
Corrosion Test MethodMIL-STD-1344A, Method 1001.1, Test Condition A
Immersion Depth1 m
Immersion Test MatingMated
Immersion Test MethodIEC 60529:2001, IP68
Moisture Resistance Test MethodMIL-STD-202F, Method 106F
Vibration Test MethodIEC 60068-2-6
Water Jetting Test MatingMated
Water Jetting Test MethodIEC 60529:2001, IP66

Packaging and Weights

Weight, net152.89 g / 0.337 lb

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance
