Brand: CommScope
|
SKU:
10070311

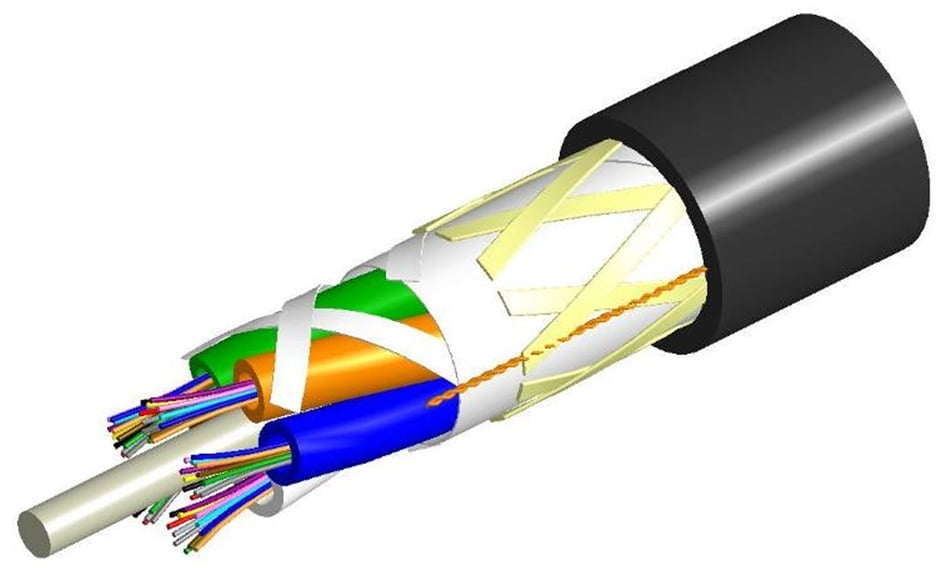

CommScope 810009740/DB | Fiber OSP cable, LightScope ZWP All-Dielectric Self-Supporting, 48 fibers, 2.5mm Gel-filled Tubes, Singlemode
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 810009740/DB | Fiber OSP cable, LightScope ZWP All-Dielec...
Regular price
$1.46
Unit price
Description
Description
CommScope 810009740/DB | Fiber OSP cable, LightScope ZWP All-Dielectric Self-Supporting, 48 fibers, 2.5mm Gel-filled Tubes, Singlemode
Specifications
Specifications
CommScope - 810009740/DB - Product Categories
- Cables
- Fiber Optic Cables
- Outside Plant Cables
CommScope - 810009740/DB - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber OSP cable |
| Product Series | S-LN |
CommScope - 810009740/DB - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Fiber OSP cable, LightScope ZWP All-Dielectric Self-Supporting, 48 fibers, 2.5mm Gel-filled Tubes, Singlemode G.652.D and G.657.A1, Feet jacket marking, Black jacket color |
| Model Number | 810009740/DB | S-048-LN-8W-F12NS/25G/S |
| Cable Type | Stranded loose tube |
| Construction Type | Non-armored |
| Subunit Type | Gel-filled |
| Filler, quantity | 2 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 48 |
CommScope - 810009740/DB - Additional Information
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 11.26 mm | 0.443 in |
| Material Specifications | - |
| Jacket Material | PE |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 169 mm | 6.654 in |
| Minimum Bend Radius, unloaded | 113 mm | 4.449 in |
| Tensile Load, long and short term | See Sag and Tension tables in Product Documentation section |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 | IEEE-1222 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 | IEEE-1222 |
| Impact | 2.94 N-m | 26.021 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 | IEEE-1222 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 | IEEE-1222 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 | IEEE-1222 |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1 | G.652.D and G.657.A1 |
